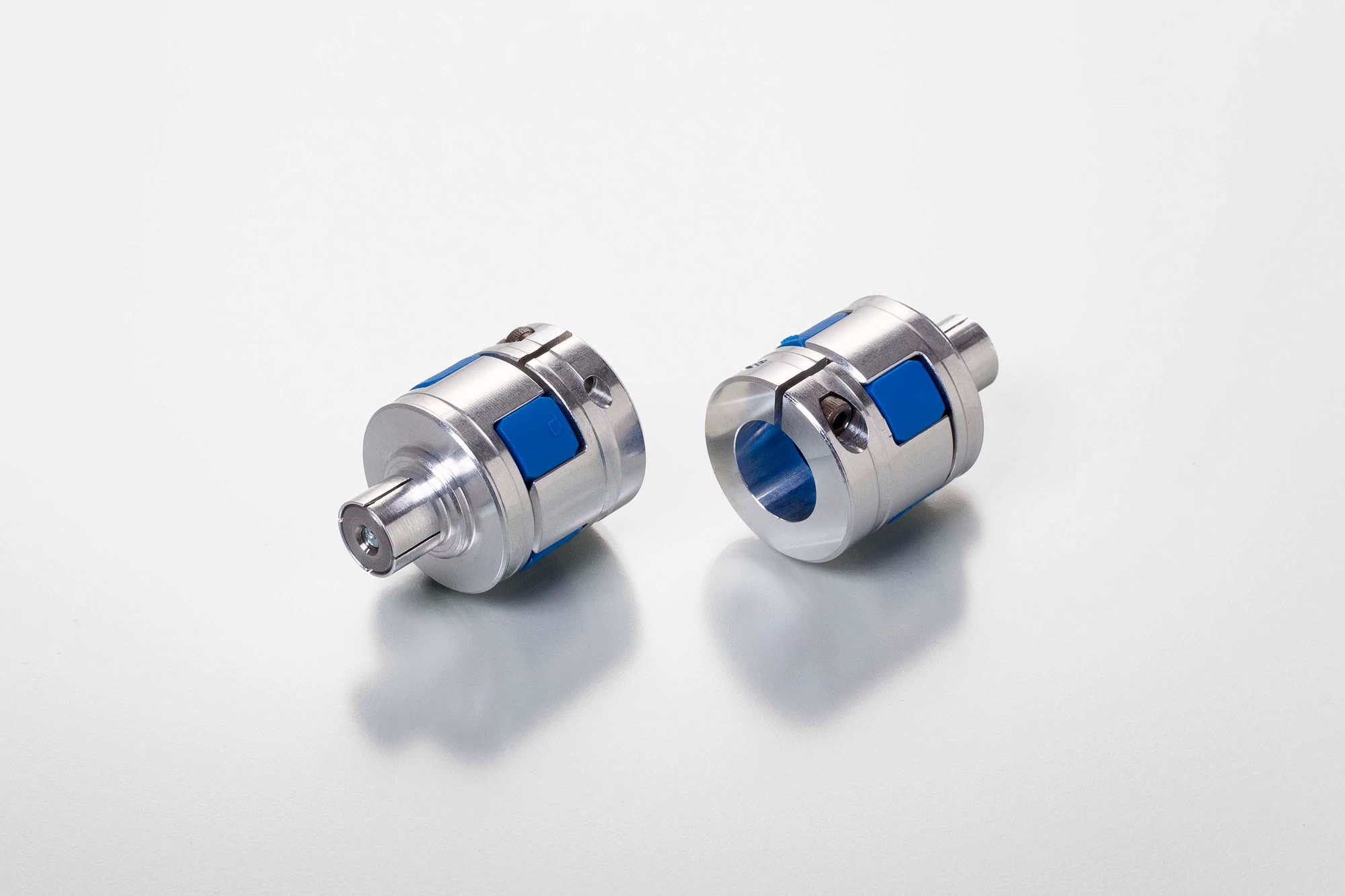

Synchronising Set GSF 8 40 R10
2 coupling halves D30/D16, Al 2 expanding hub coupling halves D30/D12, St and Al 2 coupling inserts D30, PU, blue Tightening torque, expanding hub screw: 2.8 Nm Tightening torque, clamping hub screw: 2 Nm
Scope of Delivery
2 coupling halves D30/D16, Al 2 expanding hub coupling halves D30/D12, St and Al 2 coupling inserts D30, PU, blue Tightening torque, expanding hub screw: 2.8 Nm Tightening torque, clamping hub screw: 2 Nm
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 91 g |
| Delivery unit | 1 set |
Synchronising Set GSF 8 40 R10 combines two Linear Units GSF 8 40 (0.0.655.98) to form one functional unit. A synchroniser shaft transmits the torque of the motor to both units.
A suitable Tube St (sawn to length) turns the Synchronising Set into a complete synchroniser shaft.
The permissible speed of the Synchroniser Shaft depends on its length. n = Rotational speed of the Synchroniser Shaft a = Distance between Linear Units
