| Butt Fastener D30-90° R25, internal, Connector M6-12 | CADPDFRFQ |
Preview
Butt Fastener D30-90° R25, internal, Connector M6-12
2 butt fastener halves, die-cast Al, natural 2 flanges D30/D6-5, St, bright zinc-plated 2 Hexagon Socket Head Cap Screws DIN 912 M6x20, St, bright zinc-plated 2 hexagon nuts DIN 934-M6-I8I, St, bright zinc-plated 2 washers, St, bright zinc-plated 2 Countersunk Screws DIN 7991 M6x16, St, bright zinc-plated

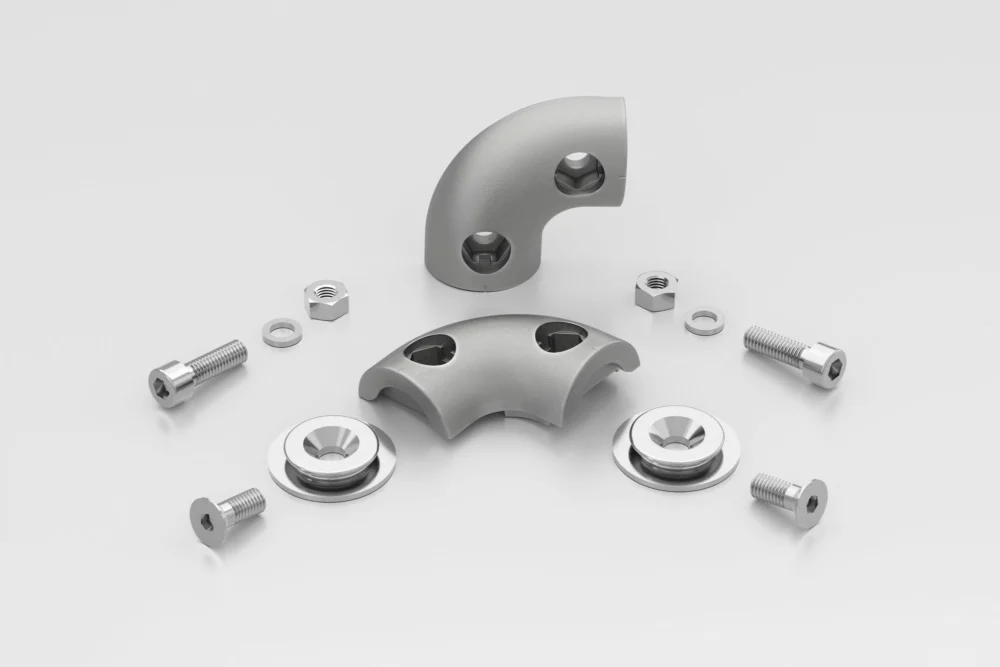

Scope of Delivery
2 butt fastener halves, die-cast Al, natural 2 flanges D30/D6-5, St, bright zinc-plated 2 Hexagon Socket Head Cap Screws DIN 912 M6x20, St, bright zinc-plated 2 hexagon nuts DIN 934-M6-I8I, St, bright zinc-plated 2 washers, St, bright zinc-plated 2 Countersunk Screws DIN 7991 M6x16, St, bright zinc-plated
Properties
| Torque | M = 10 Nm |
|---|---|
| Line | Line D30 |
| ESD-safe | Yes |
| Weight | m = 113.5 g |
| Delivery unit | 1 set |
Compact Butt Fastener D30-90° R25, internal, Connector M6-12 connects two Profiles 6 D30 at an angle of 90° with a rounded outer corner. The fastener flanges are screwed into the core bores of the Profiles 6 D30. The clamping jaws of the butt fastener encompass the two flange disks to create a smooth transition between the fastener and Profile Tubes.

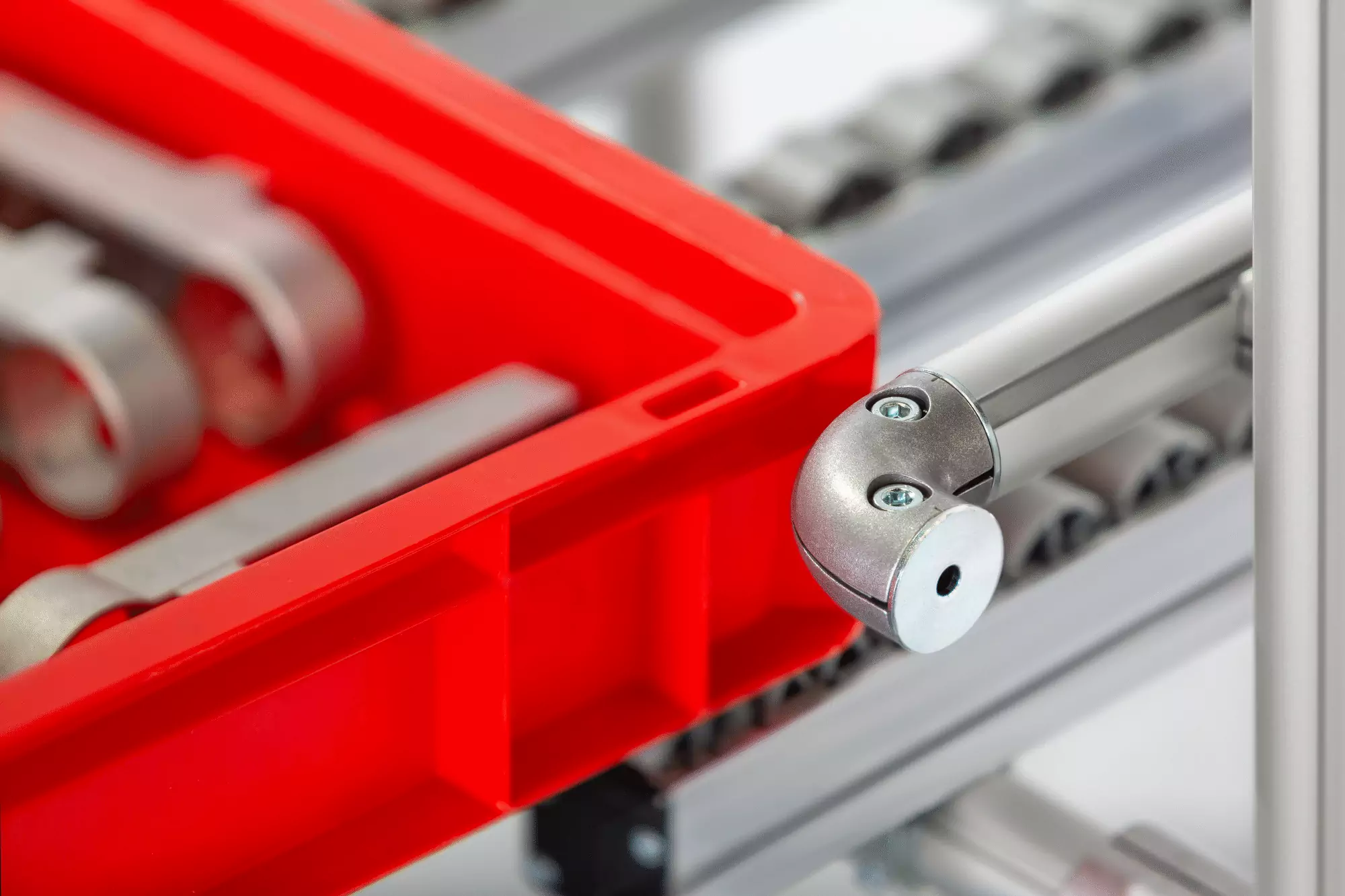

Butt Fastener D30-90° R25, internal, Connector M6-12 can be used on conveyor lines, where it can be fitted to a Profile 6 D30 as edge protection and a rounded insertion aid.
Fz = 500 N Mx = 5 Nm My = 20 Nm Mz = 5 Nm
