| Slide Set GSF 8 80×40 | CADPDFRFQ |

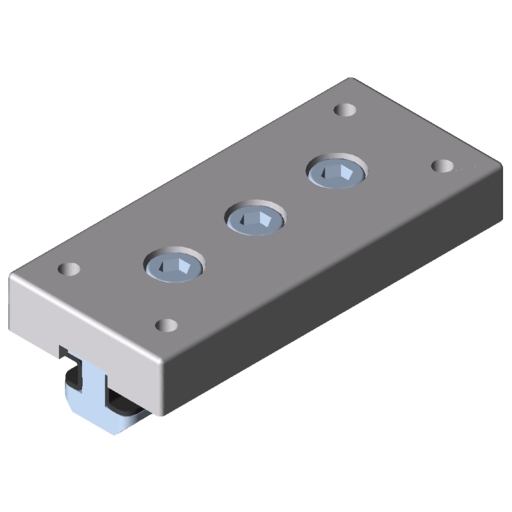

Preview
Slide Set GSF 8 80×40
Carriage plate GSF 8 80×40, Al, natural T-Slot Slider 8 80×40 3 Hexagon Socket Head Cap Screws DIN 6912-M6x20, St, bright zinc-plated 3 hexagon nuts ISO 4035-M6, St, bright zinc-plated
Scope of Delivery
Carriage plate GSF 8 80x40, Al, natural T-Slot Slider 8 80x40 3 Hexagon Socket Head Cap Screws DIN 6912-M6x20, St, bright zinc-plated 3 hexagon nuts ISO 4035-M6, St, bright zinc-plated
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 173 g |
| Delivery unit | 1 set |

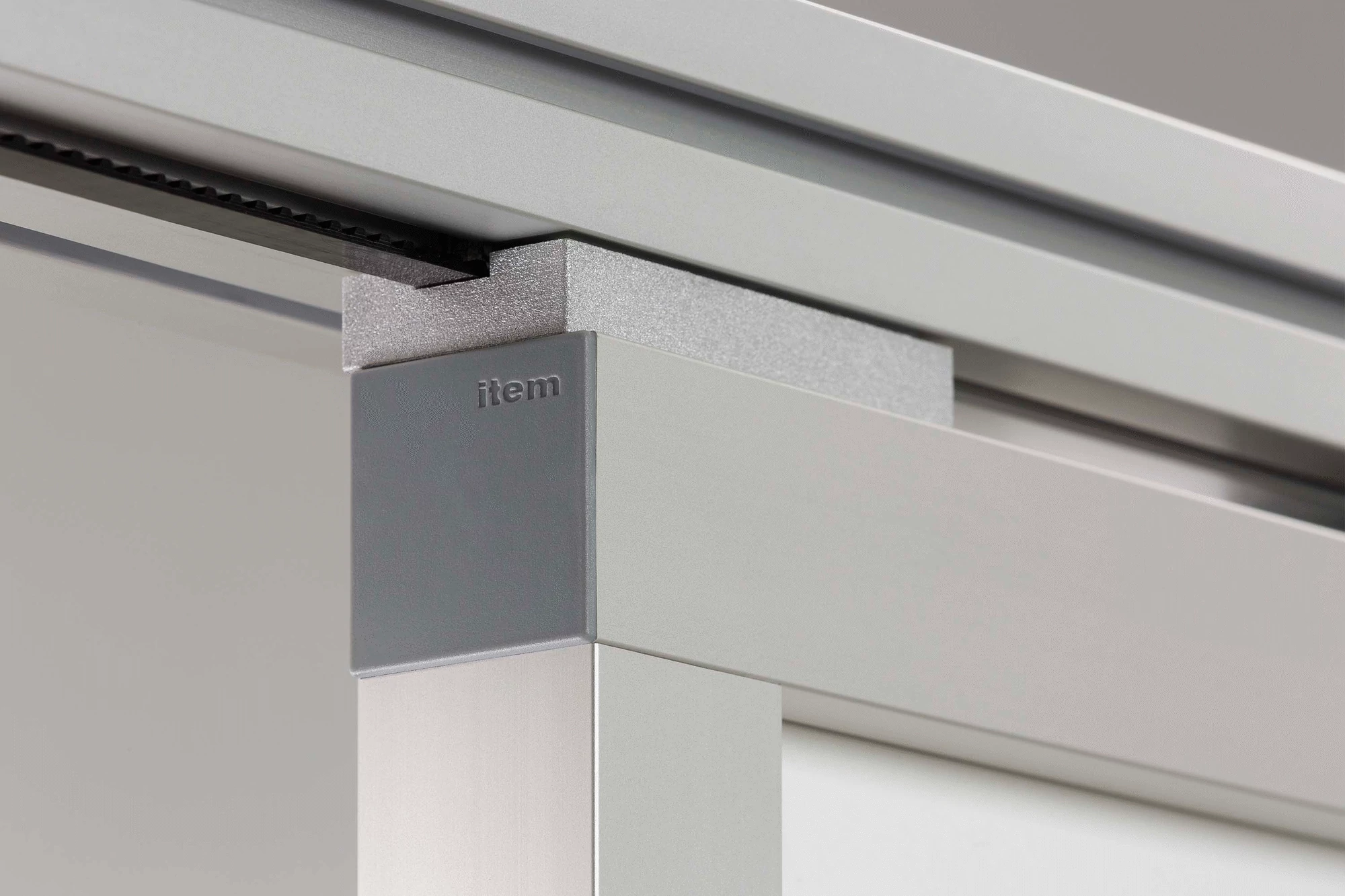

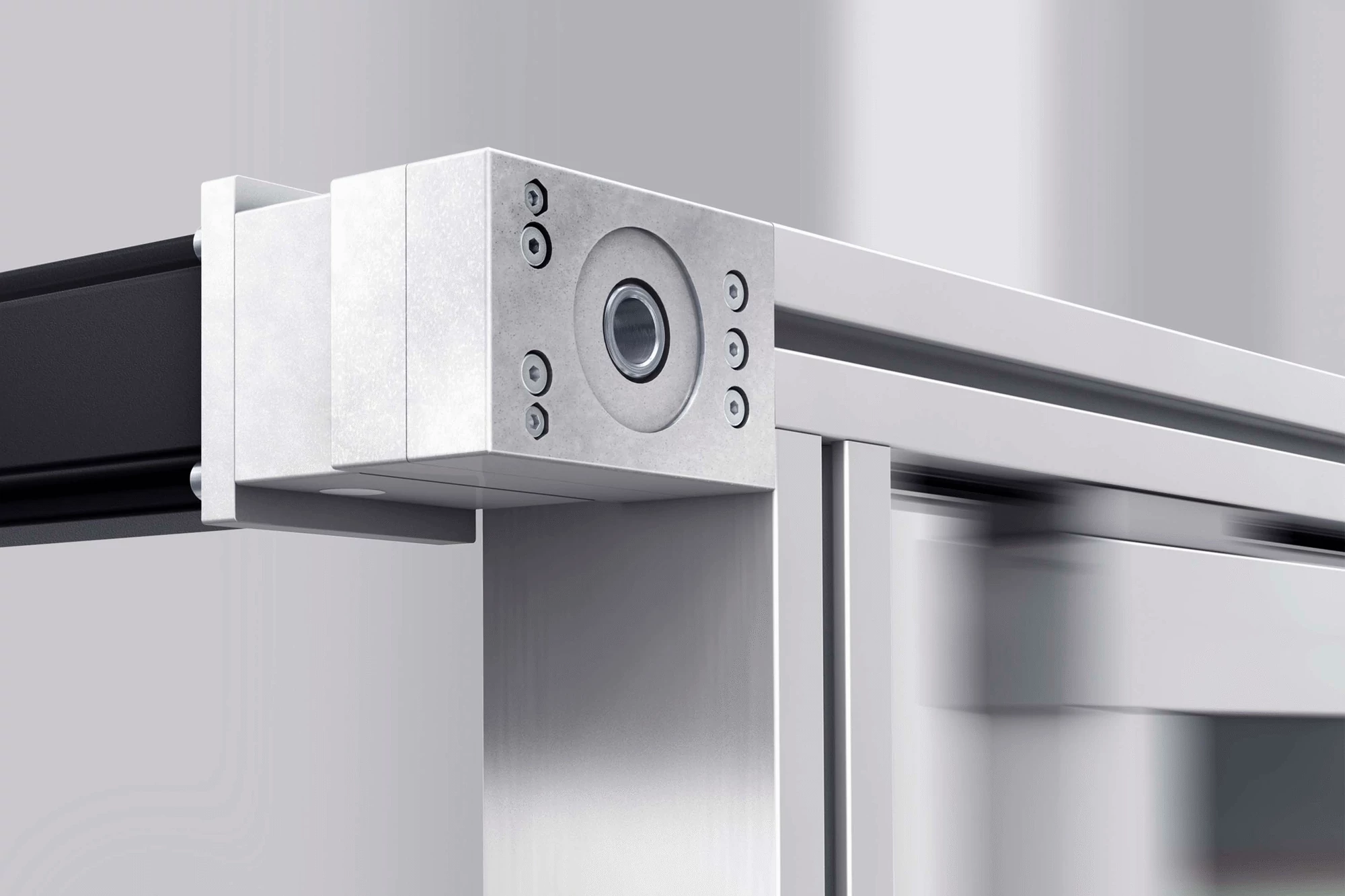

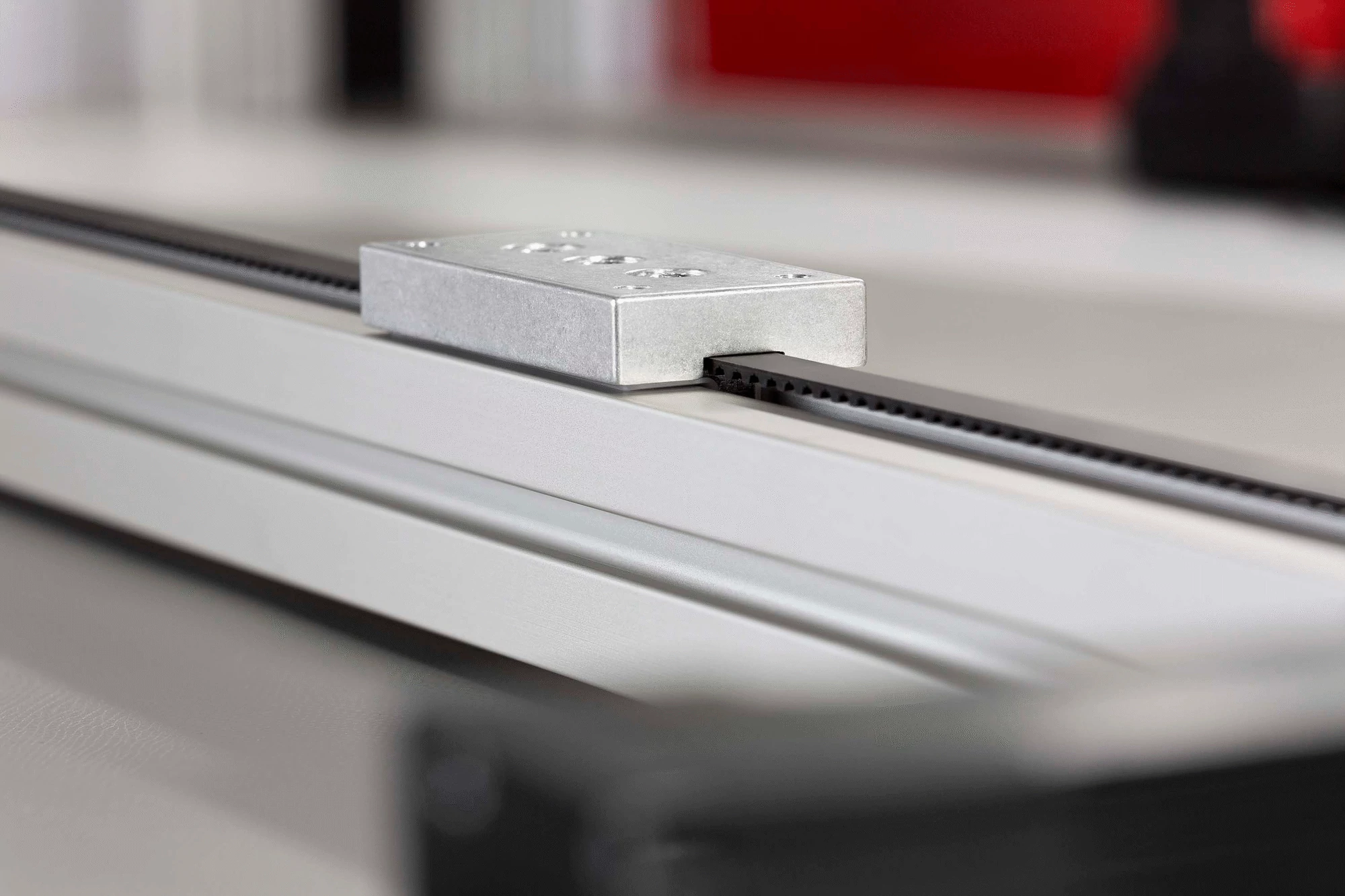

The space-saving carriage features a sliding shoe made of high-performance plastic. The solution thus requires no lubricants, is maintenance-free and uses a Line 8 profile groove as a guide. This reduces the number of components required. A timing belt can be installed between the carriage plate and T-Slot Slider in a space-saving arrangement. When used with Drive Unit GSF 8 40 R10, it produces linear units that can be installed in very small spaces. Slide Set GSF 8 80x40 can also be used as a slide guide in a Line 8 profile groove without a timing-belt drive.
