Double Panel Profile 8 Al, natural
Configurated product data
Nothing generated yet
You must configurate your product below before requesting quoteProperties
| line 8 | line 8 |
|---|---|
| ESD-safe | Yes |
| Cross-sectional area | A = 1.62 cm2 |
| Weight | m = 0.44 kg/m |
| Delivery unit | cut-off max. 3000 mm |
| Material | Al, anodized |
| Colour | natural |

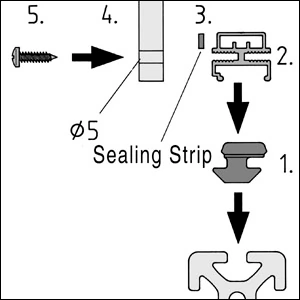

Double Panel Profile 8 Al is ideal for profile constructions with Universal Fasteners and / or Sealing Strip 6x3 sk is to be used.
Disassembling Double Panel Profile 8 Al. Fastening on the profile groove via Clip 8 PA.

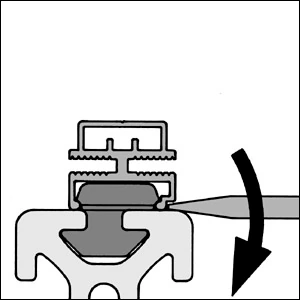

Disassembling Double Panel Profile 8 Al.

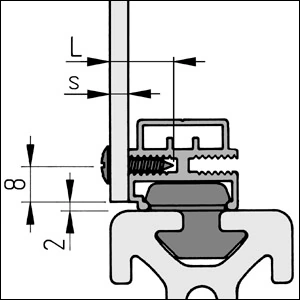

Matching to the wall thickness of the Panel Element by adjusting the positions of Double Panel Profile 8 Al and Clip 8 PA.
Double Panel Profile in conjunction with Sealing Strip 6x3 sk when used for double-walled constructions.
Double Panel Profile in conjunction with Lip Seal 6x3 sk and Sound-Insulating Material 20 mm.

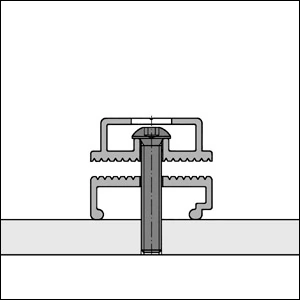

Double Panel Profile 8 Al can also be screwed directly onto a panel element etc.
