Profile 8 40×40 light, black
Configurated product data
Nothing generated yet
You must configurate your product below before requesting quoteProperties
| line 8 | line 8 |
|---|---|
| ESD-safe | Yes |
| Cross-sectional area | A = 6.46 cm2 |
| Moment of Inertia, torsional | It = 1.36 cm4 |
| Moment of Inertia, x-axis | Ix = 9 cm4 |
| Moment of Inertia, y-axis | Iy = 9 cm4 |
| Weight | m = 1.74 kg/m |
| Delivery unit | cut-off max. 6000 mm |
| Material | Al, anodized |
| Permissible groove extraction force | F = 2500 N |

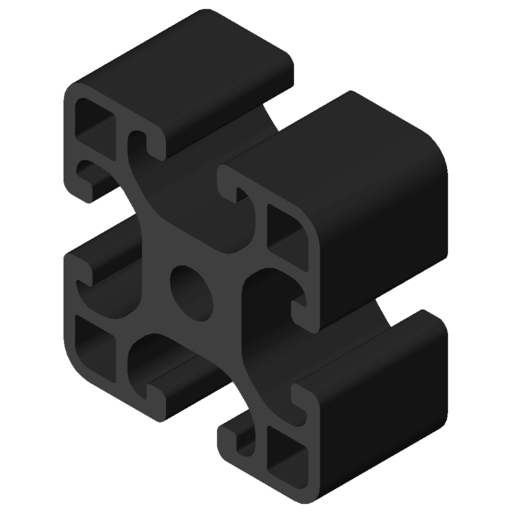

Profile 8 40x40 light, black is a universal construction profile made of high-quality black anodized aluminium in the modular dimension of Line 8. This weight-reduced aluminium profile in the light design variant from item features four open Line 8 profile grooves.
The profiles in Line 8 are available in standard, light and economy (E) design variants. Due to additional cavities, a Profile 8 40x40 light weighs around 30 percent less than a Profile 8 40x40 in the same length. A Profile 8 40x40 E weighs approximately 45 percent less. The area moments of inertia against profile deflection and the maximum groove load-bearing capacity of the selected profile must be given due consideration in respect of the loads involved.
