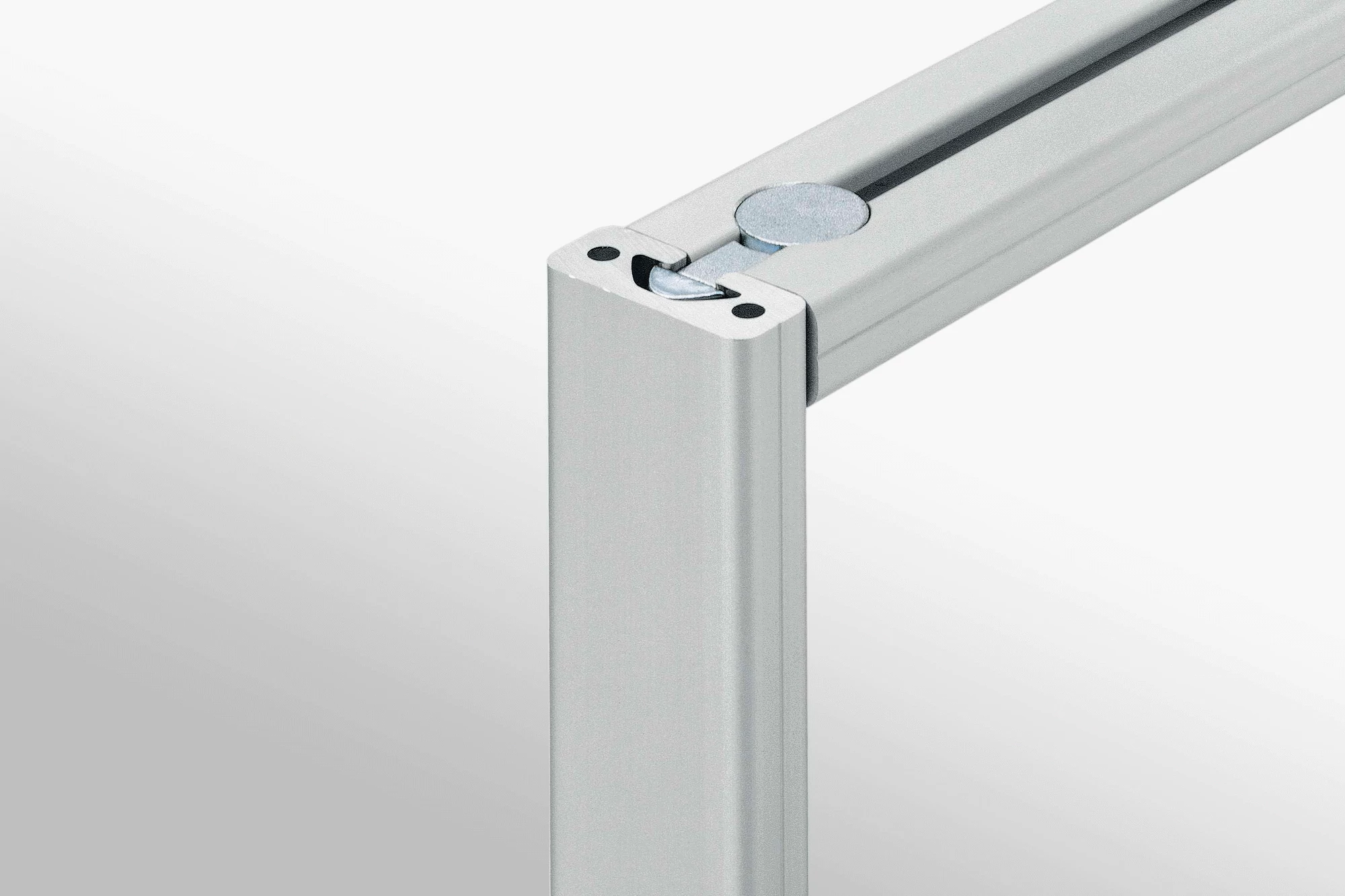

Profile 8 40×16, natural
Configurated product data
Nothing generated yet
You must configurate your product below before requesting quoteProperties
| line 8 | line 8 |
|---|---|
| ESD-safe | Yes |
| Cross-sectional area | A = 4.24 cm2 |
| Moment of Inertia, torsional | It = 0.97 cm4 |
| Moment of Inertia, x-axis | Ix = 1.05 cm4 |
| Moment of Inertia, y-axis | Iy = 6.89 cm4 |
| Weight | m = 1.13 kg/m |
| Delivery unit | cut-off max. 6000 mm |
| Material | Al, anodized |
| Permissible groove extraction force | F = 5000 N |
Profiles 8 40x16 and 40x16 E are ideal for attaching elements such as valves or limit switches.
