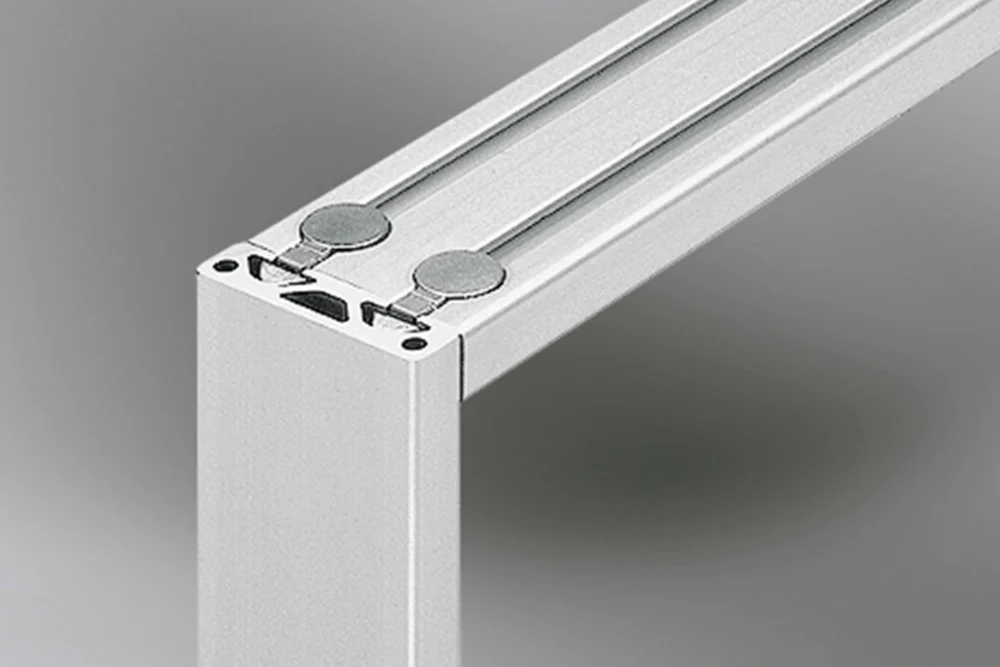

Profile 5 40×10, natural
Configurated product data
Nothing generated yet
You must configurate your product below before requesting quoteProperties
| line 5 | line 5 |
|---|---|
| ESD-safe | Yes |
| Cross-sectional area | A = 2.39 cm2 |
| Moment of Inertia, torsional | It = 0.27 cm4 |
| Moment of Inertia, x-axis | Ix = 0.24 cm4 |
| Moment of Inertia, y-axis | Iy = 3.63 cm4 |
| Weight | m = 0.65 kg/m |
| Delivery unit | cut-off max. 3000 mm |
| Material | Al, anodized |
| Permissible groove extraction force | F = 500 N |
