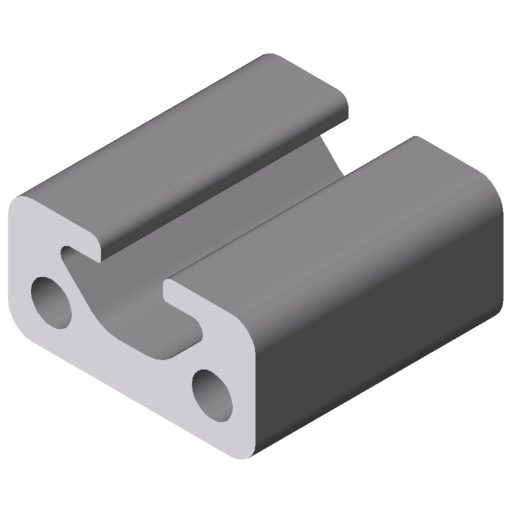

Profile 5 20×10, natural
Configurated product data
Nothing generated yet
You must configurate your product below before requesting quoteProperties
| line 5 | line 5 |
|---|---|
| ESD-safe | Yes |
| Cross-sectional area | A = 1.29 cm2 |
| Moment of Inertia, torsional | It = 0.1 cm4 |
| Moment of Inertia, x-axis | Ix = 0.12 cm4 |
| Moment of Inertia, y-axis | Iy = 0.53 cm4 |
| Weight | m = 0.35 kg/m |
| Delivery unit | cut-off max. 3000 mm |
| Material | Al, anodized |
| Permissible groove extraction force | F = 500 N |

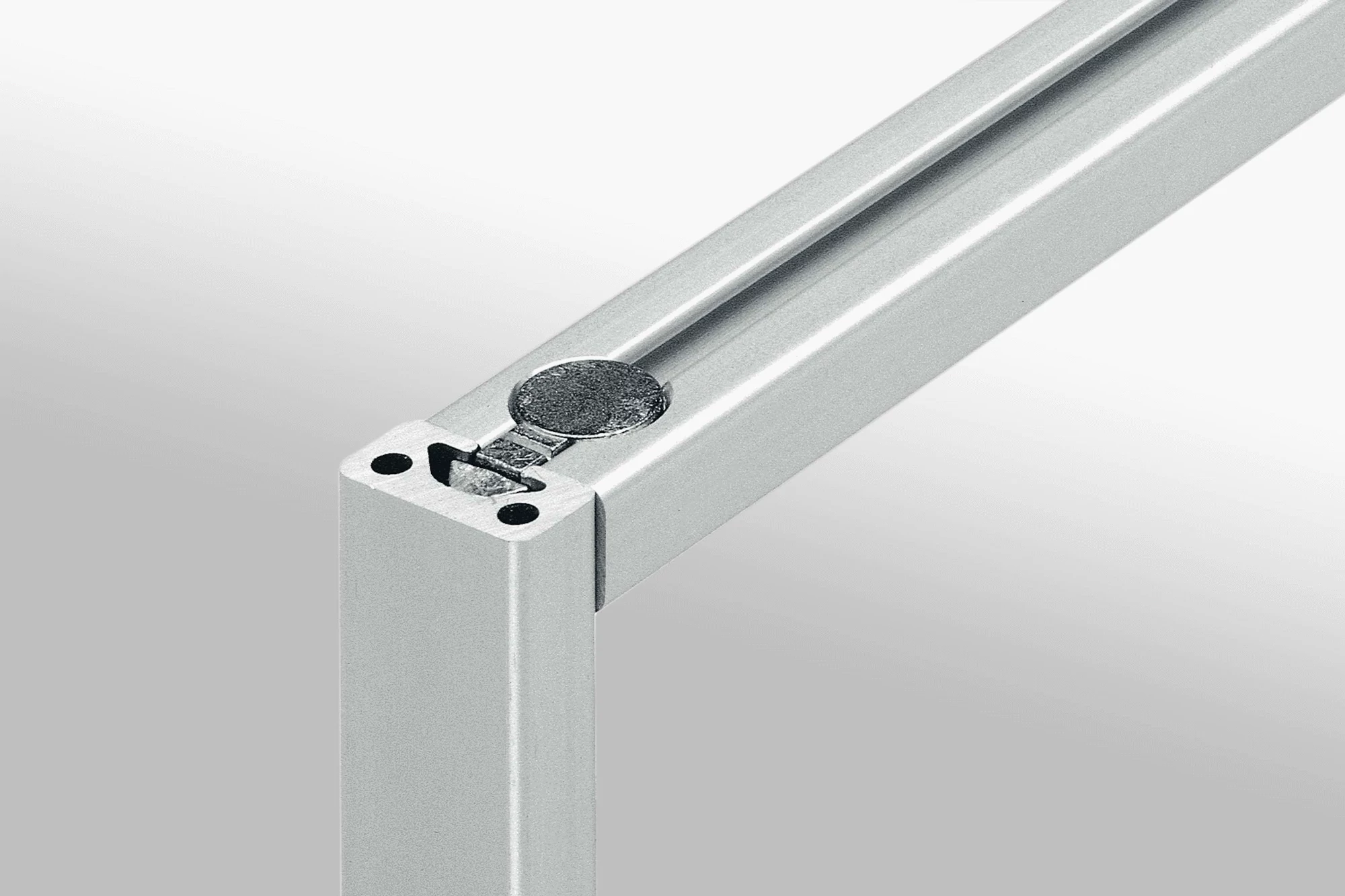

Profile 5 20x10 can be used as a grip rail or edge strip. Profile 5 40x10 and 80x14 can be used as a lightweight clamping and mounting surface or as a supporting profile for the Bearing Units of linear slides.
