Panelklämlist 8 4-6mm, grå liknande RAL 7042
Konfigurerad produktdata
Inget genererat ännu
Du måste konfigurera din produkt nedan innan du begär offert
Art. nr: 0.0.495.03
Kategorier: Fästanordningar för Line XMS-paneler, Panel-clamping strips
Etikett: Meter
Properties
| linje 8 | linje 8 |
|---|---|
| ESD-safe | Nej |
| Vikt | m = 121 g/m |
| Delivery unit | cut-off max. 3000 mm |
| Material | PP/TPE |
| Colour | grå liknande RAL 7042 |
| cleanroom suitability | Ja |

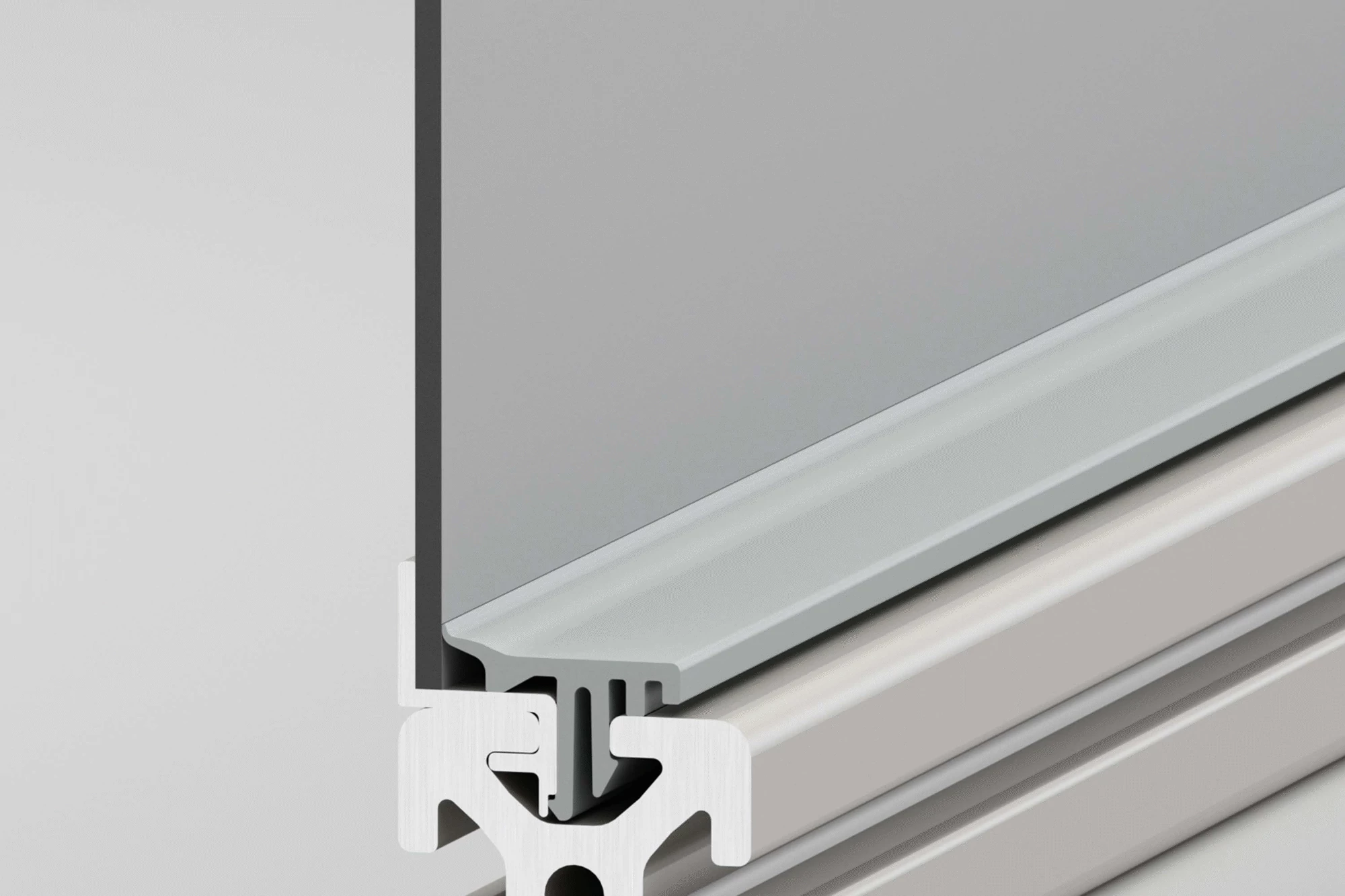

Panel-Clamping Strips 8 are ideal for retrofitting panel elements (preferably made of Acrylic Glass, PET-G or Polycarbonate) into a closed profile frame. Apart from straight saw cuts, no further machining of the panel element or Panel-Clamping Strips is required if the profile frame is connected with Central-Fastening Sets 8.
When an Automatic-Fastening Set is installed at the end of a profile, Panel-Clamping Strip 8 Al and Panel-Clamping Strip 8 made of plastic both need to have 40 mm trimmed from them so they can be fitted into the Line 8 groove.
