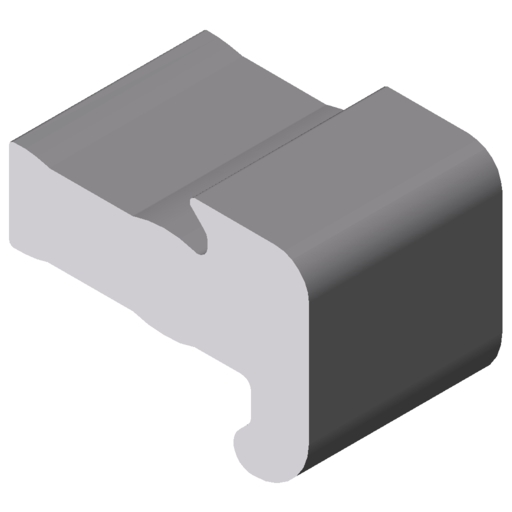

Guide Rail Mounting Profile PS 4-25, natural

Configurated product data

Nothing generated yet

You must configurate your product below before requesting quote
Art. nr: 0.0.443.17 Kategorier: , Etikett:
Set CAD-format
0.0.443.17

Preview

Properties

line 8line 8
ESD-safeNo
Weightm = 940 g/m
Delivery unit1 pce., length 2000 mm
MaterialAl, anodized
Colournatural

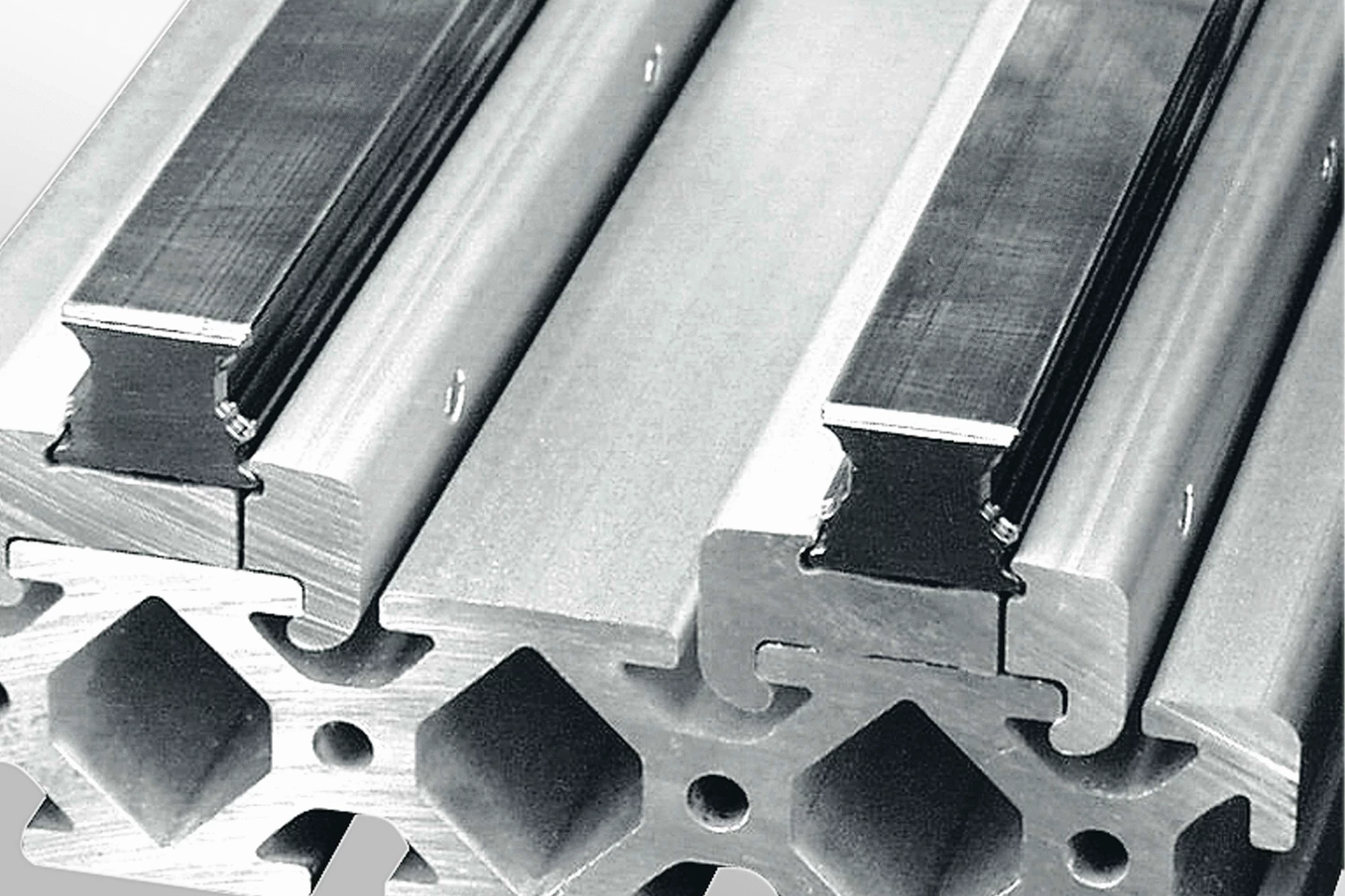

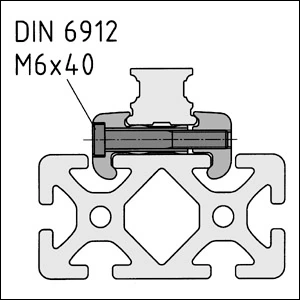

Linear Guide Rail PS 4-25 uses fastening profiles to create a clamping effect. A Guide Rail Mounting Profile, a Guide Rail Clamping Profile and the appropriate number of Hexagon Socket Head Cap Screws DIN 6912-M6x40 are required to mount each guide rail. The screws connect the two components of the linear guide system while the fastening profiles do not need to be machined. Recommended tightening torque for the screws M A = 10 Nm .
