Timing Belt Tensioner, Fixing Block 8 R25

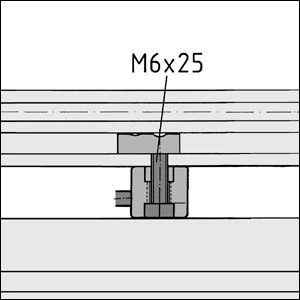

Fixing Block, cast steel, black Cap Screw DIN 912-M6x25, St, bright zinc-plated T-Slot Nut 8 St M6, bright zinc-plated 2 hexagon nuts DIN 985-M6, self-locking, St, bright zinc-plated 2 Cap Screws DIN 912-M6x80, St, bright zinc-plated
Scope of Delivery
Fixing Block, cast steel, black Cap Screw DIN 912-M6x25, St, bright zinc-plated T-Slot Nut 8 St M6, bright zinc-plated 2 hexagon nuts DIN 985-M6, self-locking, St, bright zinc-plated 2 Cap Screws DIN 912-M6x80, St, bright zinc-plated
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 128 g |
| Delivery unit | 1 set |
When fastening and tensioning the Timing Belt on a sliding carriage or support profile (using Counter-Reverse Unit 8) a Tensioning Block is required for each end of the Timing Belt. The number of Fixing Blocks is determined by the application.
Fastening and tensioning the Timing Belt on a sliding carriage using Tensioning Blocks and Fixing Block and the appropriate bolts. Where high loads are involved, Tensioning Block 8 and Fixing Block 8 will need to be pinned (dowel ISO 2338- ⌀ 6 mm ). The position of the dowels is indicated by the prepared bores ⌀ 5.5 mm.
