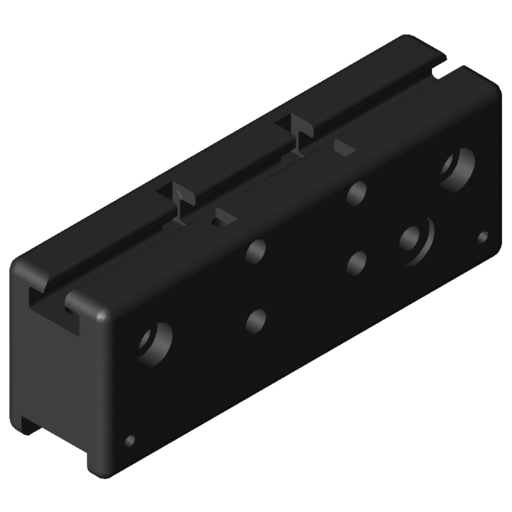

Timing-Belt Counter-Reverse Unit 8 R25
Counter-Reverse Unit, Al, black Frictional moment with 1‰ pre-tensioning of the Timing Belt: M R = 0.30 Nm Timing Belt length in Counter-Reverse Unit: 2 x 105 mm
Art. nr: 0.0.362.00
Kategorier: Timing-belt counter-reverse units, Timing-belt counter-reverse units
Etikett: Static
Scope of Delivery
Counter-Reverse Unit, Al, black Frictional moment with 1‰ pre-tensioning of the Timing Belt: M R = 0.30 Nm Timing Belt length in Counter-Reverse Unit: 2 x 105 mm
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 770 g |
| Delivery unit | 1 pce. |
If the Counter-Reverse Unit is used, the Timing-Belt Tensioner is employed to attach and tension the Timing Belt on the supporting profile.
Possible connection to Timing-Belt Reverse Unit 8 40 R25.
Possible connection to Timing-Belt Reverse Unit 8 80 R25.

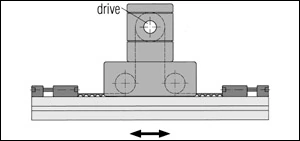

Moving support profile with stationary carriage unit and drive.

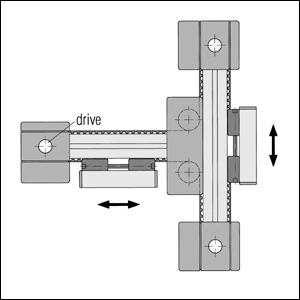

Carriages arranged at right angles with central drive.
The Line 8 groove on the rear of the Timing-Belt Counter-Reverse Unit can be used for fastening the Timing-Belt Reverse Units and Proximity Switch M8.
