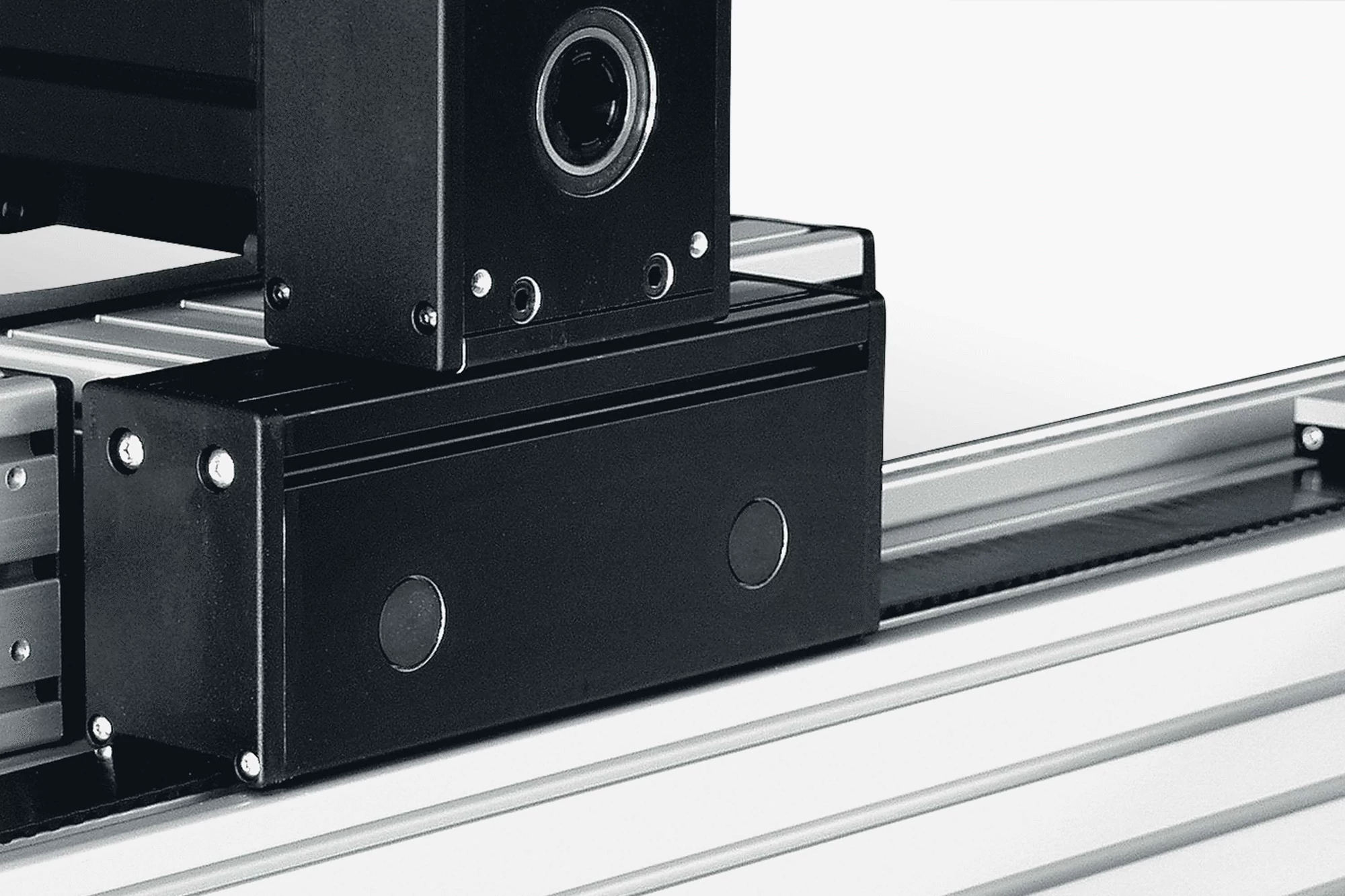

Timing-Belt Counter-Reverse Unit 8 80 R50
Housing Al, black 2 caps, PA, black 2 ball-bearing reverse rollers, for Timing Belt width 50 mm Frictional moment with 1‰ pre-tensioning of the Timing Belt: M R = 0.75 Nm Timing Belt length in the Counter-Reverse Unit: 2 x 202 mm
Art. nr: 0.0.362.07
Kategorier: Timing-belt counter-reverse units, Timing-belt counter-reverse units
Etikett: Static
Scope of Delivery
Housing Al, black 2 caps, PA, black 2 ball-bearing reverse rollers, for Timing Belt width 50 mm Frictional moment with 1‰ pre-tensioning of the Timing Belt: M R = 0.75 Nm Timing Belt length in the Counter-Reverse Unit: 2 x 202 mm
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 4.3 kg |
| Delivery unit | 1 pce. |
Timing-Belt Counter-Reverse Unit 8 80 R50 redirect the Timing Belt R50 T10, at 90° to the moving profile, with an emergence dimension of 80 mm . The driving force is then provided with a Timing-Belt Reverse Unit 8 80 R50 II.
