| Knuckle Foot D80, M16x100, stainless | CADPDFRFQ |
Preview
Knuckle Foot D80, M16x100, stainless
Spindle, St, stainless Foot plate, St, stainless Hexagon nut DIN 934-M16, St, stainless
Scope of Delivery
Spindle, St, stainless Foot plate, St, stainless Hexagon nut DIN 934-M16, St, stainless
Properties
| Property | stainless |
|---|---|
| ESD-safe | Yes |
| Weight | m = 435 g |
| Force max | Fmax. = 20000 N |
| Delivery unit | 1 pce. |
| Angle | α = 7 ° |

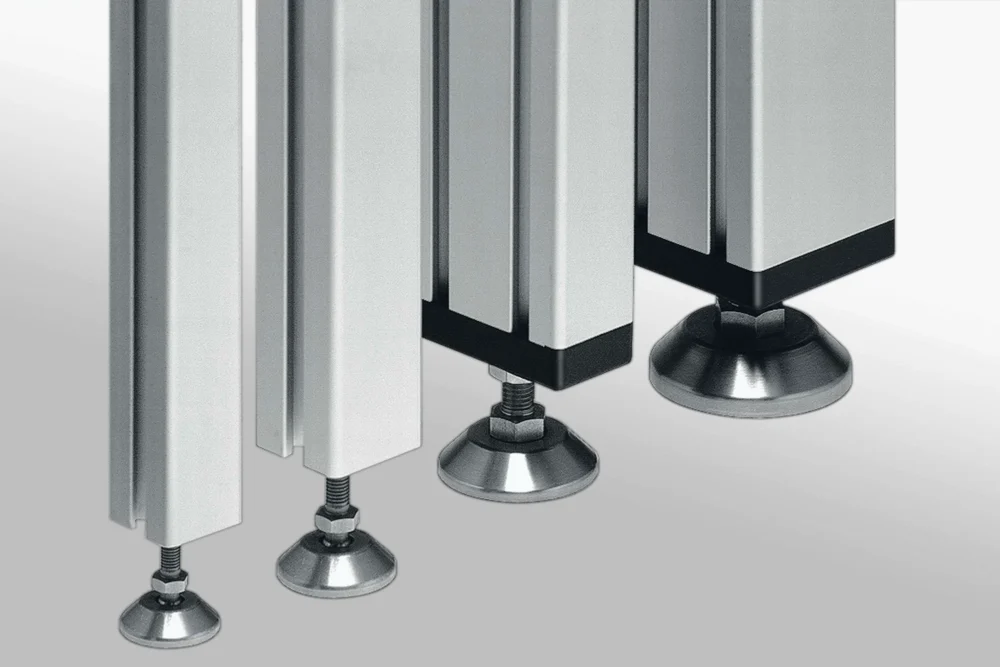

Knuckle feet in stainless steel for use in areas that are at risk of corrosion. The fact that they are electrically conductive means that they can also be used for desks and devices in areas that are susceptible to ESD. Note: The protective conductor of a machine or device must not be connected via a conductive knuckle foot. An additional Earthing Terminal (Section 6.1 Electrical Discharge) with a separate cable is required for this purpose.
A ball and socket joint compensates for slopes.
