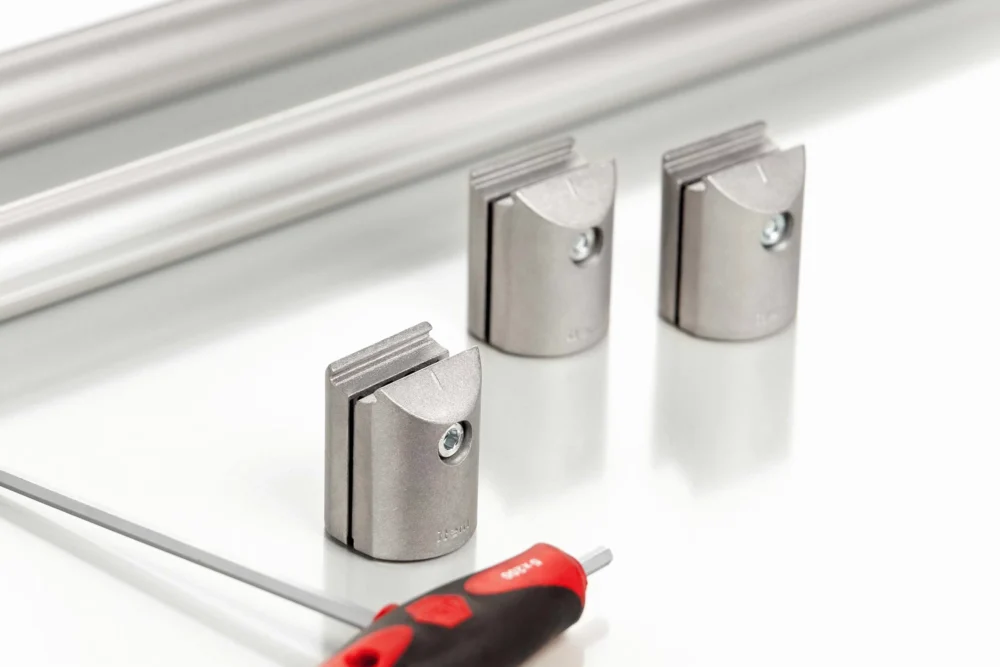

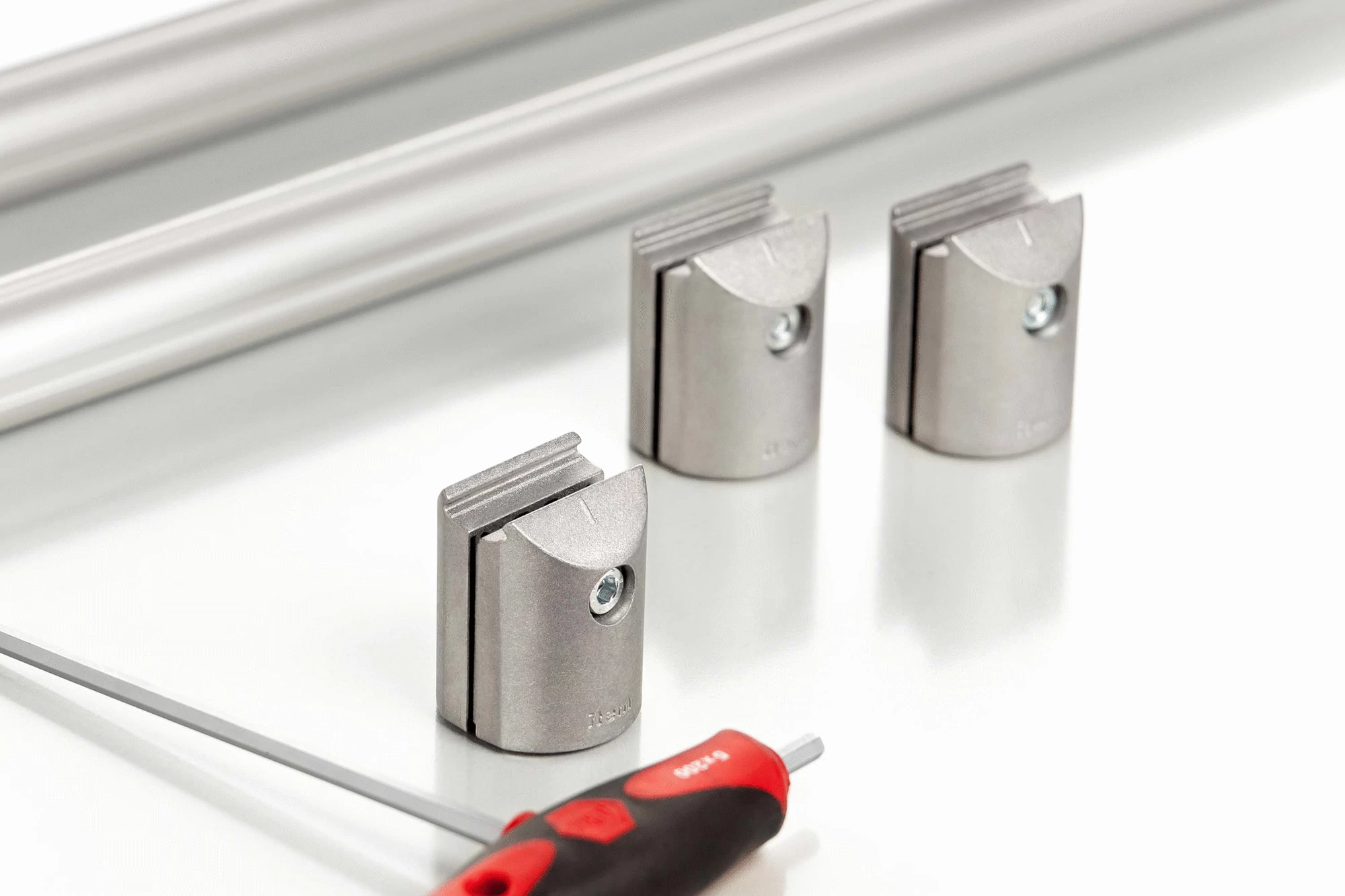

Fastener D30
Preassembled 2 fastener halves, die-cast Al, natural Hexagon Socket Head Cap Screw similar to DIN 912 M6x29.4, St, bright zinc-plated Hexagon nut DIN 934 M6-I8I, St, bright zinc-plated
Scope of Delivery
Preassembled 2 fastener halves, die-cast Al, natural Hexagon Socket Head Cap Screw similar to DIN 912 M6x29.4, St, bright zinc-plated Hexagon nut DIN 934 M6-I8I, St, bright zinc-plated
Properties
| Line | Line D30 |
|---|---|
| ESD-safe | Yes |
| Weight | m = 105 g |
| Delivery unit | 1 pce. |
| Torque | M = 10 Nm |

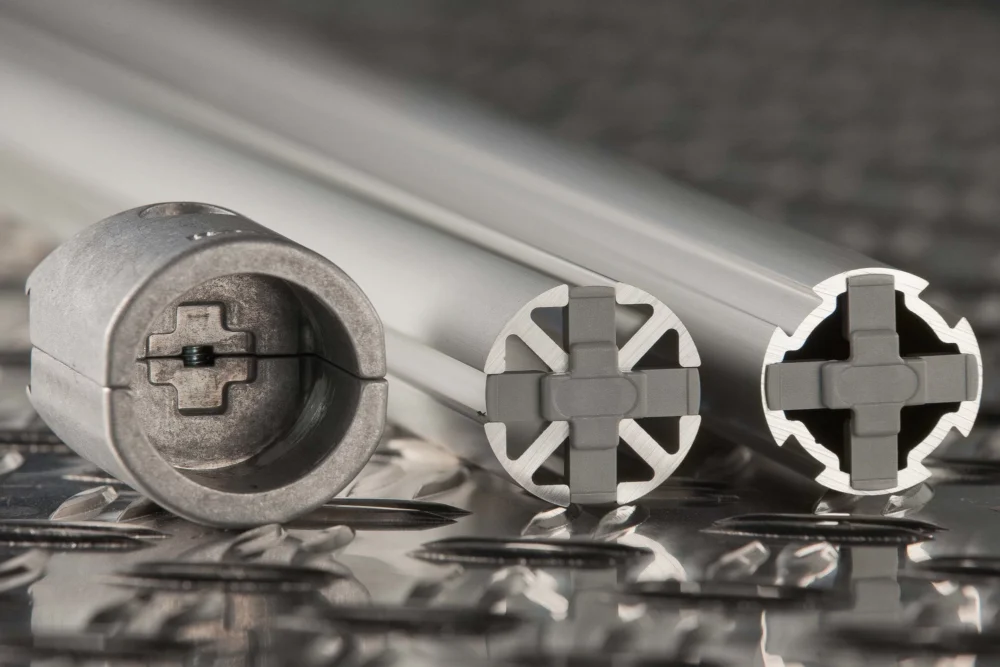

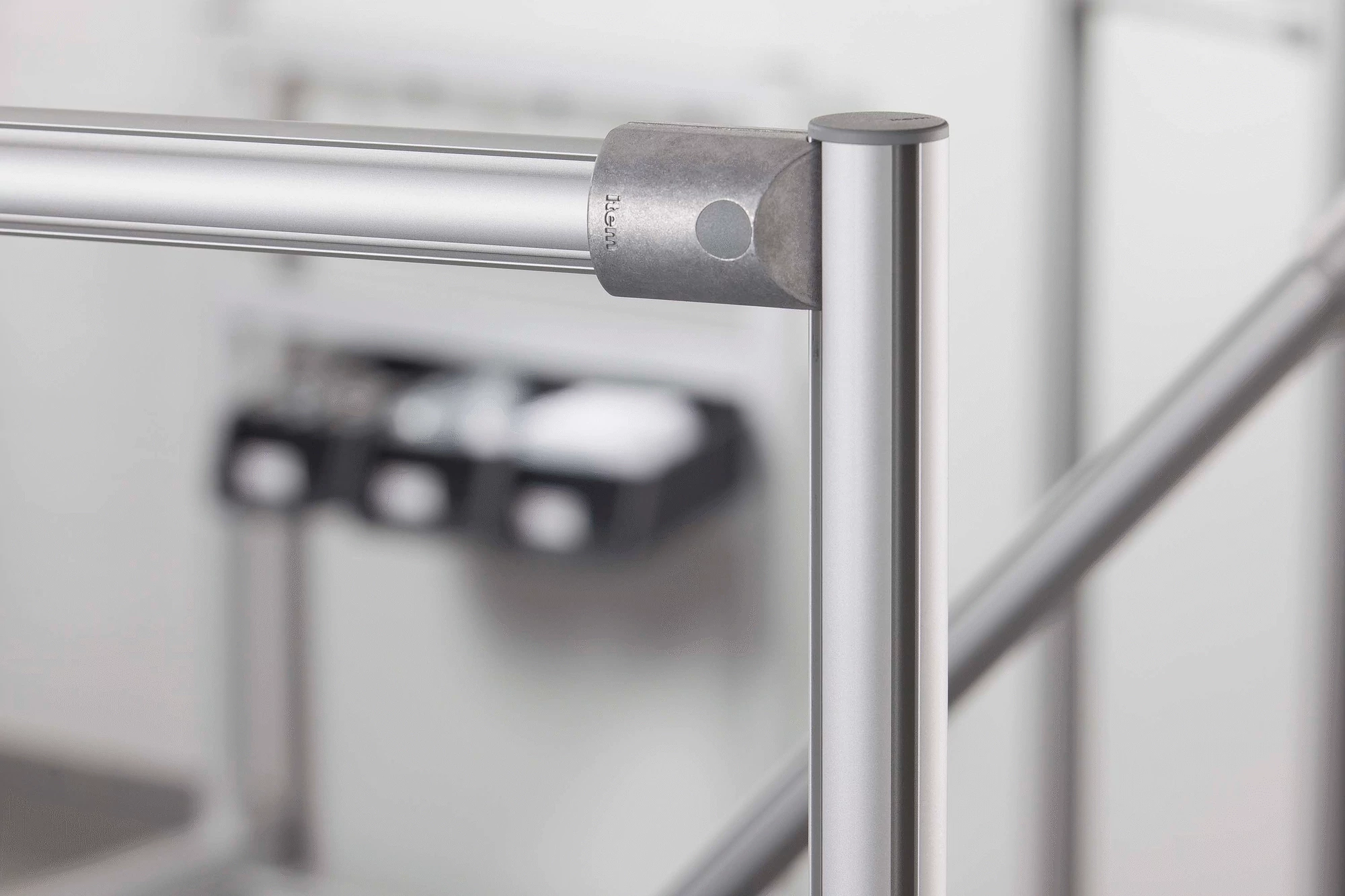

The universal 90°connection – die-cast aluminium Fastener D30 produces a lasting hold with no creep behaviour. It creates a mechanically locked connection with the contour of a Profile Tube D30 or Profile 6 D30. Up to four Fasteners can be connected to intersection points on a Profile Tube. No special fasteners are required! Tube Adapter D30 is used to connect to a Tube D30. Fastener D30 helps to compensate for tolerances. It consists of two half shells that encompass Tubes and Profile Tubes D30 to ensure a secure hold. A direct conductive contact is always ensured because aluminium is in contact with aluminium. Fastener D30 is supplied preassembled, which saves time on assembly operations. Simply insert the Tube, position the Fastener and tighten. The connection is immediately secure, meaning that one person can build a frame independently.
The universal 90°connection – die-cast aluminium Fastener D30 produces a lasting hold with no creep behaviour. It creates a mechanically locked connection with the contour of a Profile Tube D30 or Profile 6 D30. Up to four Fasteners can be connected to intersection points on a Profile Tube. No special fasteners are required! Tube Adapter D30 is used to connect to a Tube D30. Fastener D30 helps to compensate for tolerances. It consists of two half shells that encompass Tubes and Profile Tubes D30 to ensure a secure hold. A direct conductive contact is always ensured because aluminium is in contact with aluminium. Fastener D30 is supplied preassembled, which saves time on assembly operations. Simply insert the Tube, position the Fastener and tighten. The connection is immediately secure, meaning that one person can build a frame independently.
Stay in alignment: Anti-Torsion Blocks 6 D30 ensure that Profile Tubes D30 and Profiles 6 D30 are always oriented perfectly inside Fasteners D30 that use external clamping technology. This helps make sure accessories end up in the right place. Anti-Torsion Block 6 D30-45° makes it easier to connect diagonal struts at an angle of 45° by positioning the profile flanks perfectly.
Fastener D30 F x = 500 N F z = 500 N M x = 5 Nm M y = 50 Nm M z = 20 Nm
