| Fastener D30-45°, internal | CADPDFRFQ |
Preview

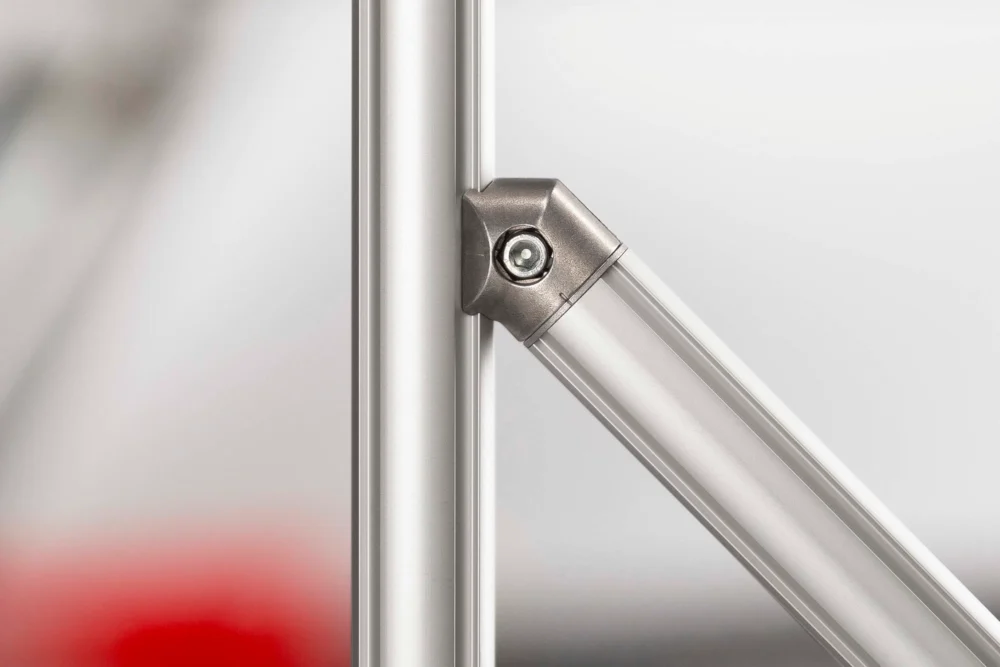

Fastener D30-45°, internal
Partially preassembled 2 fastener halves, die-cast Al, natural Internal Fastener D30 tube insert Hexagon Socket Head Cap Screw M6x20, St, bright zinc-plated Hexagon nut DIN 934 M6-I8I, St, bright zinc-plated
Scope of Delivery
Partially preassembled 2 fastener halves, die-cast Al, natural Internal Fastener D30 tube insert Hexagon Socket Head Cap Screw M6x20, St, bright zinc-plated Hexagon nut DIN 934 M6-I8I, St, bright zinc-plated
Properties
| Line | Line D30 |
|---|---|
| ESD-safe | Yes |
| Weight | m = 58 g |
| Delivery unit | 1 set |
| Torque | M = 10 Nm |
For smooth and elegant diagonals! Fastener D30-45°, internal uses internal clamping technology from item to create a smooth transition between fastener and Profile Tube. On the one hand, it looks great. On the other hand, it also makes the fastener ideal for retrofitting into the tightest of spaces. This means additional struts can be quickly built into constructions to provide extra reinforcement. Note: For diagonal struts that need to accommodate high loads, item offers Fastener D30-45° (0.0.637.87), which uses external clamping technology.
