Fastener D30-45°, internal, Connector M6-12
2 fastener halves, die-cast Al, natural 1 flange D30/D6-5, St, bright zinc-plated 1 Hexagon Socket Head Cap Screw DIN 912 M6x20, St, bright zinc-plated 1 hexagon nut DIN 934-M6-I8I, St, bright zinc-plated 1 Countersunk Screw DIN 7991 M6x16, St, bright zinc-plated 1 washer, St, bright zinc-plated
Scope of Delivery
2 fastener halves, die-cast Al, natural 1 flange D30/D6-5, St, bright zinc-plated 1 Hexagon Socket Head Cap Screw DIN 912 M6x20, St, bright zinc-plated 1 hexagon nut DIN 934-M6-I8I, St, bright zinc-plated 1 Countersunk Screw DIN 7991 M6x16, St, bright zinc-plated 1 washer, St, bright zinc-plated
Properties
| Torque | M = 10 Nm |
|---|---|
| Line | Line D30 |
| ESD-safe | Yes |
| Weight | m = 53 g |
| Delivery unit | 1 set |

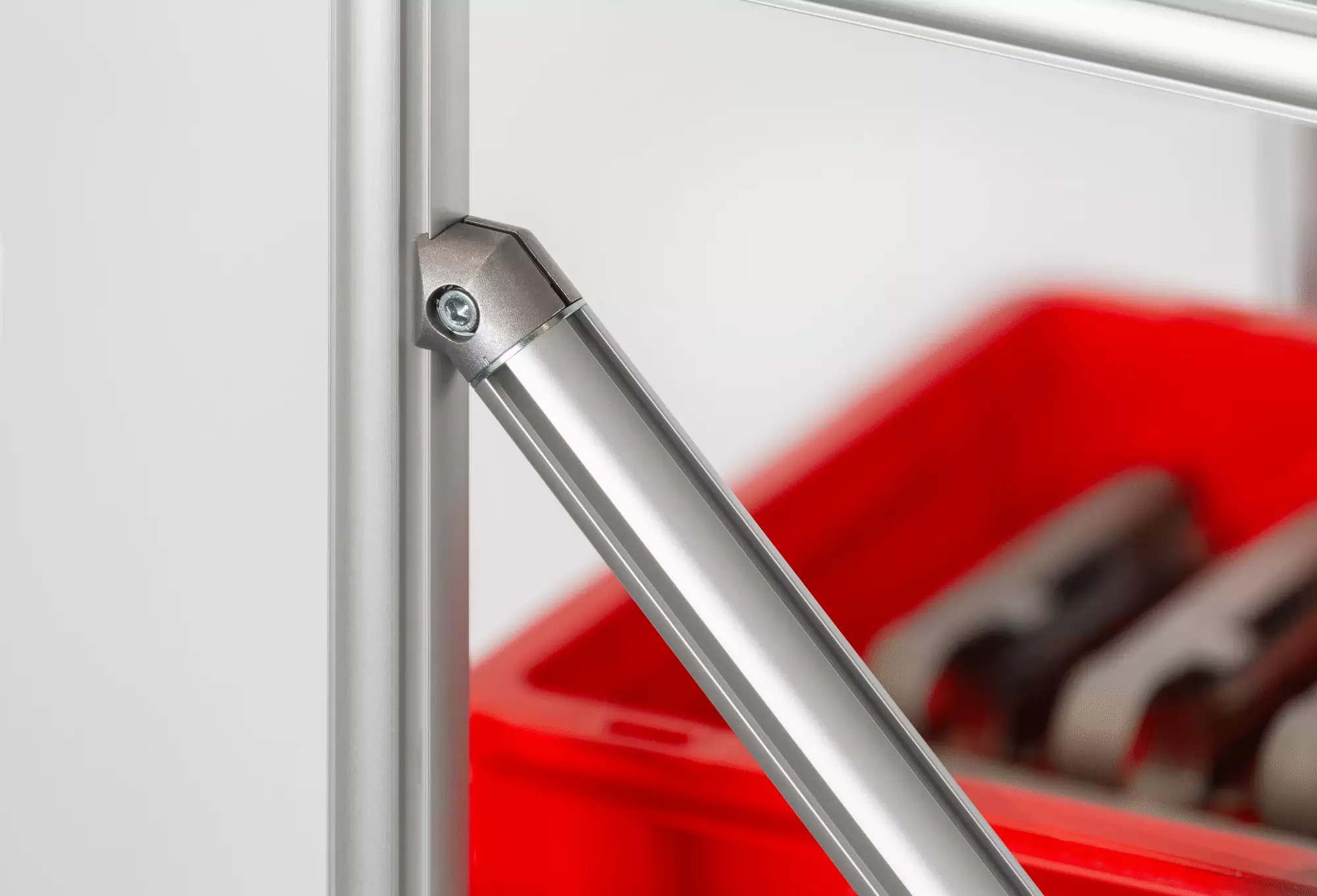

Fastener D30-45°, internal, Connector M6-12 connects a Profile Tube D30 with a Profile 6 D30 at an angle of 45°. This ensures that diagonal struts can also be retrofitted to frames to enhance rigidity. The flange can also be fastened to a rectangular profile using a T-Slot Nut.
Fx = 500 N Fz = 500 N Mx = 5 Nm My = 20 Nm Mz = 5 Nm
