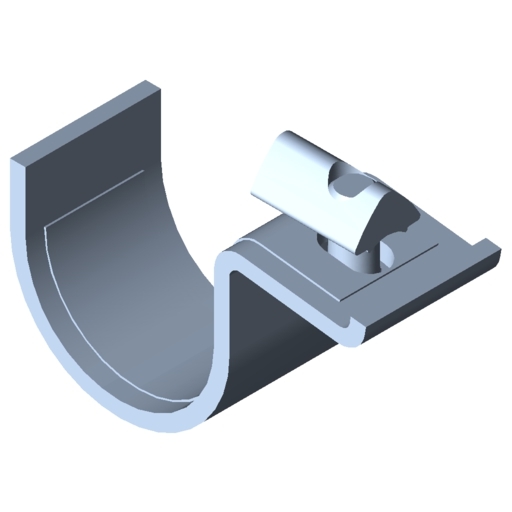

Bracket 6 D30 T2
Bracket, St, bright zinc-plated T-Slot Nut 6 St M6, St, bright zinc-plated Hexagon Socket Head Cap Screw DIN 912 M6x12, St, bright zinc-plated Button-Head Screw, self-tapping 3.9×16, TX20, St, bright zinc-plated
Scope of Delivery

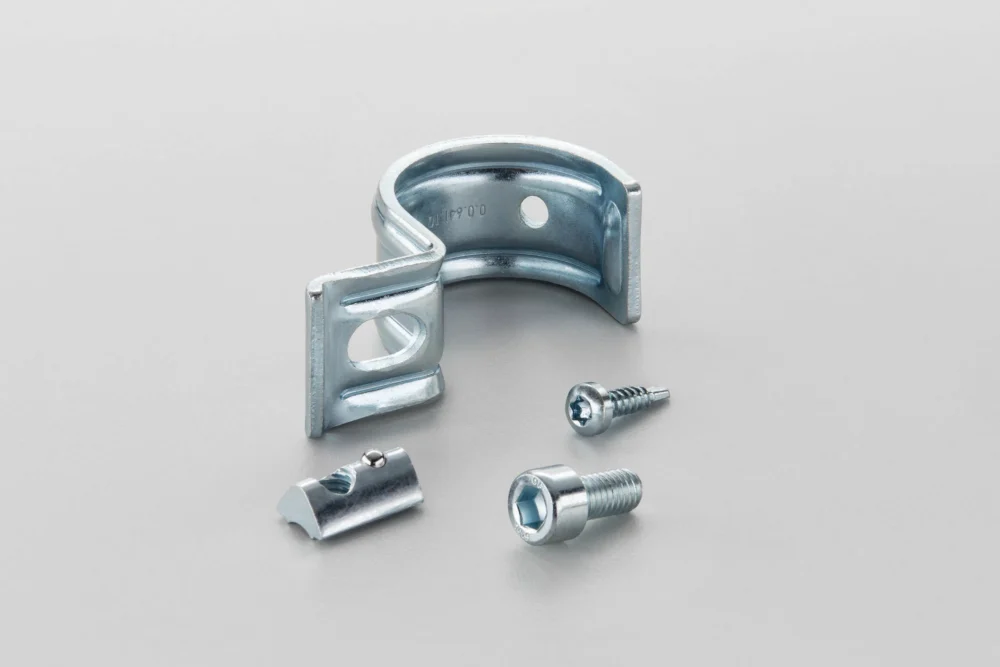

Bracket, St, bright zinc-plated T-Slot Nut 6 St M6, St, bright zinc-plated Hexagon Socket Head Cap Screw DIN 912 M6x12, St, bright zinc-plated Button-Head Screw, self-tapping 3.9x16, TX20, St, bright zinc-plated
Properties
| Line | Line D30 |
|---|---|
| ESD-safe | Yes |
| Weight | m = 60 g |
| Delivery unit | 1 set |
| Torque | M = 5 Nm |

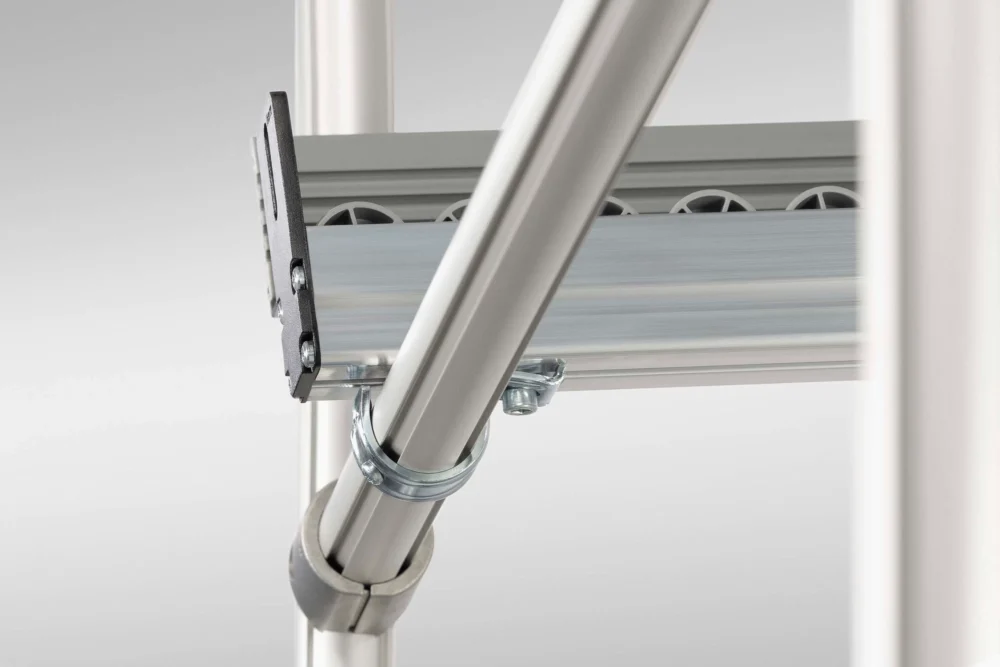

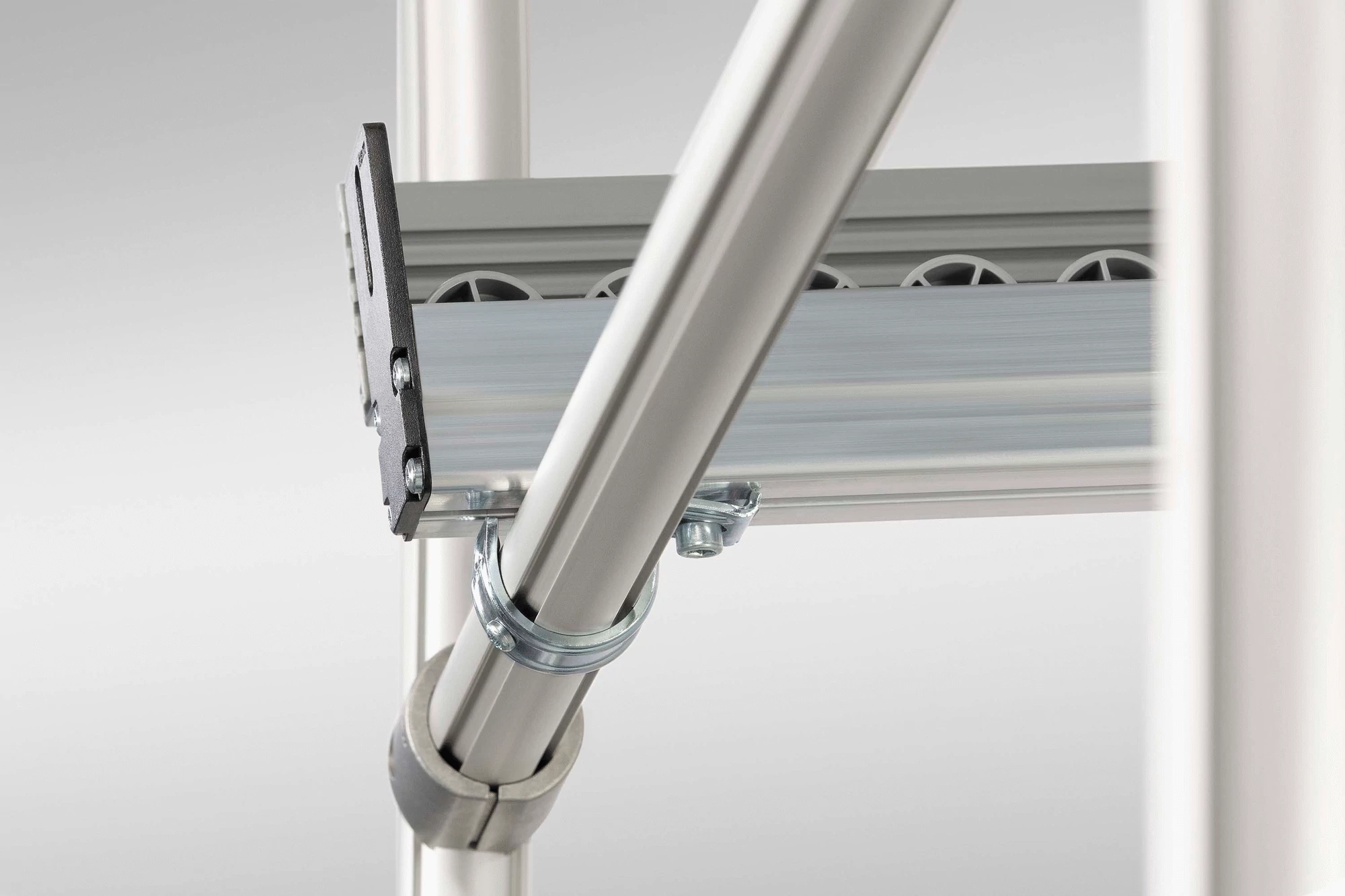

Best hold despite being half the length! Brackets D30 T2 connect profiles with a Line 6 or 8 groove with a Tube D30 or Profile Tube D30 that is running underneath them at a right angle. Unlike Bracket D30, the connection can also be made close to the end of the profile. Thanks to a shortened geometry with just one wing, only one T-Slot Nut is needed. The enclosed self-tapping screw provides additional hold. The flat, torsion-resistant Brackets D30 T2 are ideal for fixing Roller Conveyor 6 40x40 E D30 and/or Roller Conveyor 8 / Castor Rail 8 40x40 directly to a structure built using Tubes D30. However, it also offers a space-saving fixing for other components and profiles with a Line 6 or 8 groove.
Compact Brackets D30 T2 are used when components pivot past each other or when there is little space due to the installation scenario. Bracket D30 T2 and the (profile) tube must be screwed together using the self-tapping screw supplied with the bracket.
