Base Plate X 8 80-45° M16, white aluminium, similar to RAL 9006

Plate, AI 5 Hexagon Socket Head Cap Screws DIN 912-M8x25, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M8x18, St, bright zinc-plated 9 washers DIN 433-8.4, St, bright zinc-plated 4 T-Slot Nuts V8 St M8, St, bright zinc-plated

Art. nr: 0.0.670.59 Kategori: Etikett:
Set CAD-format

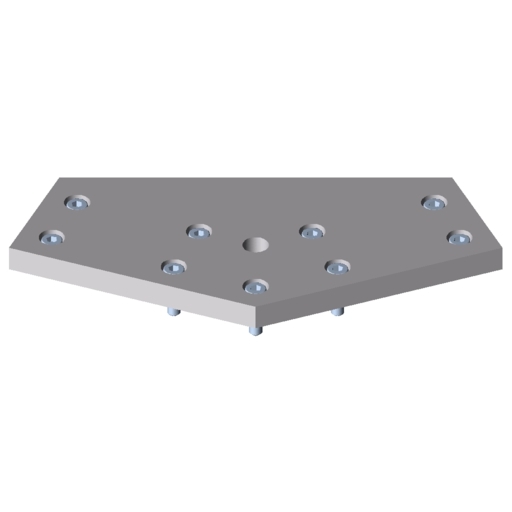

Base Plate X 8 80-45° M16, white aluminium, similar to RAL 9006CADPDFRFQ

Preview

Scope of Delivery

Plate, AI 5 Hexagon Socket Head Cap Screws DIN 912-M8x25, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M8x18, St, bright zinc-plated 9 washers DIN 433-8.4, St, bright zinc-plated 4 T-Slot Nuts V8 St M8, St, bright zinc-plated

Properties

Lineline X
ESD-safeNo
Weightm = 1.4 kg
Delivery unit1 set
MaterialAl
Colourwhite aluminium, similar to RAL 9006

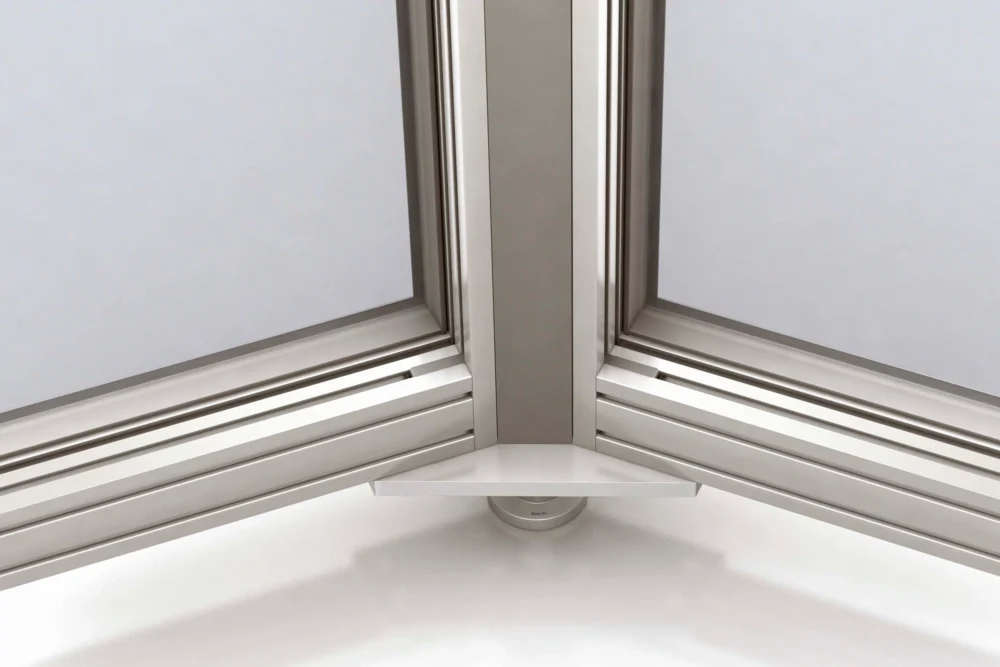

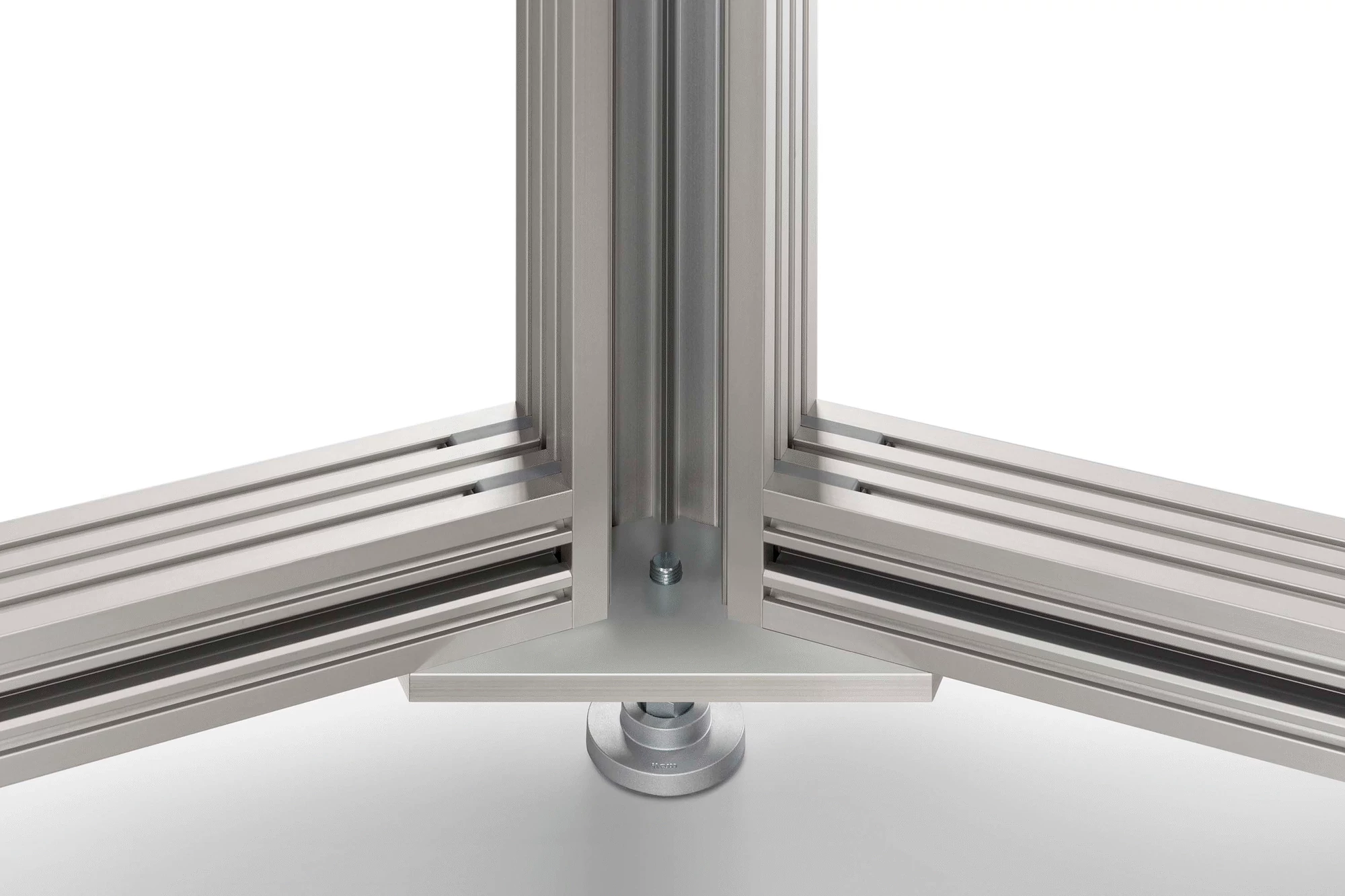

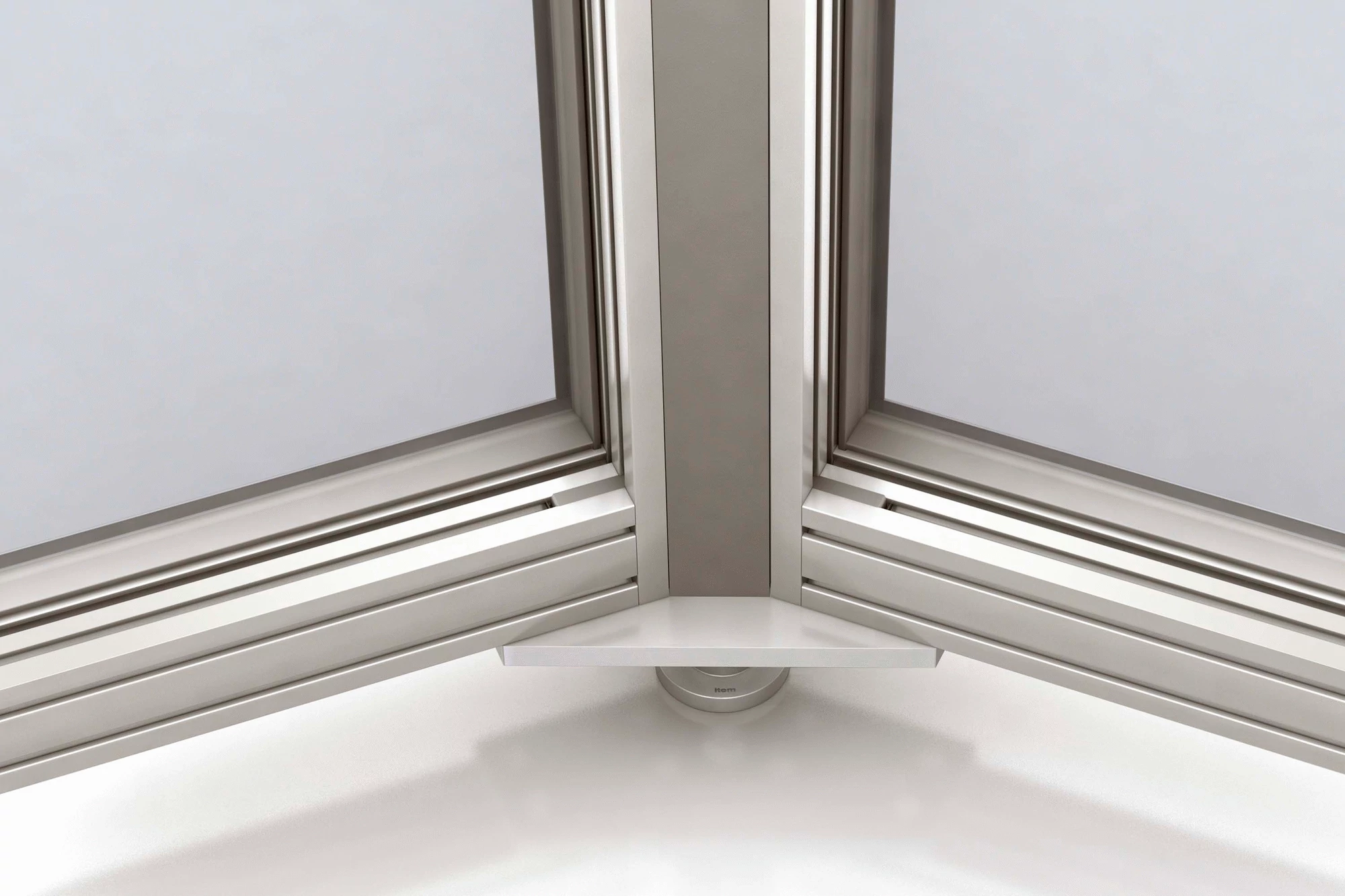

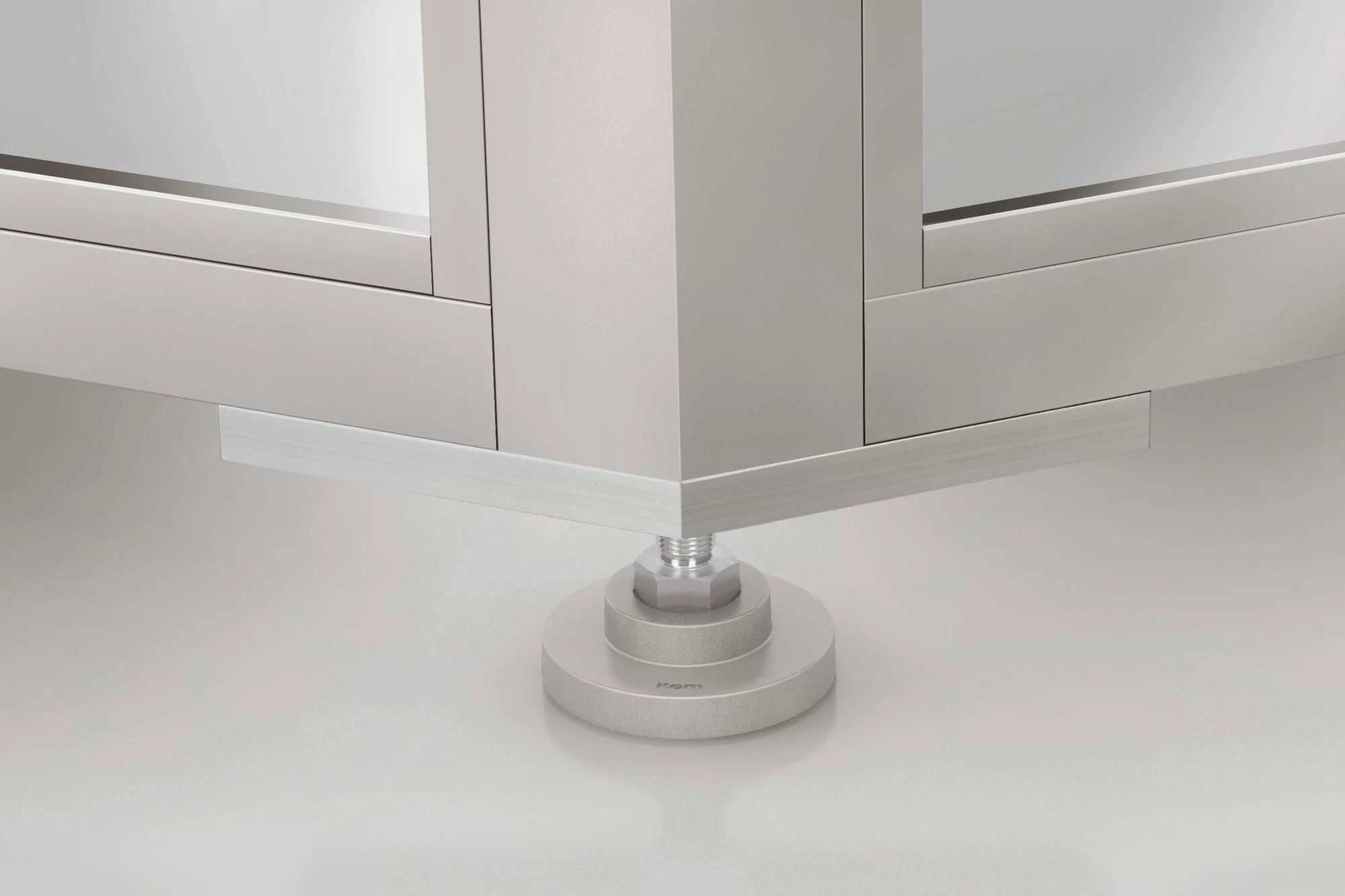

Coordinated Base Plates/Transport Plates make it easier to fit Adjustable Feet and Castors to structures. Firstly, Base Plate/Transport Plate X 8 40-45° M16 and Base Plate/Transport Plate X 8 80-45° M16 are screwed to the underside of the 45° corner profiles. Secondly, because they overlap the sides of the corner profile, with holes for additional screw connections, they also support horizontal profiles. They thus help to boost the rigidity of the machine enclosure.
Threads need to be tapped into the core bores of the vertical profiles in order to fasten the Base Plates/Transport Plates.
