| Base Plate X 8 40 R40-90° M16, white aluminium, similar to RAL 9006 | CADPDFRFQ |
Preview
Base Plate X 8 40 R40-90° M16, white aluminium, similar to RAL 9006
Plate, AI Hexagon Socket Head Cap Screw DIN 912-M8x25, St, bright zinc-plated 2 Hexagon Socket Head Cap Screws DIN 912-M8x18, St, bright zinc-plated 3 washers DIN 433-8.4, St, bright zinc-plated 2 T-Slot Nuts V8 St M8, St, bright zinc-plated
Scope of Delivery
Plate, AI Hexagon Socket Head Cap Screw DIN 912-M8x25, St, bright zinc-plated 2 Hexagon Socket Head Cap Screws DIN 912-M8x18, St, bright zinc-plated 3 washers DIN 433-8.4, St, bright zinc-plated 2 T-Slot Nuts V8 St M8, St, bright zinc-plated
Properties
| Line | line X |
|---|---|
| ESD-safe | No |
| Weight | m = 520 g |
| Delivery unit | 1 set |
| Material | Al |
| Colour | white aluminium, similar to RAL 9006 |

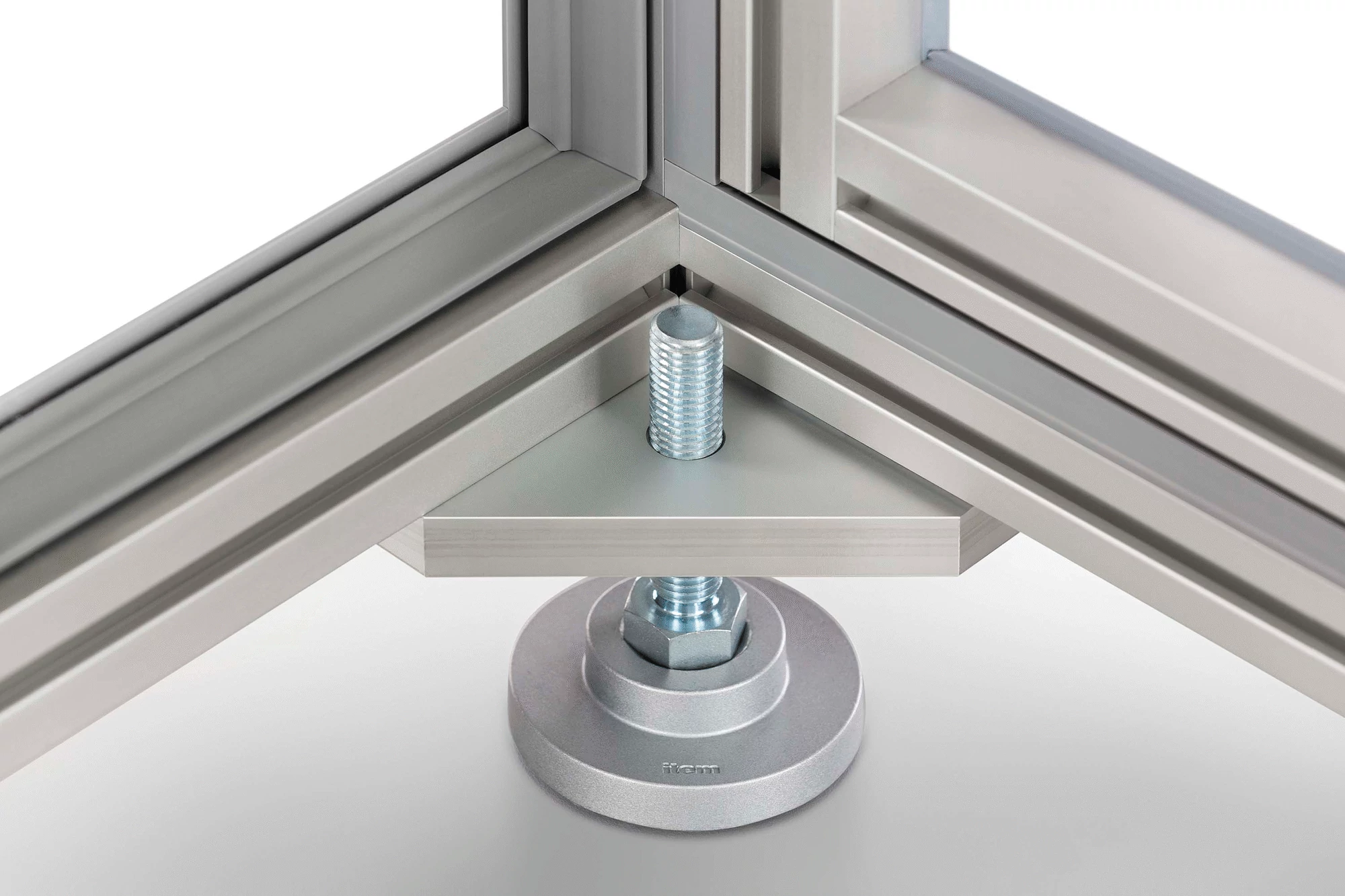

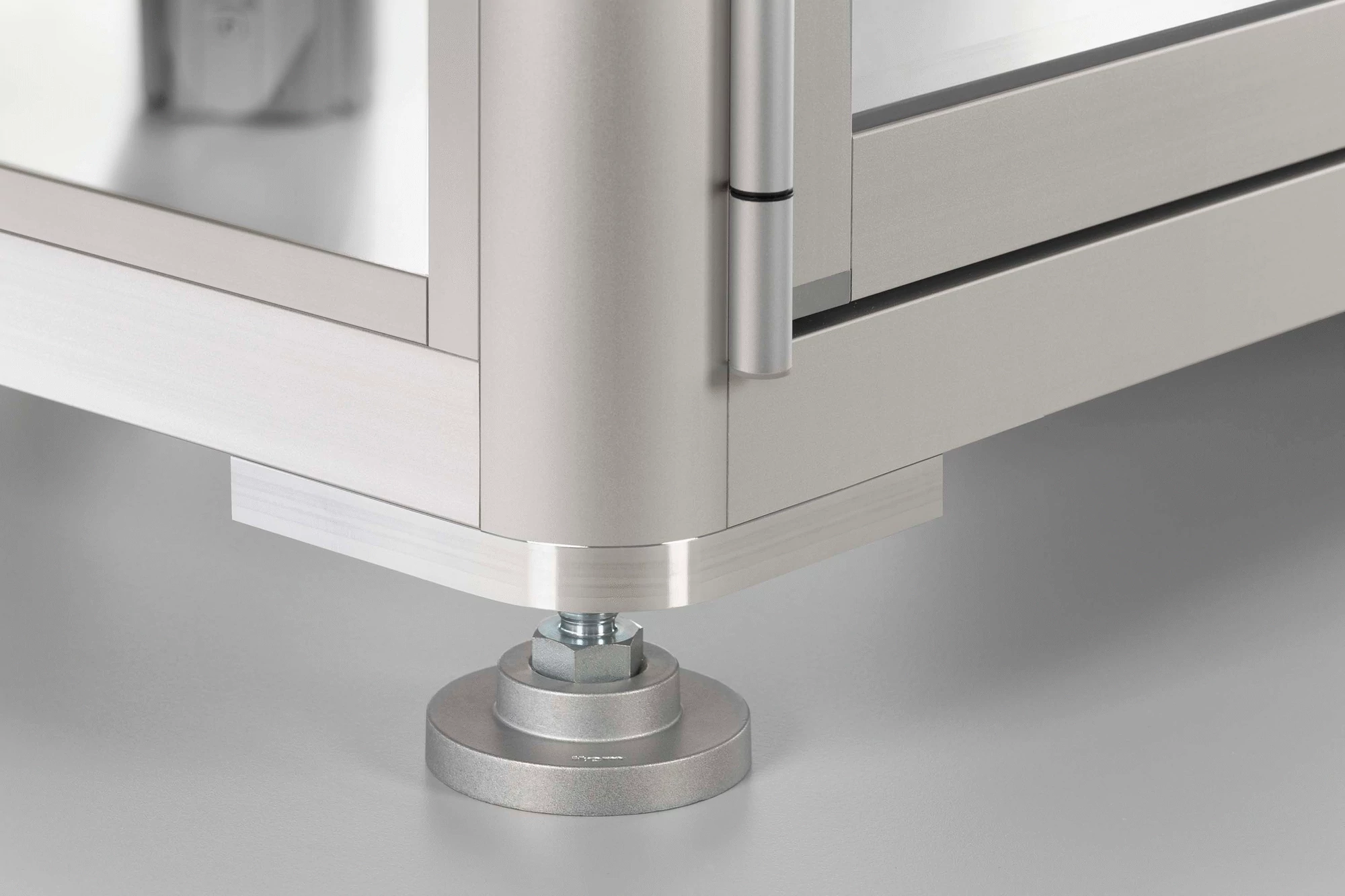

Compatible Base Plates/Transport Plates are available for connecting Adjustable Feet and Castors. They complement the rounding on the profiles and, because they overlap the sides of the profiles, can be additionally screw-fastened to the horizontal profiles of the frame.
Threads need to be tapped into the core bores of the vertical profiles in order to fasten the Base Plates/Transport Plates.
