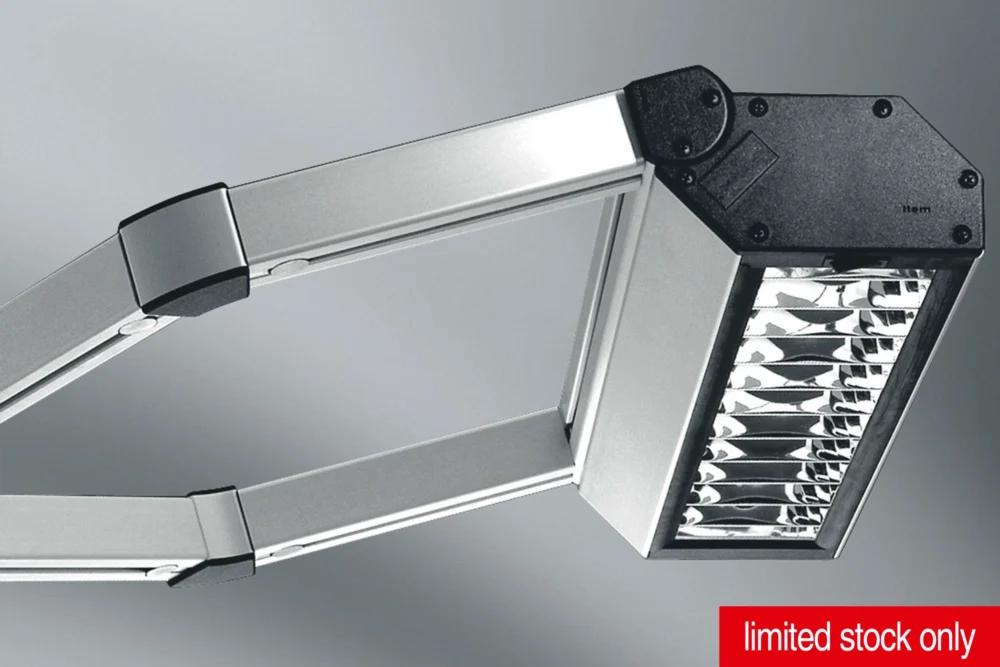

Light Fitting 55W, 120V
ON/OFF Switch 55 W compact fluorescent lamp Lamp-Control Unit 60° parabolic reflector grid Socket lock Notes on Use and Installation Colour rendering index: R a ≈ 82 Colour temperature: T ≈ 4000°K (neutral white)
Scope of Delivery
ON/OFF Switch 55 W compact fluorescent lamp Lamp-Control Unit 60° parabolic reflector grid Socket lock Notes on Use and Installation Colour rendering index: R a ≈ 82 Colour temperature: T ≈ 4000°K (neutral white)
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 3.7 kg |
| Power | P = 55 W |
| Delivery unit | 1 pce. |
| Voltage, primary | U1 = 120 V AC |
Robust Light Fitting for illuminating work benches. The integrated hinge profile with Line 8 system groove ensures simple angle adjustment. The Light Fitting can be powered from a 230 V AC or 120 V AC source and is VDE-ENEC safety-approved. The versatile connection and fastening options support custom lighting configurations, with the option of connecting together up to three Light Fittings.
The Connecting Cable is used to connect the power supply to an earthed plug. The socket can be used to power the Light Fitting from any line network which is in place. The wires are held securely in the socket by means of a spring-force connection. If several Light Fittings are connected end-to-end, the power is fed from one Light Fitting to another by means of the Adapter. The dowel which is inserted into a mounting hole in the cap provides a mechanical link between the Light Fittings. If several Light Fittings positioned separately are connected in series and share a common power supply, the Light Fittings are interconnected using the Extension Cable which is available prefitted with appropriate connectors in a standard length of 2 m, or alternatively a customised version may be made using a plug and socket.
The Light Fitting can be sealed against dust (IP 40) by means of the Protective Panel. This panel also protects the Light Fitting against soiling and damage. The open socket must be sealed with a cap.
To allow the Light Fitting to be adjusted to specific applications, it can be locked in various positions over a swivel range of ±22.5° from its zero position.

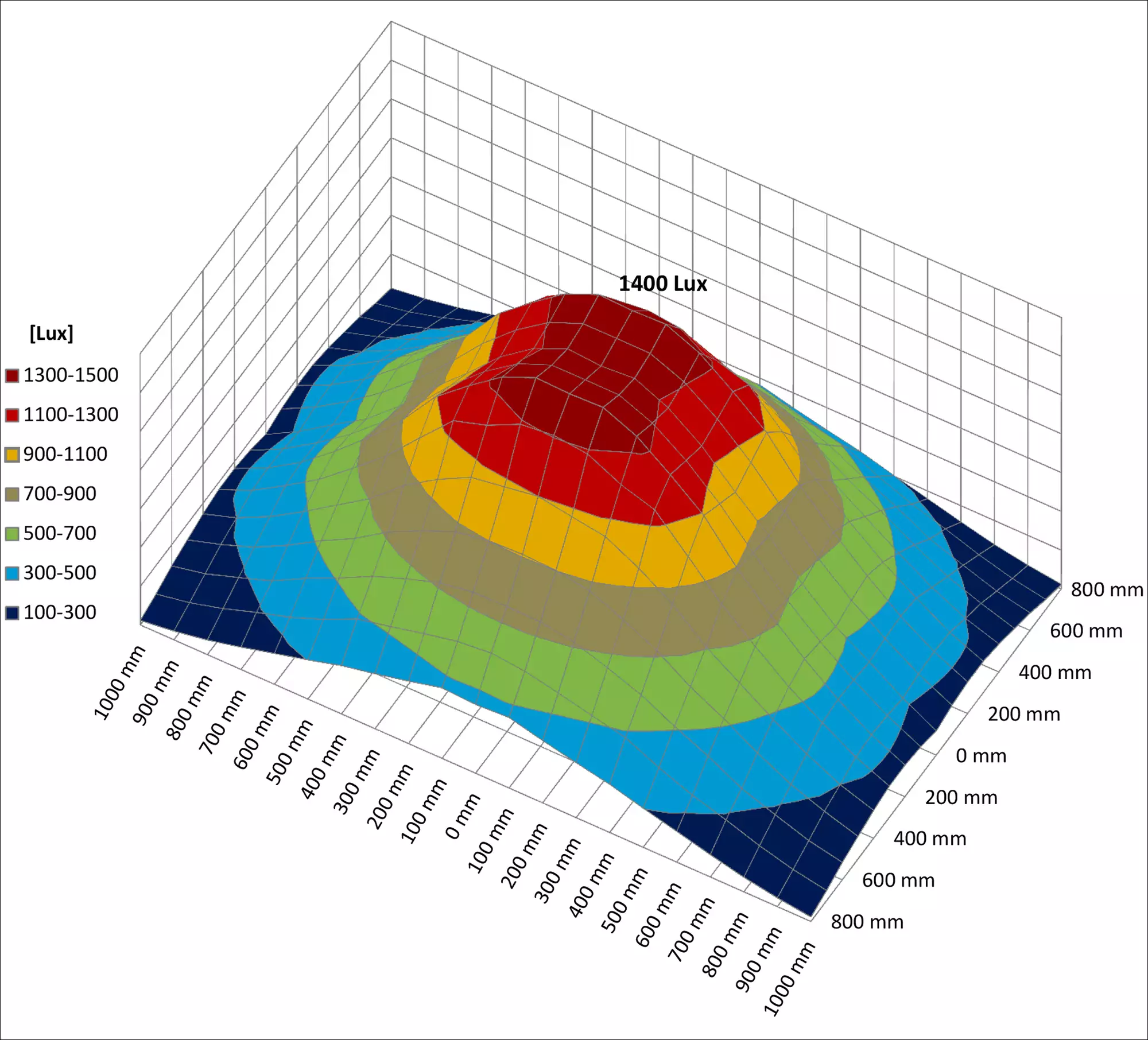

Distribution of illuminance as measured from 900 mm
