Connection Processing, Central-Fastening Set 8
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Delivery unit | 1 pce. |

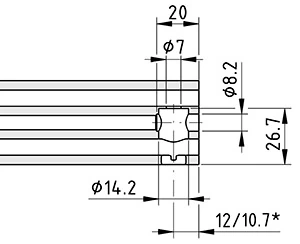

The profile to be connected via its end face needs to be machined before the Central-Fastening Set can be used. The hole to accommodate Central-Fastening Set 8 should be produced with Step Drill D14.2 (0.0.492.60). * When using Radius Seals in combination with Central-Fastening Set 8, the distance between the hole and the end face of the profile should be reduced from 12 mm to 10.7 mm.
