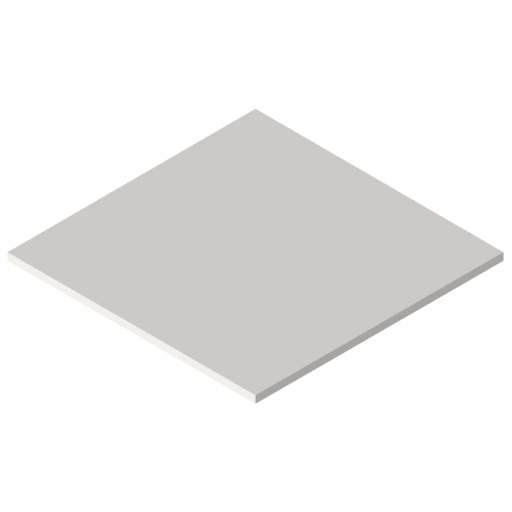

Acrylic Glass 6mm GS, clear
Thickness tolerance ± 10%
Configurated product data
Nothing generated yet
You must configurate your product below before requesting quoteScope of Delivery
Thickness tolerance ± 10%
Properties
| Property | clear |
|---|---|
| ESD-safe | No |
| Weight, spec. Surface | m = 7.07 kg/m2 |
| Delivery unit | cut-off max. 3020x2000 mm |
| Material | PMMA |

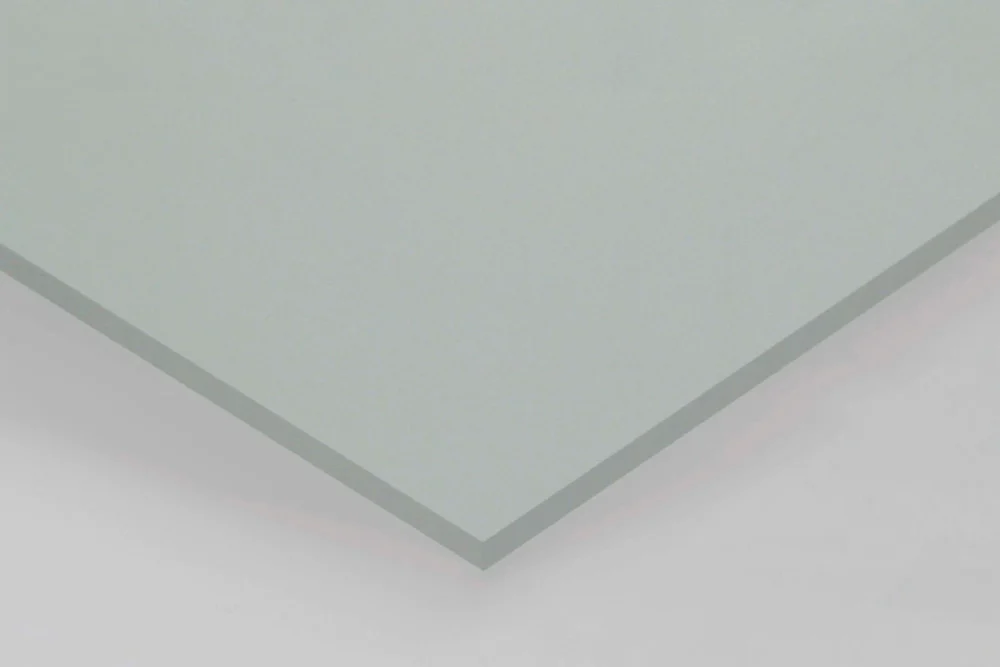

Acrylic Glass 6mm GS is a clear panel material that is manufactured in a casting process for toughness and especially high-quality optical properties. Acrylic Glass is resistant to many aggressive chemical substances as well as light, water, alkalis and aqueous solutions composed of inorganic salts. The different thermal expansion of Acrylic Glass and aluminium must be factored in with regard to tolerances. Adhesive Multiblock 8 6mm (0.0.696.37) is suitable for fixing a 6 mm-thick panel of Acrylic Glass, for example.
