GLTH8

Designet med plassbesparelse i tankene, har GLTH-serien en kompakt og lett konstruksjon uten å gå på kompromiss med ytelsen. Dette gjør den egnet for installasjoner der plassen er begrenset eller vektbegrensninger er en faktor.

Konfigurerte produktdata

Ingenting generert ennå

Du må konfigurere produktet nedenfor før du ber om tilbud
Produktnr: GLTH8 Kategori: Stikkord:

Allowable Overhang (mm) - Horizontal Installation Example load A - direction (mm) B - direction (mm) C - direction (mm)
Ball Screw diameter ⌀14 Lead 6 35 kg 1600 139 220
Ball Screw diameter ⌀14 Lead 6 34 kg 1210 102 160
Ball Screw diameter ⌀14 Lead 6 80 kg 620 46 74
Ball Screw diameter ⌀14 Lead 12 10 kg 2040 470 645
Ball Screw diameter ⌀14 Lead 12 30 kg 638 141 193
Ball Screw diameter ⌀14 Lead 12 60 kg 283 58 80
Ball Screw diameter ⌀14 Lead 24 20kg 253 145 133
Ball Screw diameter ⌀14 Lead 24 40 kg 109 60 55

Allowable Overhang (mm) - Wall Installation Example load A - direction (mm) B - direction (mm) C - direction (mm)
Ball Screw diameter ⌀14 Lead 6 35 kg 220 139 1600
Ball Screw diameter ⌀14 Lead 6 45 kg 160 102 1210
Ball Screw diameter ⌀14 Lead 6 80 kg 74 46 620
Ball Screw diameter ⌀14 Lead 12 10 kg 645 470 2040
Ball Screw diameter ⌀14 Lead 12 30 kg 193 141 638
Ball Screw diameter ⌀14 Lead 12 60 kg 80 58 2833
Ball Screw diameter ⌀14 Lead 24 20kg 133 145 253
Ball Screw diameter ⌀14 Lead 24 40 kg 55 60 109

Allowable Overhang (mm) - Vertical Installation Example load A - direction (mm) C - direction (mm)
Ball Screw diameter ⌀14 Lead 2 10 kg 535 535
Ball Screw diameter ⌀14 Lead 2 15 kg 360 360
Ball Screw diameter ⌀14 Lead 6 3.5 kg 1380 1380
Ball Screw diameter ⌀14 Lead 6 8 kg 605 605
Ball Screw diameter ⌀14 Lead 12 2 kg 1380 1380
Ball Screw diameter ⌀14 Lead 12 5 kg 556 556

Static Loading Moment (N.m)
MY 271
MP 271
MR 449

Maximum Performance
Medium Speed 1440 mm/s
Medium Stroke 1250 mm
Max Payload 80 kg

Specification
Repeatability mm ±0.005 ±0.005 ±0.005
Lead mm 6 12 24
Maximum Rotating Speed rmp 3600 3600 3600
Maximum Linear Speed mm/s 360 720 1440
Maximum Payload - Horizontal kg 80 60 40
Maximum Payload - Vertical kg 15 8 5
Rated Thrust N 569 284 142
Stroke (Increments) mm 50-1250mm/50 (50 increments) 50-1250mm/50 (50 increments) 50-1250mm/50 (50 increments)
Maximum Acceleration G 0.37 0.73 1.47
Ball Screw - Basic dynamic load rating ca N 7733 5855 3007
Ball Screw - Basic static load rating coa N 14200 10401 5414
Linear Guide - Dynamic horizontal (100km) N 4007 4007 4007
Linear Guide - Static horizontal N 34189 34189 34189
Fixed Bearing - Basic dynamic load rating cr N 8447 8447 8447
Fixed Bearing - Static load rating cor N 5060 5060 5060
Ball Screw Ø mm C7Ø 14 C7Ø 14 C7Ø 14
Kobling mm 10x14/11 10x14/11 10x14/11


Specification
Stroke (mm) 50 100 150 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250
Limit Stroke (mm) 74.5 124.5 174.5 224.5 274.5 324.5 374.5 424.5 474.5 524.5 574.5 624.5 674.5 724.5 774.5 824.5 874.5 924.5 974.5 1024.5 1074.5 1124.5 1174.5 1224.5 1274.5

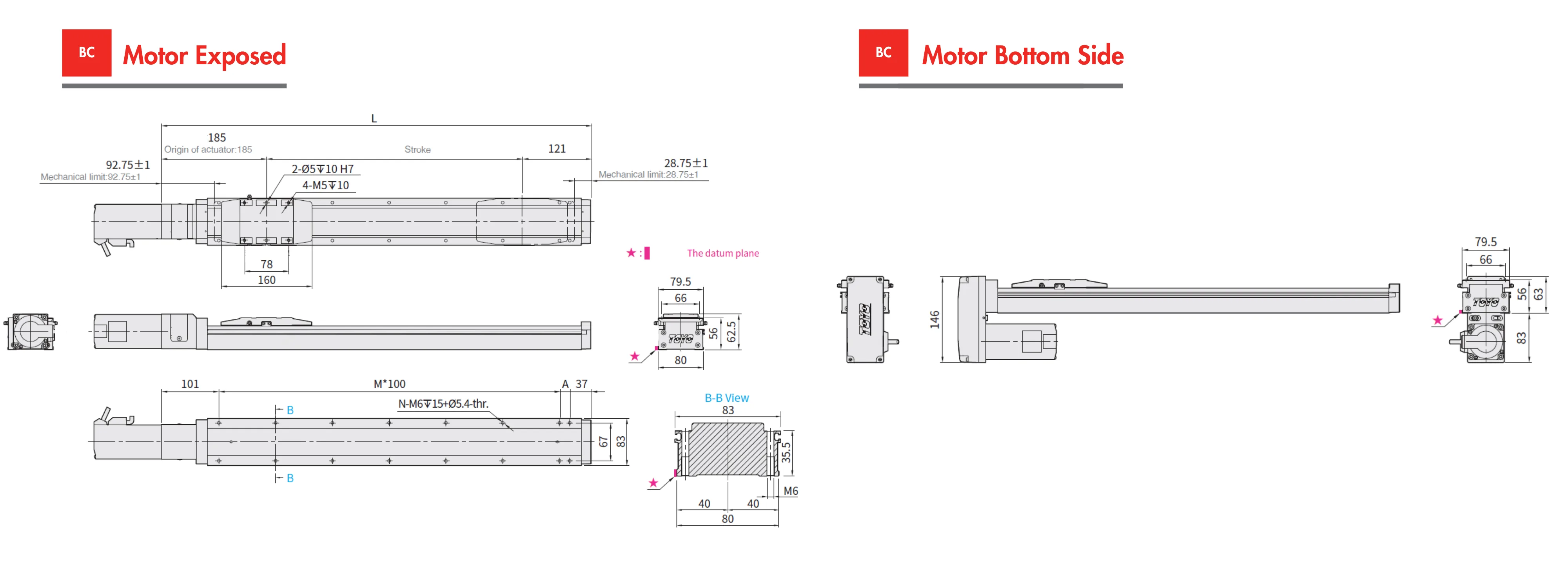

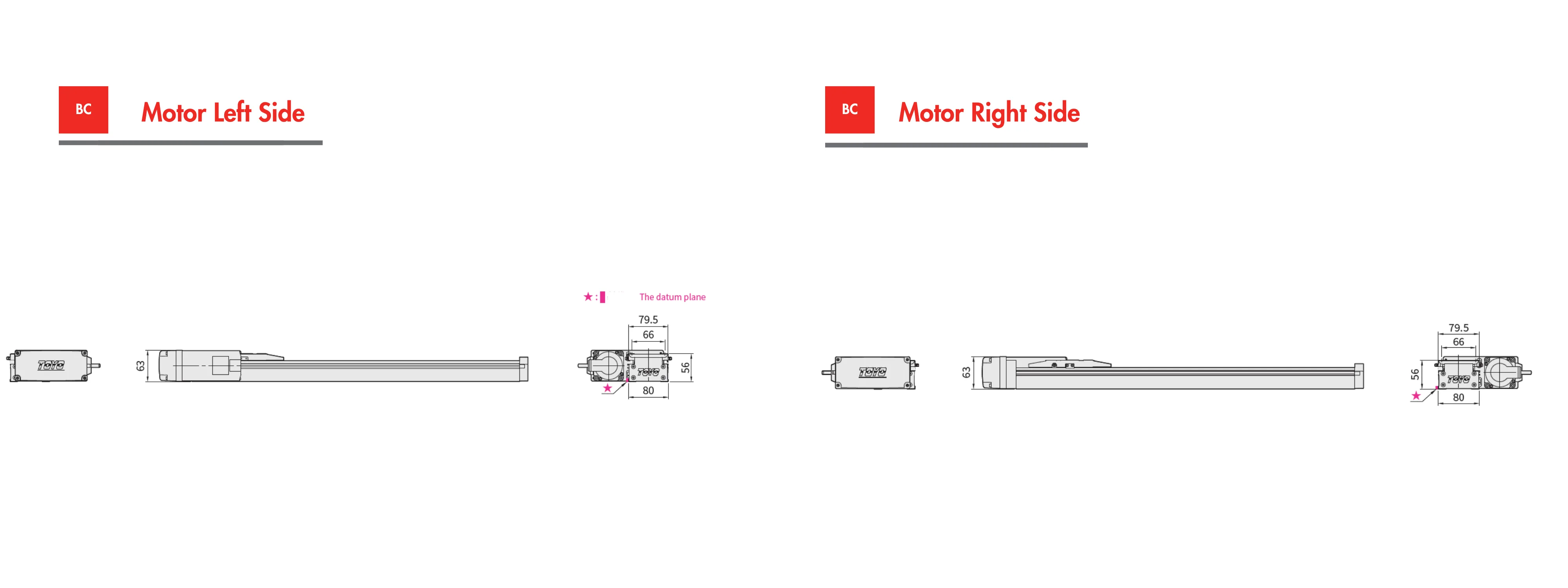

L - BC (mm) 356 406 456 506 556 606 656 706 756 806 856 906 956 1006 1056 1106 1156 1206 1256 1306 1356 1406 1456 1506 1556
L - BM (mm) 341.5 391.5 441.5 491.5 541.5 591.5 641.5 691.5 741.5 791.5 841.5 891.5 941.5 991.5 1041.5 1091.5 1141.5 1191.5 1241.5 1291.5 1341.5 1391.5 1441.5 1491.5 1541.5
A (mm) 18 68 18 68 18 68 18 68 18 68 18 68 18 68 18 68 18 68 18 68 18 68 18 68 18
M (mm) 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 11 11 12 12 13 13 14
N (mm) 8 8 10 10 12 12 14 14 16 16 18 18 20 20 22 22 24 24 26 26 28 28 30 30 32
Maximum Linear Speed - Lead 6 (mm/s) 360 360 360 360 360 360 360 360 360 360 360 350 310 270 240 210 190 170 160 140 130 120 110 100 90
Maximum Linear Speed - Lead 12 (mm/s) 720 720 720 720 720 720 720 720 720 720 720 700 620 540 480 420 380 340 320 280 260 240 220 200 180
Maximum Linear Speed - Lead 24 (mm/s) 1440 1440 1440 1440 1440 1440 1440 1440 1440 1440 1440 1400 1240 1080 960 840 760 680 640 560 520 480 440 400 360

Total Weight of Linear Module incl. Motor Package
Motor Package  - BC (kg) 2.31 2.61 2.9 3.2 3.49 3.79 4.09 4.38 4.68 4.97 5.27 5.57 5.87 6.16 6.46 6.75 7.05 7.35 7.64 7.94 8.24 8.53 8.83 9.13 9.42
Motor Package - BM (kg) 2.68 2.98 3.27 3.57 3.87 4.16 4.46 4.75 5.05 5.35 5.64 5.94 6.24 6.53 6.83 7.13 7.42 7.72 8.01 8.31 8.61 8.9 9.2 9.5 9.79

Specification
Stroke (mm) 50 100 150 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250
Limit Stroke (mm) 74.5 124.5 174.5 224.5 274.5 324.5 374.5 424.5 474.5 524.5 574.5 624.5 674.5 724.5 774.5 824.5 874.5 924.5 974.5 1024.5 1074.5 1124.5 1174.5 1224.5 1274.5
L - BC (mm) 356 406 456 506 556 606 656 706 756 806 856 906 956 1006 1056 1106 1156 1206 1256 1306 1356 1406 1456 1506 1556
L - BM (mm) 341.5 391.5 441.5 491.5 541.5 591.5 641.5 691.5 741.5 791.5 841.5 891.5 941.5 991.5 1041.5 1091.5 1141.5 1191.5 1241.5 1291.5 1341.5 1391.5 1441.5 1491.5 1541.5
A (mm) 18 68 18 68 18 68 18 68 18 68 18 68 18 68 18 68 18 68 18 68 18 68 18 68 18
M (mm) 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 11 11 12 12 13 13 14
N (mm) 8 8 10 10 12 12 14 14 16 16 18 18 20 20 22 22 24 24 26 26 28 28 30 30 32
Maximum Linear Speed - Lead 6 (mm/s) 360 360 360 360 360 360 360 360 360 360 360 350 310 270 240 210 190 170 160 140 130 120 110 100 90
Maximum Linear Speed - Lead 12 (mm/s) 720 720 720 720 720 720 720 720 720 720 720 700 620 540 480 420 380 340 320 280 260 240 220 200 180
Maximum Linear Speed - Lead 24 (mm/s) 1440 1440 1440 1440 1440 1440 1440 1440 1440 1440 1440 1400 1240 1080 960 840 760 680 640 560 520 480 440 400 360

Totalt Weight of Linear Module incl. Motor Package
KG 2.68 2.98 3.27 3.57 3.87 4.16 4.46 4.75 5.05 5.35 5.64 5.94 6.24 6.53 6.83 7.13 7.42 7.72 8.01 8.31 8.61 8.9 9.2 9.5 9.79
