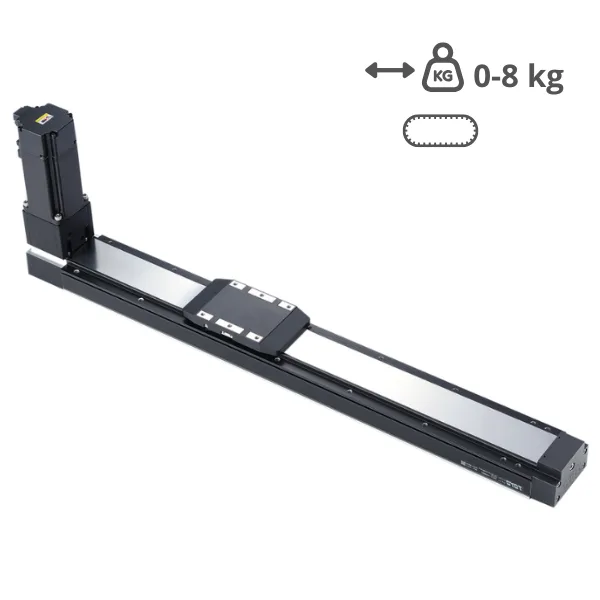

GLTB8

GLTB beltedrevne aktuatorer gir effektiv og presis lineær bevegelse for et bredt spekter av industrielle og kommersielle applikasjoner, med fordeler som jevn drift, lavt vedlikehold og kostnadseffektivitet.

Konfigurerte produktdata

Ingenting generert ennå

Du må konfigurere produktet nedenfor før du ber om tilbud
Produktnr: GLTB8 Kategori: Stikkord:

Allowable Overhang (mm) - Horizontal Installation Example load A - direction (mm) B - direction (mm) C - direction (mm)
Belt Driven diameter ⌀14 2 kg 1110 126 132
Belt Driven diameter ⌀14 5 kg 427 90 94
Belt Driven diameter ⌀14 8 kg 256 73 77

Allowable Overhang (mm) - Wall Installation Example load A - direction (mm) B - direction (mm) C - direction (mm)
Belt Driven diameter ⌀14 2 kg 132 126 1110
Belt Driven diameter ⌀14 5 kg 94 90 427
Belt Driven diameter ⌀14 8 kg 77 73 256

Static Loading Moment (N.m)
MY 271
MP 271
MR 449

Maximum Performance
Maximum speed 2000 mm/s
Maximum Stroke 3000 mm/s
Max Payload 8 kg

Specification
Repeatability mm ±0.06
Lead mm 60
Maximum Rotating Speed rmp 2000
Maximum Linear Speed mm/s 2000
Maximum Payload - Horizontal kg 8
Maximum Payload - Vertical kg
Rated Thrust N 116
Stroke (Increments) mm 50-3000mm/50 (50 increments)
Maximum Acceleration G 0.51
Beltebredde mm 88


Specification
Stroke (mm) 50 100 150 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 1350 1400 1450 1500
Limit Stroke (±1) 74.5 124.5 174.5 224.5 274.5 324.5 374.5 424.5 474.5 524.5 574.5 624.5 674.5 724.5 774.5 824.5 874.5 924.5 74.53 1024.5 1074.5 1124.5 1174.5 1224.5 1274.5 1324.5 1374.5 1424.5 1474.5 1524.5

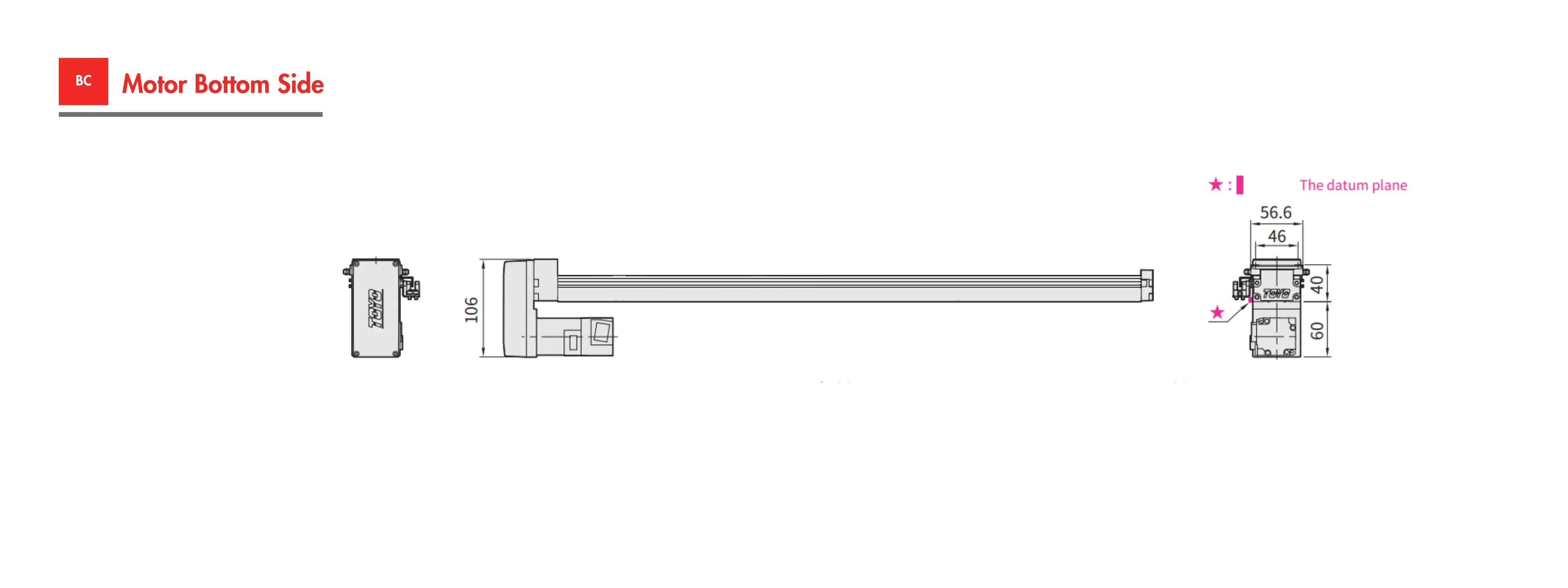

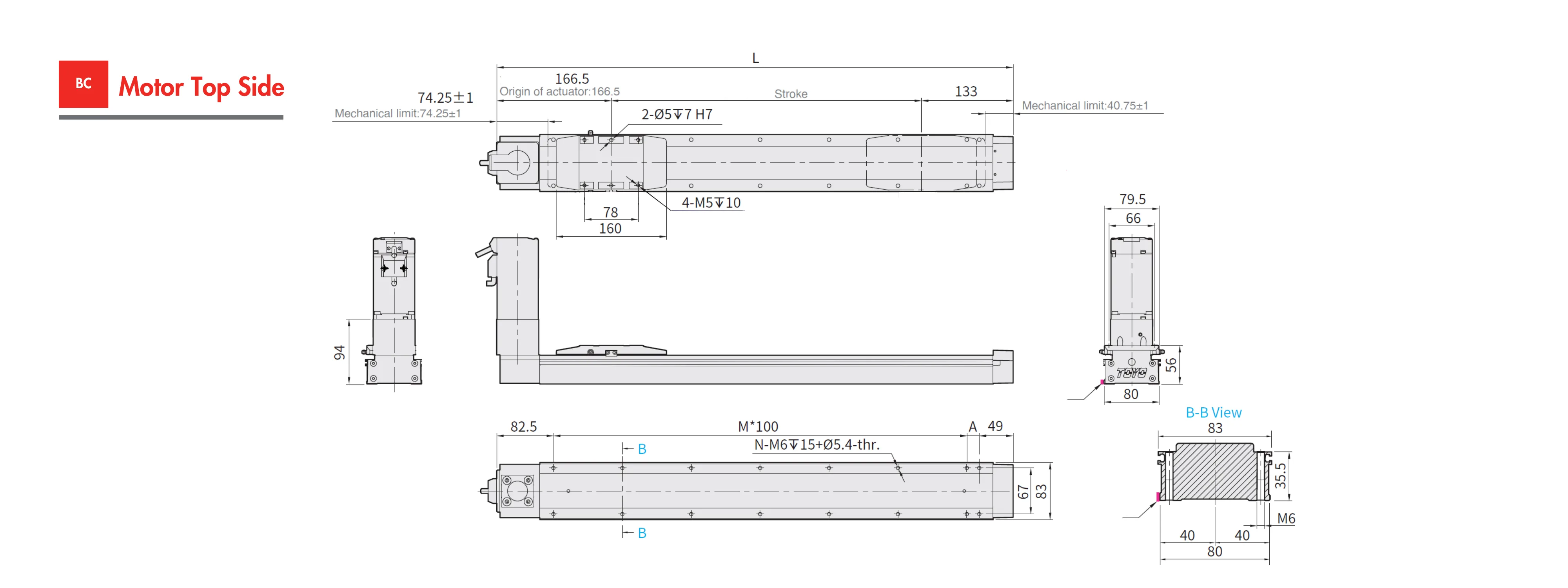

L (mm) 349.5 399.5 449.5 499.5 549.5 599.5 649.9 699.5 749.5 799.5 749.5 899.5 949.5 999.5 1049.5 1099.5 1149.5 1199.5 1249.5 1299.5 1349.5 1399.5 1449.5 1449.5 1549.5 1599.5 1649.5 1699.5 1749.5 1799.5
A (mm) 18 68 18 68 18 68 18 68 18 68 18 68 18 68 18 68 18 68 18 68 18 68 18 68 18 68 18 68 18 68
M (mm) 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 11 11 12 12 13 13 14 14 15 15 16 16
N (mm) 8 8 10 10 12 12 14 14 16 16 18 18 20 20 22 22 24 24 26 26 28 28 30 30 32 32 34 34 36 36
Maximum Linear Speed (mm/s) 1067 1067 1067 1067 1067 1067 1067 1067 1067 1067 1067 1067 1067 1067 1067 1067 1067 1067 1067 1067 1067 1067 1067 1067 1067 1067 1067 1067 1067 1067

Total Weight of Linear Module incl. Motor Package
KG 2.52 2.73 2.94 3.15 3.36 3.57 3.78 3.99 4.2 4.41 4.62 4.83 5.04 5.25 5.46 5.67 5.88 6.09 6.3 6.51 6.72 6.93 7.14 7.35 7.56 7.77 7.98 8.19 8.4 8.61

Specification
Stroke (mm) 1550 1600 1650 1700 1750 1800 1850 1900 1950 2000 2050 2100 2150 2200 2250 2300 2350 2400 2450 2500 2550 2600 2650 2700 2750 2800 2850 2900 2950 3000
Limit Stroke (±1) 1574.5 1624.5 1674.5 1724.5 1774.5 1824.5 1874.5 1924.5 1974.5 2024.5 2074.5 2124.5 2174.5 2224.5 2274.5 2324.5 2374.5 2424.5 2474.5 2524.5 2574.5 2624.5 2674.5 2724.5 2774.5 2824.5 2874.5 2924.5 2974.5 3024.5
L  (mm) 1849.5 1899.5 1949.5 1999.5 2049.5 2099.5 2149.9 2199.5 2249.5 2299.5 2349.5 2399.5 2449.5 2499.5 2549.5 2599.5 2649.5 2699.5 2749.5 2799.5 2849.5 2899.5 2949.5 2999.5 3049.5 3099.5 3149.5 3199.5 3249.5 3299.5
A (mm) 18 68 18 68 18 68 18 68 18 68 18 68 18 68 18 68 18 68 18 68 18 68 18 68 18 68 18 68 18 68
M (mm) 17 17 18 18 19 19 20 20 21 21 22 22 23 23 24 24 25 25 26 26 27 27 28 28 29 29 30 30 31 31
N (mm) 38 38 40 40 42 42 44 44 46 46 48 48 50 50 52 52 54 54 56 56 58 58 60 60 62 62 64 64 66 66
Maximum Linear Speed (mm/s) 1067 1067 1067 1067 1067 1067 1067 1067 1067 1067 1067 1067 1067 1067 1067 1067 1067 1067 1067 1067 1067 1067 1067 1067 1067 1067 1067 1067 1067 1067

Total Weight of Linear Module incl. Motor Package
KG 8.82 9.03 9.24 9.45 9.66 9.87 10.08 10.29 10.5 10.71 10.92 11.13 11.34 11.55 11.76 11.97 12.18 12.39 12.6 12.81 13.02 13.23 13.44 13.65 13.86 14.07 14.28 14.49 14.7 14.91

Katalog Toyo Lineære Moduler
