| Set CAD-format | ||
|---|---|---|
| Screw Clip – XMS | CADPDFRFQ |
Preview
Screw Clip – XMS
Clip, St, bright zinc-plated 4 height adjusters, PA-GF, black Button-Head Screw ISO 7580-M4x20, St, bright zinc-plated
Scope of Delivery
1 Clip, St, bright zinc-plated 4 height adjusters, PA-GF, black 1 Button-Head Screw ISO 7580-M4x20, St, bright zinc-plated
Properties
| Line | line X |
|---|---|
| ESD-safe | No |
| Weight | m = 21.3 g |
| Delivery unit | 1 set |

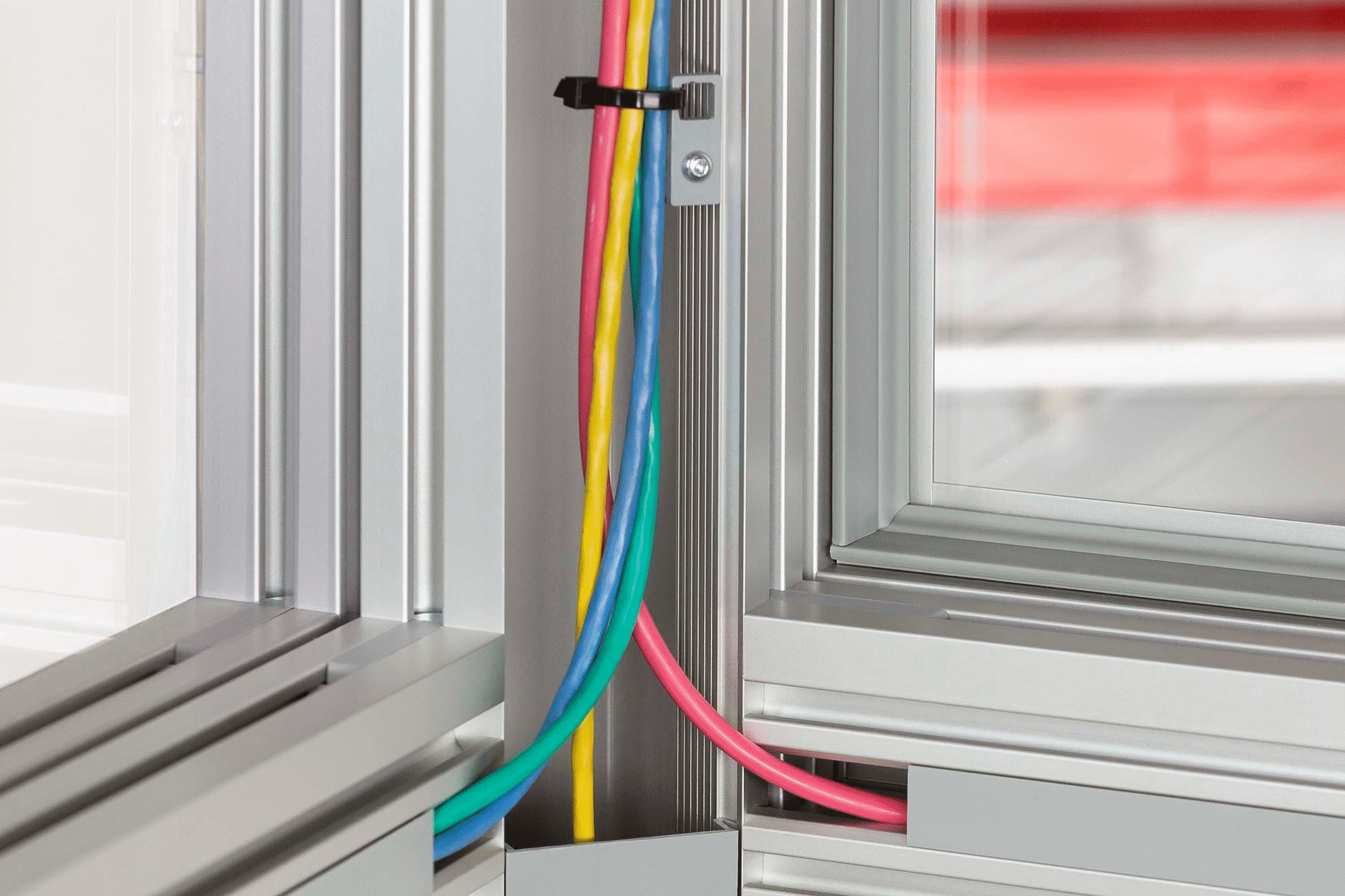

Steel screw clips provide additional fastening options within the cable conduit of Profile X 8 120x120 K56 - XMS. These universal fixings can be used with a broad range of accessories. Ridges running along the full length of the profile ensure that the screw clips can be installed wherever they are needed.
When combined with a height adjuster, Screw Clip - XMS can be used to fix installation elements flush with the profile contour. Four height adjusters of different thicknesses are supplied.
