24V Mini Conveyor

The BCDM24V Mini Conveyor is a compact conveyor with an integrated internal drive, ideal for applications with limited space. Its streamlined design eliminates external motor interference, simplifying integration into systems. Key features include a 24V power supply with planetary gearbox, adjustable speeds based on load, and a choice of FDA-compliant conveyor belts. It offers options such as sliding bed in stainless steel supporting various customization needs.

The BCDM24V Mini Conveyor is also service-friendly, easily dismantling for maintenance in automated setups.

Teknisk info

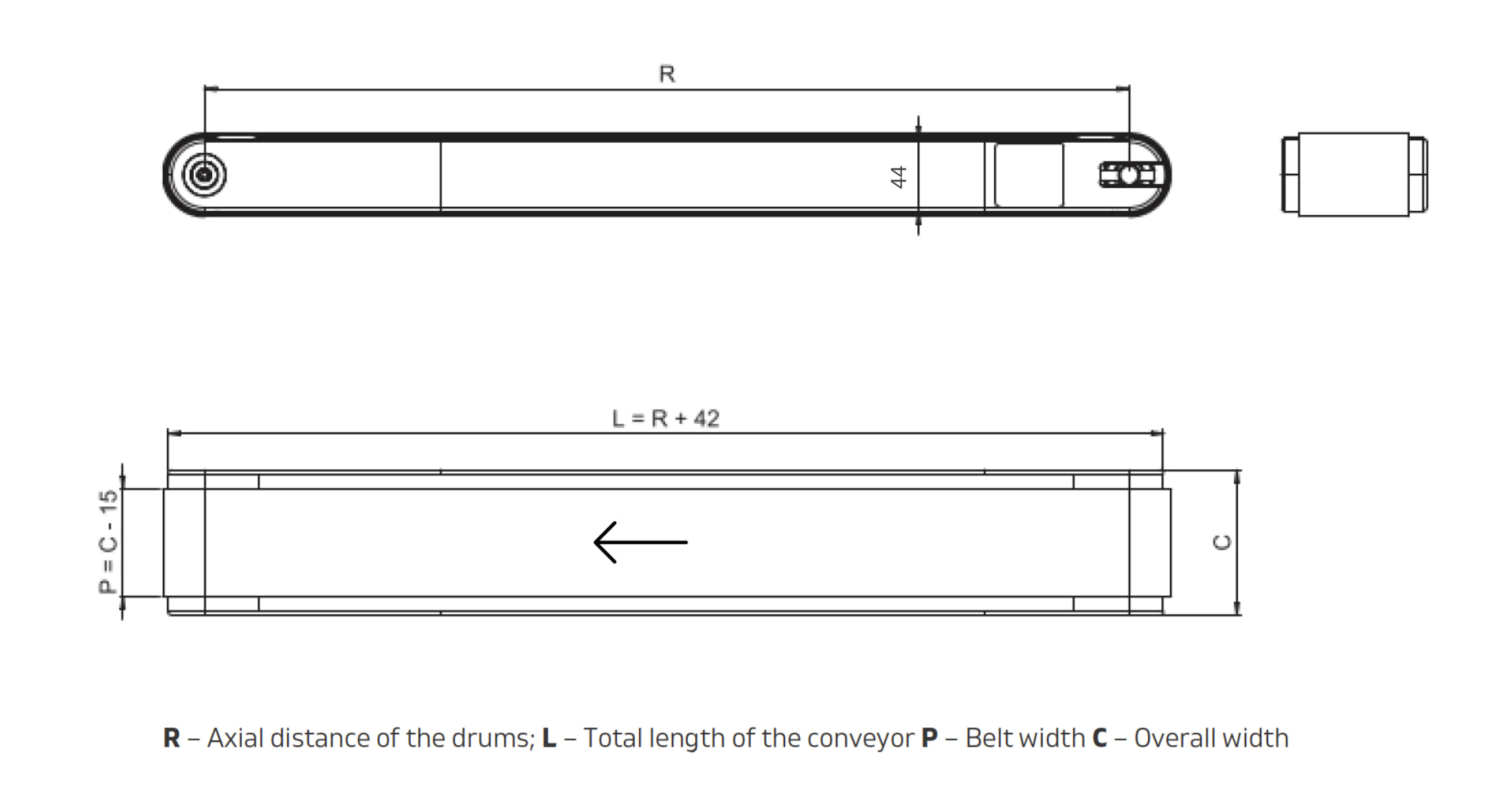

Opmåling



Conveyor length (L) 370-2000 mm
Frame width (C) 80, 100, 120, 140, 160, 180, 200 mm
Conveyor load 5 kg/m
Kør 24 V DC
Belt Speed * 0,2 – 18 m/min
Conveyor Belt Material PVC, PU, textile
Temperature 10 – 60°C
Drum Diameter 44 mm
