| Adjustable Foot 80×40, M12x120 | CADPDFRFQ |
Preview
Adjustable Foot 80×40, M12x120
Spindle, St, bright zinc-plated Base Plate, die-cast zinc, black Hexagon Nut DIN 934 M12-I8I, St, bright zinc-plated
Scope of Delivery
Spindle, St, bright zinc-plated Base Plate, die-cast zinc, black Hexagon Nut DIN 934 M12-I8I, St, bright zinc-plated
Properties
| line 10 | line 10 |
|---|---|
| line 12 | line 12 |
| line 5 | line 5 |
| line 6 | line 6 |
| line 8 | line 8 |
| ESD-safe | No |
| Weight | m = 280 g |
| Force max | Fmax. = 5000 N |
| Delivery unit | 1 pce. |

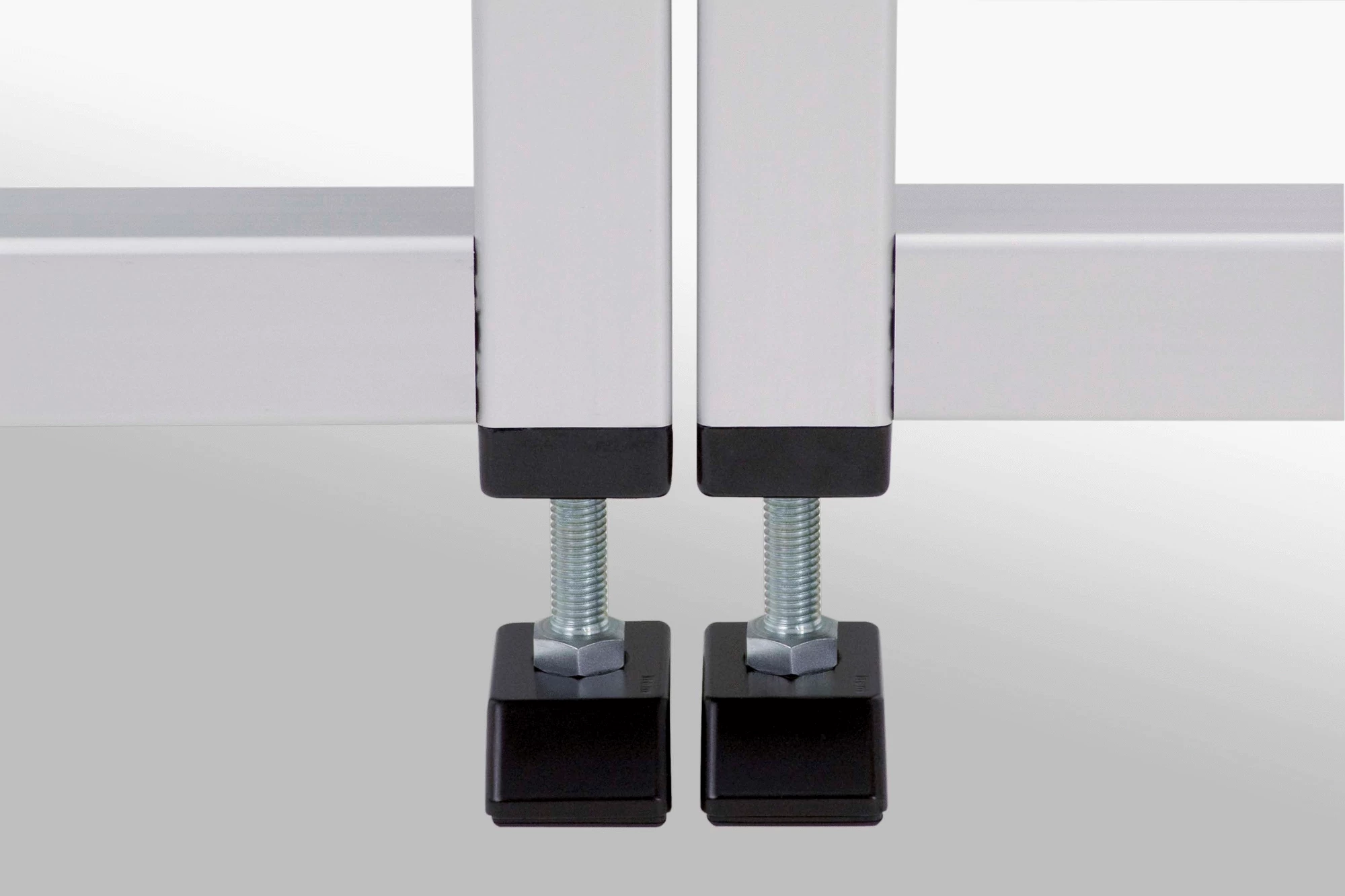

Adjustable Foot 80x40, M12x120 can be adjusted infinitely in height and is fitted with a slewable foot plate in the modular dimension of Line 8. It is therefore particularly suitable for constructions made of Profiles 8 that are installed flush to a wall or other facility.
