| Set CAD-format | ||
|---|---|---|
| Holder for Cables and Hoses 8 | CADPDFRFQ |
Preview
Holder for Cables and Hoses 8
1 Holder for Cables and Hoses 8, black 1 O-ring 22×2, Si (MVQ/VMQ), 60 Shore A 1 Hexagon Socket Head Cap Screw DIN 912-M4x10, St, bright zinc-plated
Scope of Delivery
1 Holder for Cables and Hoses 8, PA, black 1 O-ring 22x2, Si (MVQ/VMQ), 60 Shore A 1 Hexagon Socket Head Cap Screw DIN 912-M4x10, St, bright zinc-plated
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 10 g |
| Delivery unit | 1 set |
| Material | PA |

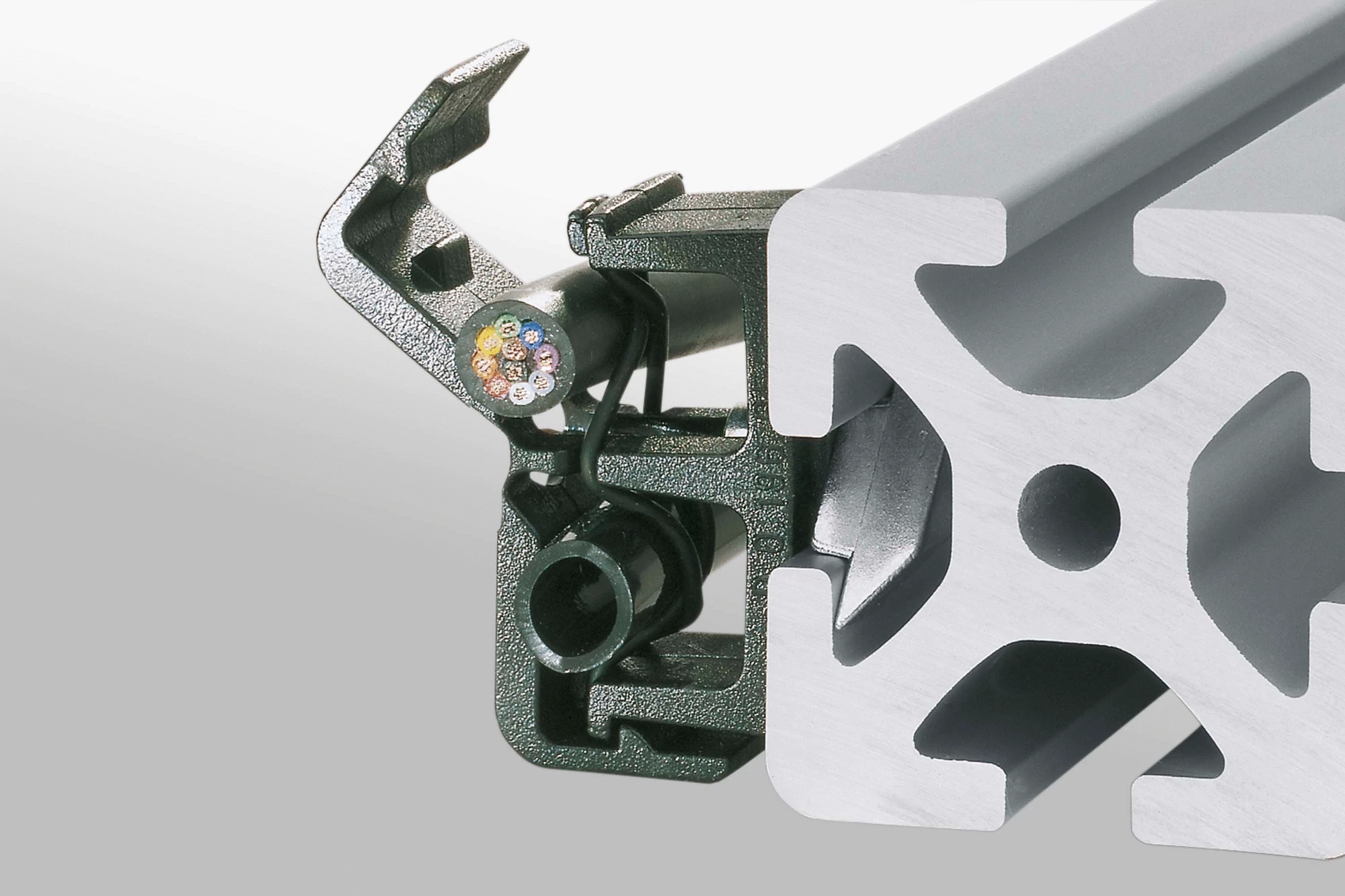

Fastening element with two separate pockets for open routing of cables or hoses up to max. ⌀ 12 mm. Fastening is performed on profiles using Hexagon Socket Head Cap Screw DIN 912-M4 and T-Slot Nut 8 Zn or on panel elements etc. The cable is held in place by the O-ring.
