| Jacking Castor D62 | CADPDFRFQ |
Preview

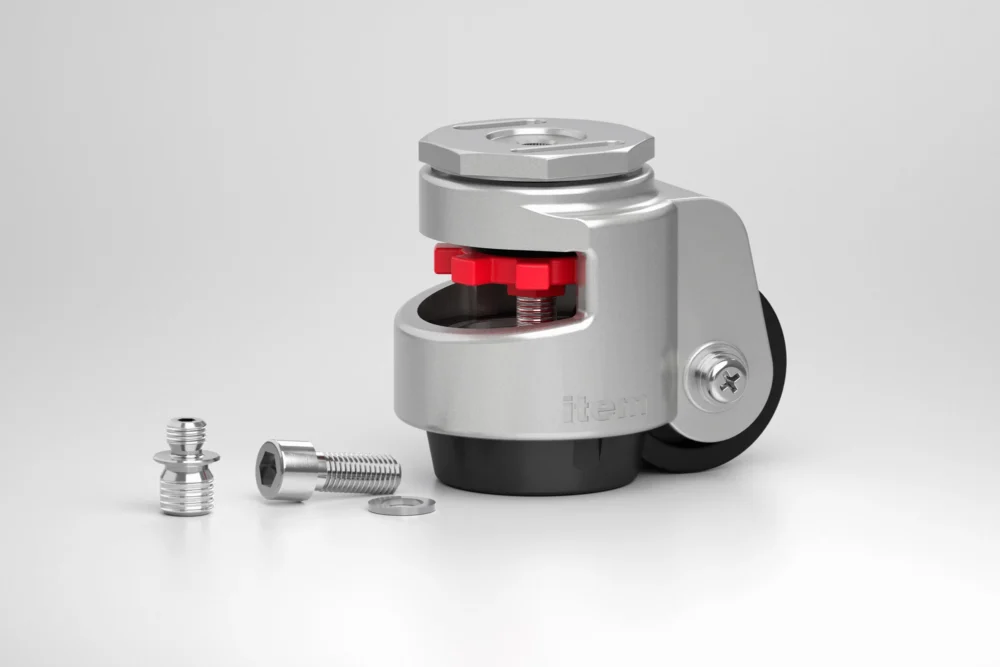

Jacking Castor D62
Housing, die-cast Al, powder-coated RAL 9006 white aluminium Plate, St, bright zinc-plated Knuckle Foot, NBR, black Castor, PA, black Hexagon Socket Head Cap Screw DIN 912 M12x30, St, bright zinc-plated Washer DIN 433 13, St, bright zinc-plated Adapter bolt M12-M16, St, bright zinc-plated
Scope of Delivery
Housing, die-cast Al, powder-coated RAL 9006 white aluminium Plate, St, bright zinc-plated Knuckle Foot, NBR, black Castor, PA, black Hexagon Socket Head Cap Screw DIN 912 M12x30, St, bright zinc-plated Washer DIN 433 13, St, bright zinc-plated Adapter bolt M12-M16, St, bright zinc-plated
Properties
| Line | line X |
|---|---|
| ESD-safe | No |
| Weight | m = 1.2 kg |
| Delivery unit | 1 set |
| Tragfähigkeit (Rolle) | Load-carrying capacity = 340 kg/Castor |

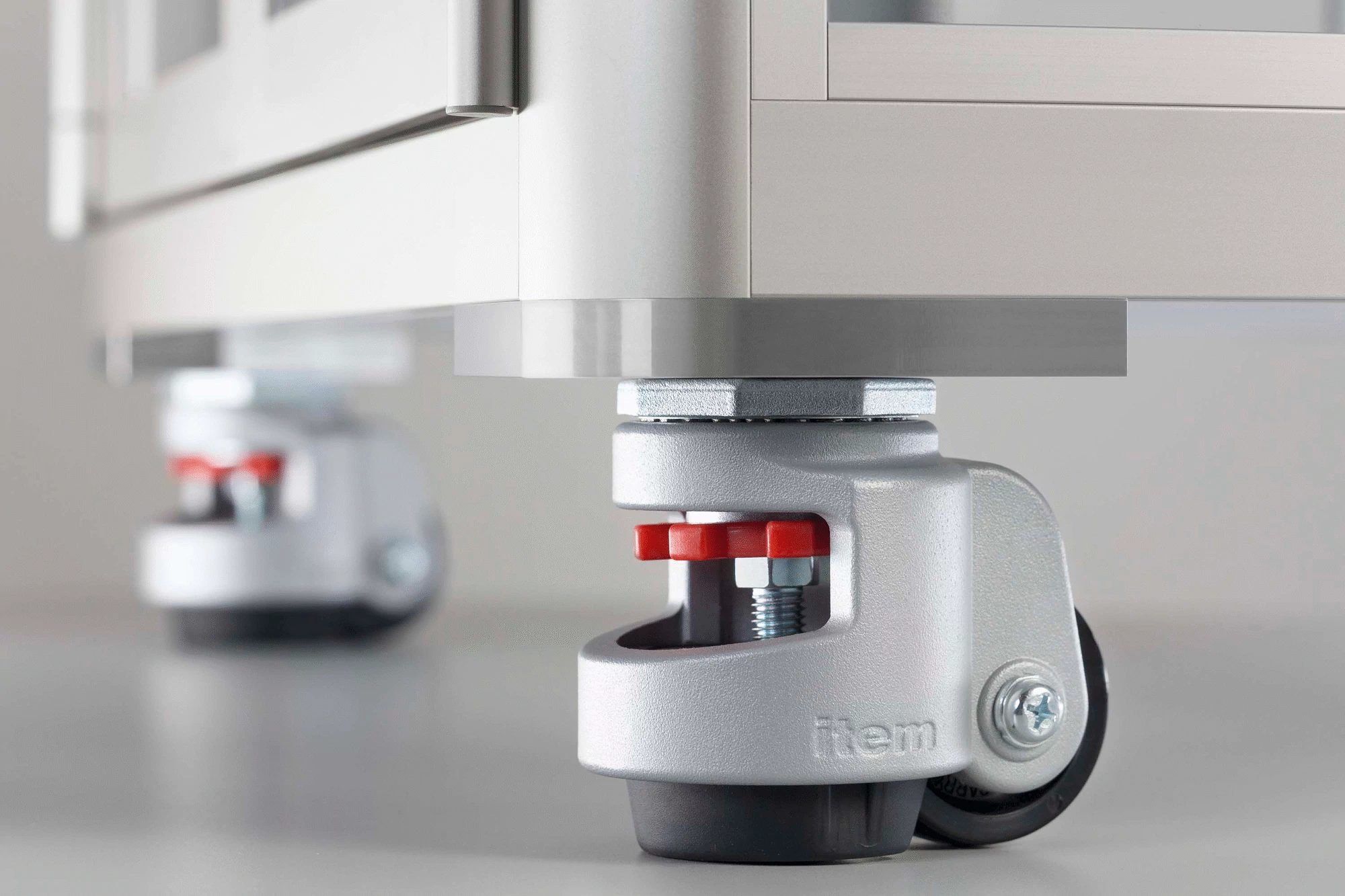

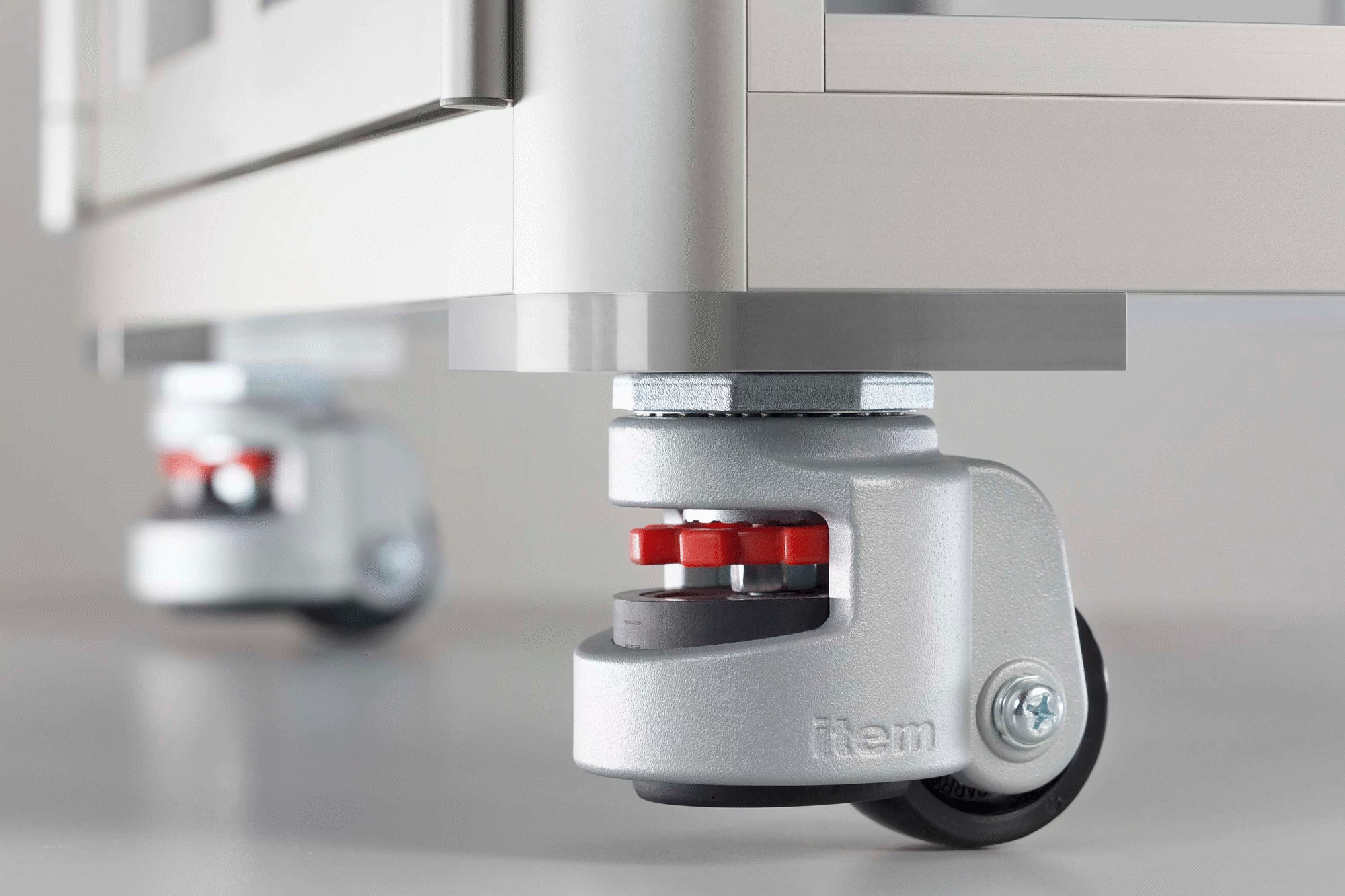

Can you have a footing that is rock solid, and yet movable? You can with the item Jacking Castor! This product combines a castor with a height-adjustable, non-slip knuckle foot. It enables personnel to move work benches, laboratory equipment and racks to precisely where they are needed. And when they get there, the integrated knuckle foot is simply lowered into position to ensure nothing shakes around or slips. Jacking Castors D62 are designed to accommodate loads up to 3400 N. The height adjustment function can be operated via an integrated adjustment wheel or using a wrench (17 A/F). The knuckle foot can compensate for a difference in height of up to 12 mm.
Jacking Castor D62 can be fitted directly to any Base Plate with an M12 and M16 thread using the enclosed Hexagon Socket Head Cap Screw and washer. When using base plates with an M16 thread, the mounting sequence is not a factor.
Ensure the correct assembly sequence is followed when using Base Plates with an M12 thread.
