| Universal-Butt-Fastening Set 8, stainless | CADPDFRFQ |

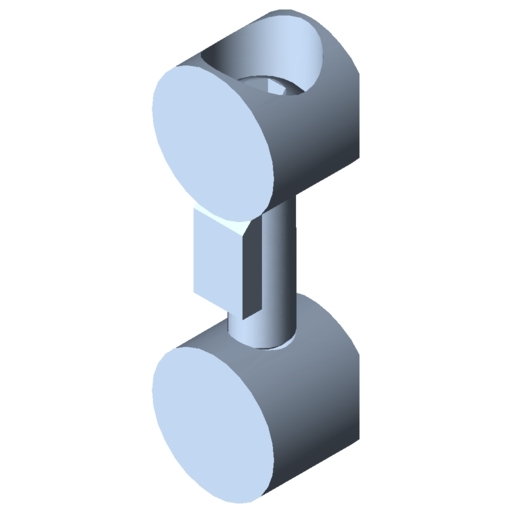

Preview

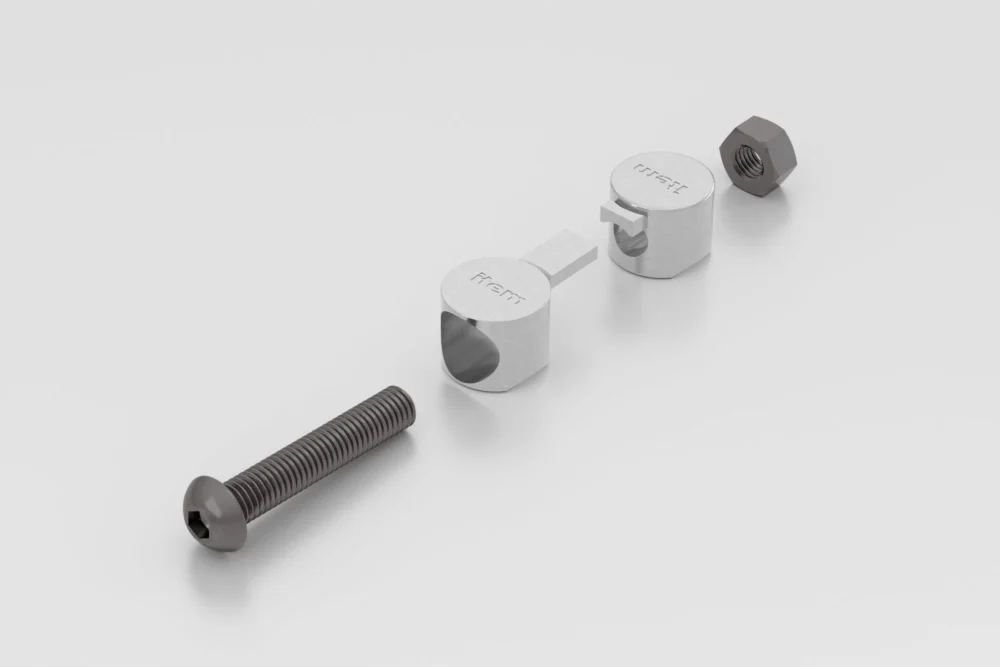

Universal-Butt-Fastening Set 8, stainless
2 Universal Fastener 8, die-cast zinc Button-Head Screw ISO 7380-M8x45, St Hexagon Nut DIN 934-M8, St
Scope of Delivery
2 Universal Fastener 8, die-cast zinc Button-Head Screw ISO 7380-M8x45, St Hexagon Nut DIN 934-M8, St
Properties
| line 8 | line 8 |
|---|---|
| Property | stainless |
| ESD-safe | Yes |
| Weight | m = 60 g |
| Delivery unit | 1 set |
| Tightening torque, stainless | Mstainl. = 20 Nm |
The Universal-Butt-Fastening Sets can be used to connect the end faces of two profiles from the same Line. Universal-Butt-Fastening Sets should always be used in pairs. Depending on the profile size and load, several pairs may be necessary. Connection processing of the profiles is the same as for the Universal-Fastening Sets.
Universal-Fastening Sets should always be used in pairs.
