Door Stop 8

2 Door Stops, PA-GF, black 4 Hex. Socket Head Cap Screw DIN 6912-M4x12, St, bright zinc-plated 4 T-Slot Nuts 8 St M4, bright zinc-plated

Tootekood: 0.0.486.72 Kategooria: Silt:
Set CAD-format
Door Stop 8CADPDFRFQ

Preview

Scope of Delivery

2 Door Stops, PA-GF, black 4 Hex. Socket Head Cap Screw DIN 6912-M4x12, St, bright zinc-plated 4 T-Slot Nuts 8 St M4, bright zinc-plated

Properties

line 8line 8
ESD-safeNo
Weightm = 76 g
Delivery unit1 set

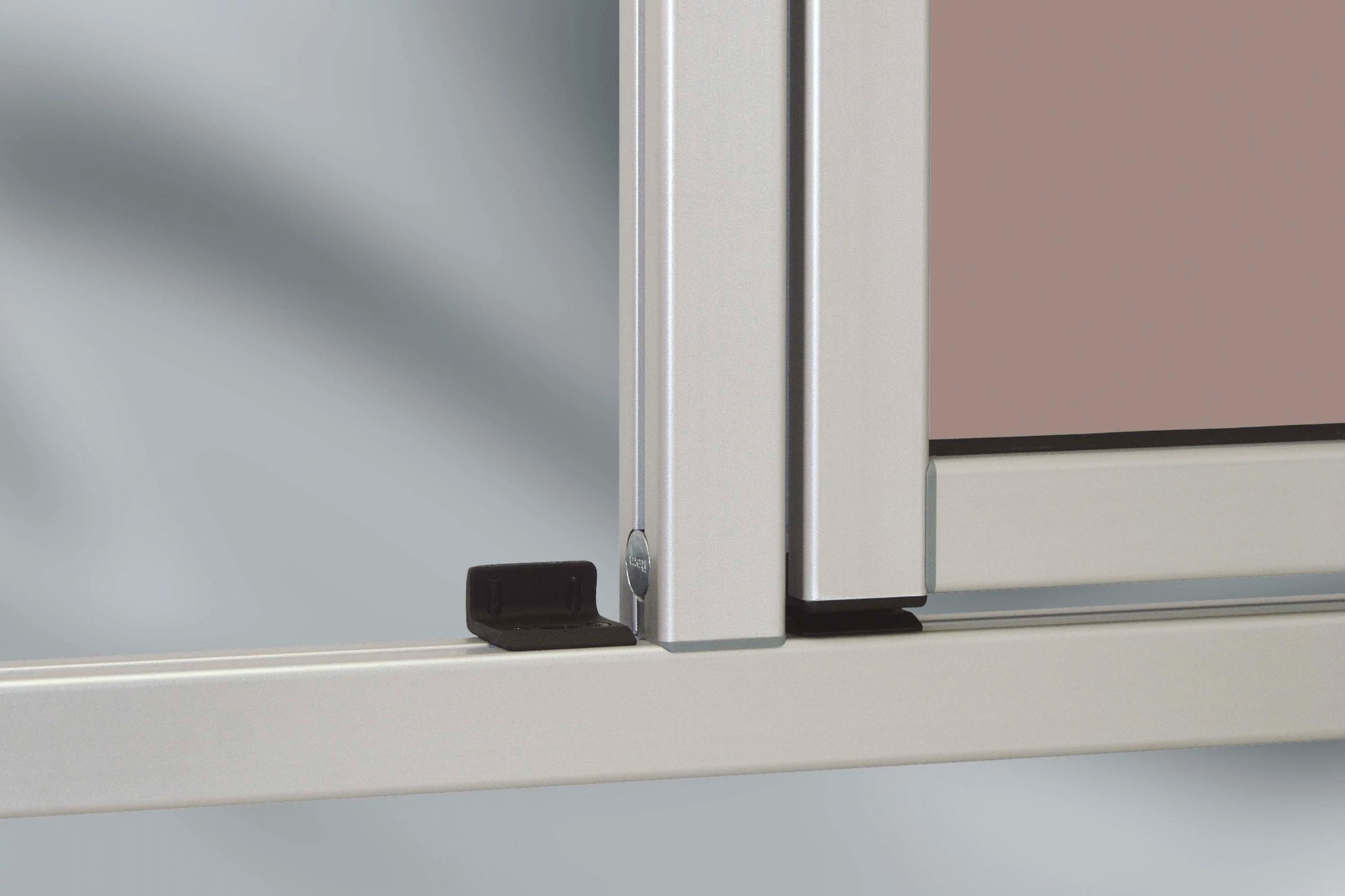

The Door Stop is an additional system element for limiting the movement of framed doors in enclosures etc. The slot of the central through bore is designed to take the pin of Rod Latch 8. Once the door has been swung against the Door Stop, this secures the door in position without scratching or damaging the profiles. The Door Stop is designed to work with a modular 40 mm door and fastens to the outer frame providing a lead-in edge to guide the door. When designing the size of the door, the thickness of Door Stop 8 (4.5 mm) should be taken into account. The Door Stop is fitted with 2 elastomer inserts to dampen the contact between the door and the Door Stop.
