Connection Profile Brace 8 240-45°

Brace right Brace left 2 Hexagon Socket Head Cap Screws DIN 912-M8x60, St, bright zinc-plated 2 Hexagon Nuts DIN 934-M8, St, bright zinc-plated a min. = 38 mm (recommended 40 mm) b min. = 76 mm (recommended 80 mm)

Tootekood: 0.0.458.21 Kategooria: Silt:
Set CAD-format
Connection Profile Brace 8 240-45°CADPDFRFQ

Preview

Scope of Delivery

Brace right Brace left 2 Hexagon Socket Head Cap Screws DIN 912-M8x60, St, bright zinc-plated 2 Hexagon Nuts DIN 934-M8, St, bright zinc-plated a min. = 38 mm (recommended 40 mm) b min. = 76 mm (recommended 80 mm)

Properties

line 8line 8
ESD-safeNo
Weightm = 846 g
Delivery unit1 set
MaterialAl, anodized, natural

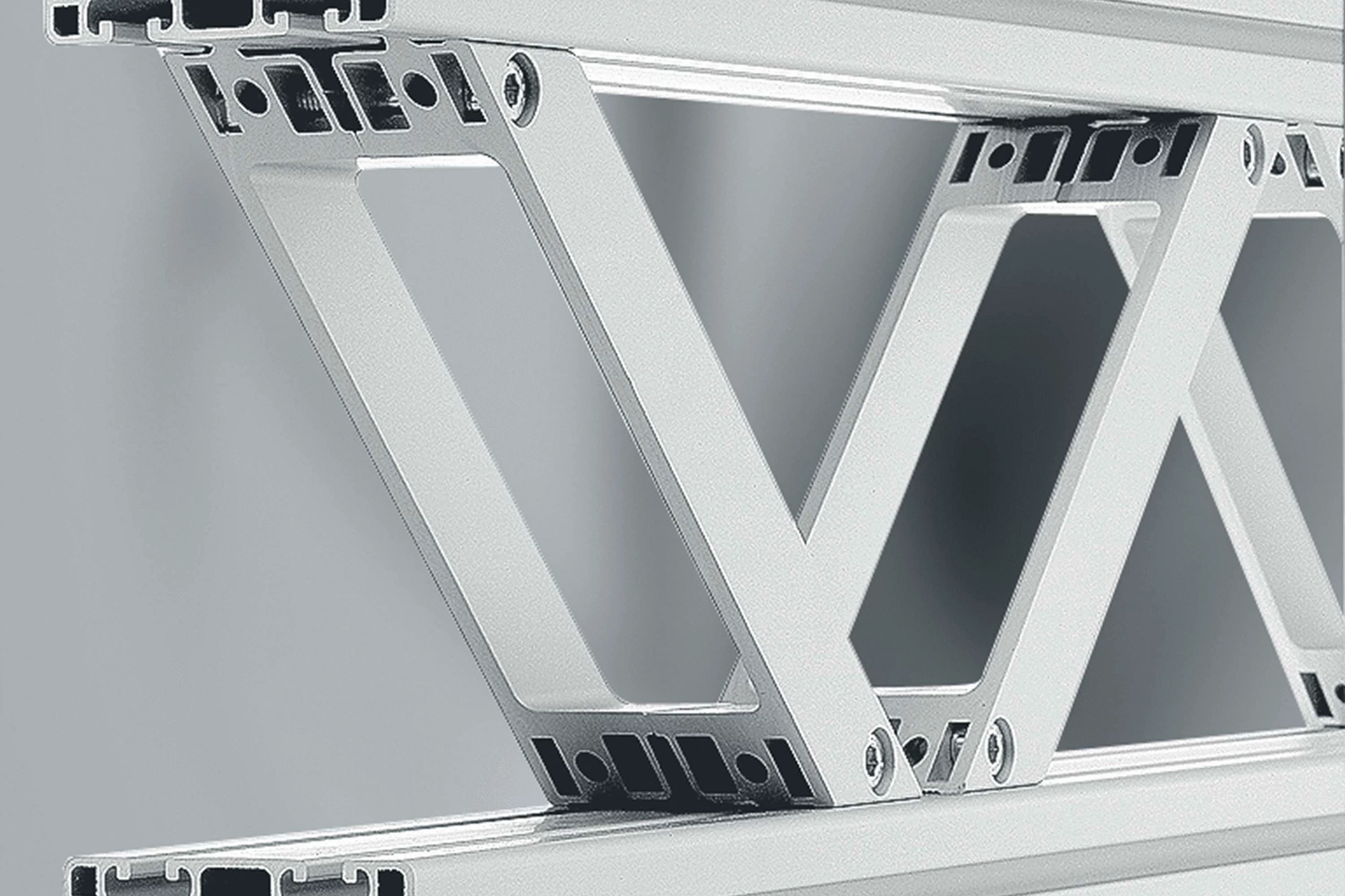

The Connection Profile Braces (45° sections of the Connection Profiles) are suitable for constructing lightweight, open "composite profiles". These Connection Profile Braces consist of left and right diagonal sections together with the corresponding nuts and bolts. They can be retrofitted at any point and any distance (dimension a / b) along the profiles which are being joined. With a fixed spacing of 160 or 240 mm, the Connection Profiles Braces represent an inexpensive alternative to the latticework construction.
