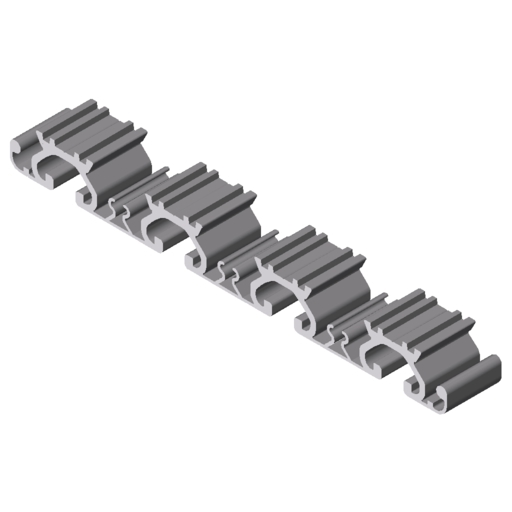

Support Profile 160 with grooves 8, natural

Configurated product data

Nothing generated yet

You must configurate your product below before requesting quote
Tootekood: 0.0.265.85 Kategooria: Silt:
Set CAD-format
0.0.265.85

Preview

Properties

line 8line 8
ESD-safeYes
Cross-sectional areaA = 8.27 cm2
Weightm = 2.23 kg/m
Delivery unitcut-off max. 3000 mm
MaterialAl, anodized
Colournatural
160x160 mm conduit using Support Profile 160 with grooves as a base.
Wall Profiles and Lid Profiles can be secured in position by means of Self-Tapping Screw St 4.2x9.5. The Support Profiles must be provided with a bore ⌀ 3.5 mm in the marking groove for this purpose. The screw connection creates a conductive bond between the conduit elements.
MB Building Kit System
