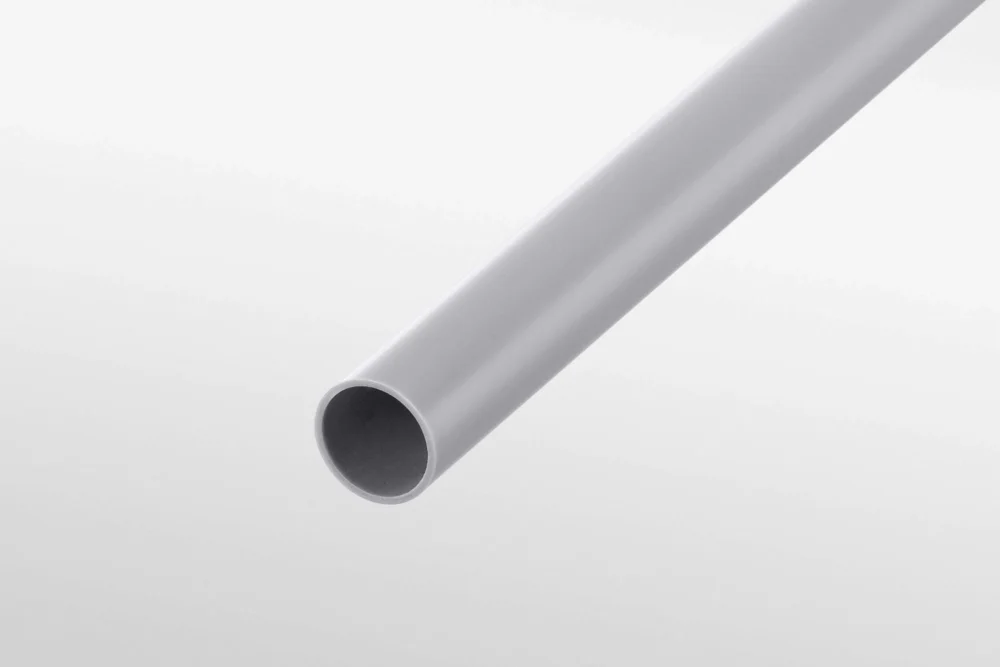

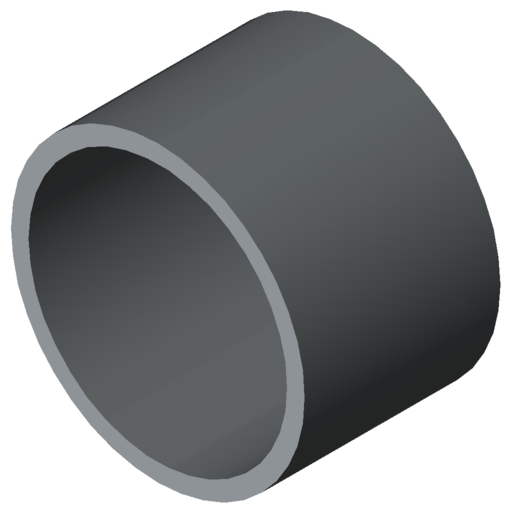

Tube D30x1.8 KU, grey similar to RAL 7042
Configurated product data
Nothing generated yet
You must configurate your product below before requesting quoteProperties
| Line | Line D30 |
|---|---|
| ESD-safe | No |
| Cross-sectional area | A = 1.59 cm2 |
| Moment of Inertia, torsional | It = 3.18 cm4 |
| Moment of Inertia, x-axis | Ix = 1.59 cm4 |
| Moment of Inertia, y-axis | Iy = 1.59 cm4 |
| Weight | m = 0.22 kg/m |
| Delivery unit | cut-off max. 6000 mm |
| Material | PVC |
| Colour | grey similar to RAL 7042 |
X max Al = 600 mm X min Al = 55 mm F max Al = 100 N X max KU = 400 mm X min KU = 55 mm F max KU = 50 N
