| Tool Slide 40×40 | CADPDFRFQ |
Preview
Tool Slide 40×40
Slide 2 Limit Stops 8 40×40 Fastening materials
Scope of Delivery

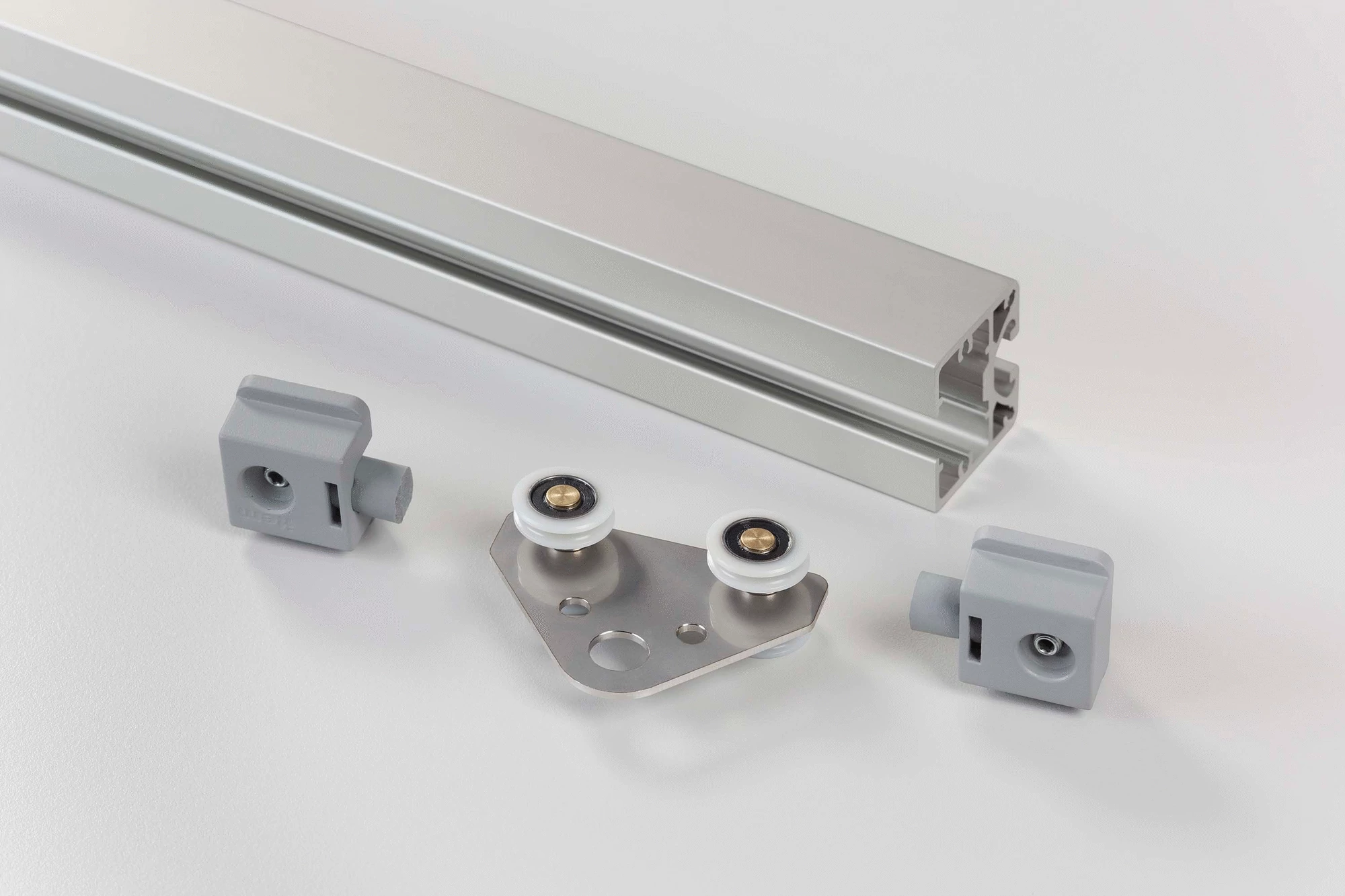

1 Slide 2 Limit Stops 8 40x40 Fastening materials
Properties
| Line | Work Bench System |
|---|---|
| line 8 | line 8 |
| ESD-safe | No |
| Weight | m = 101 g |
| Delivery unit | 1 set |

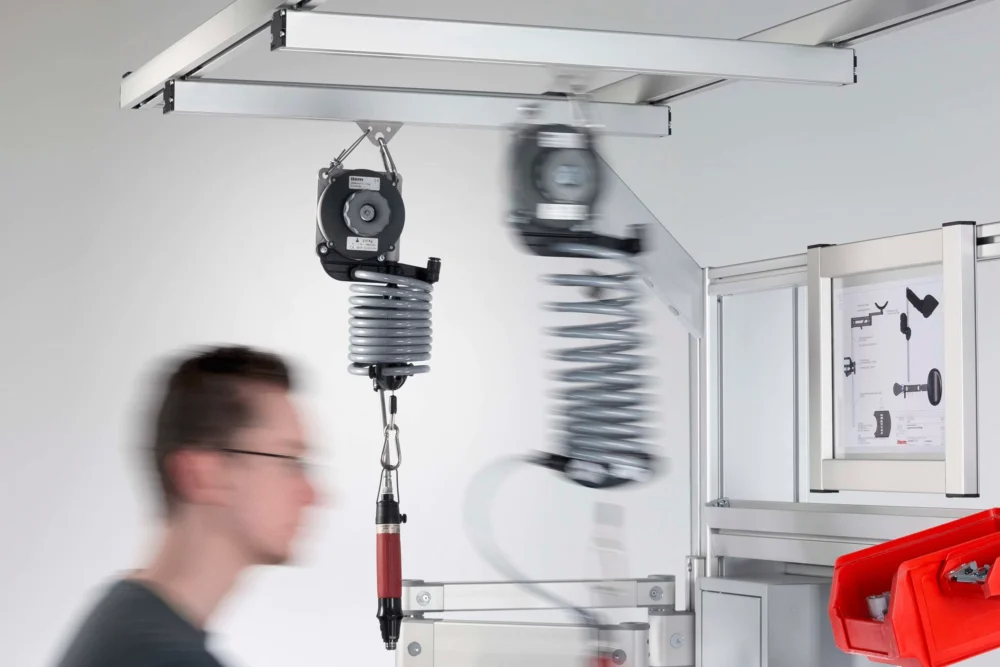

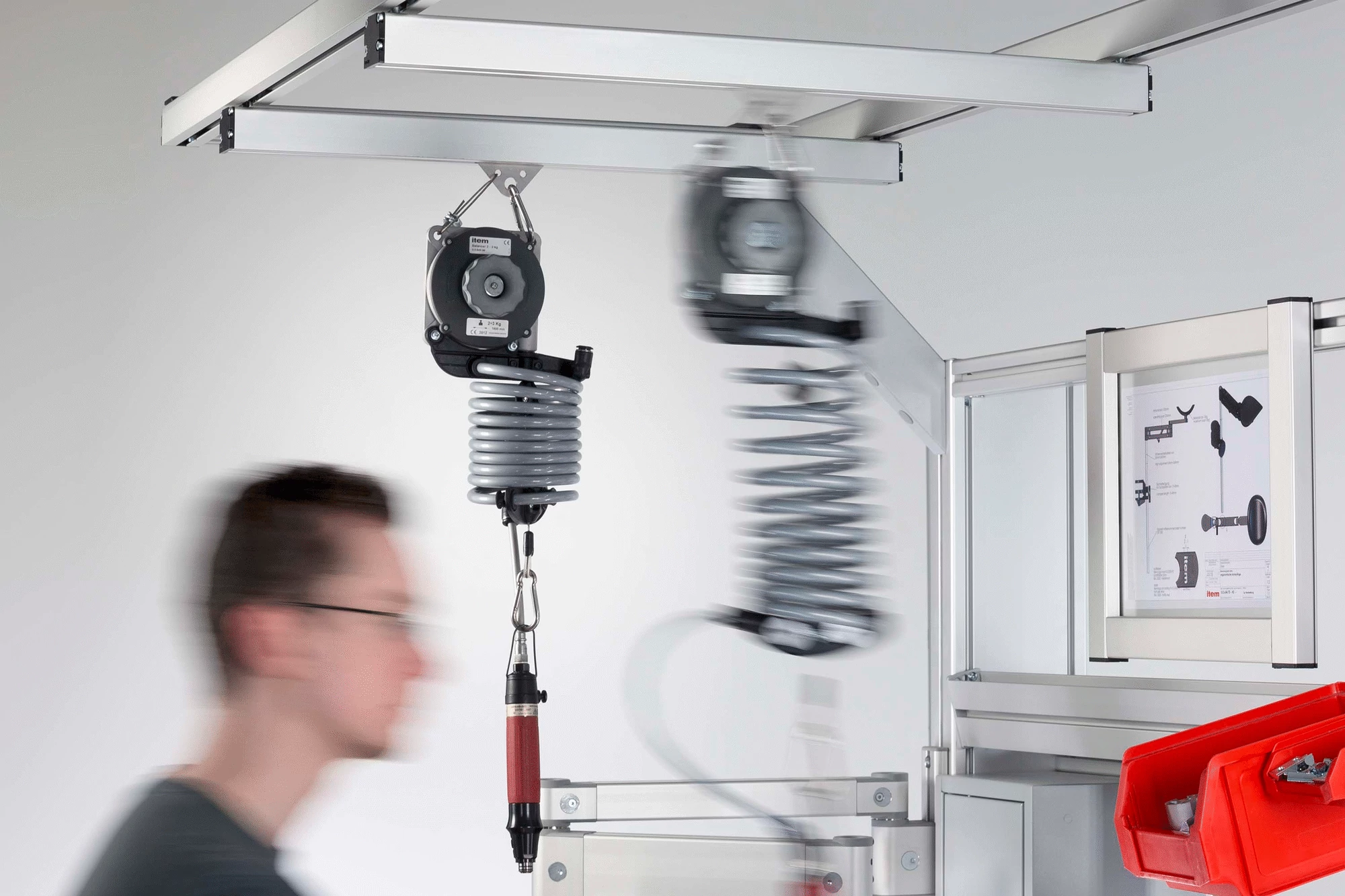

Tool Slide 40x40 is used in combination with Runway Profile 8 40x40 (0.0.623.61). The quadruple ball-bearing Tool Slide makes it exceptionally easy for users to move tools or fixtures to where they are needed. The Limit Stop buffers ensure the slide is brought to a gentle stop.
The corrosion-resistant Spring Hooks enable easy attachment to the Runner and rapid tool changes. - Spring Hook 60 D6: Recommended max. tensile force F = 100 N - Spring Hook 80 D8: Recommended max. tensile force F = 200 N
