| Set CAD-format | ||
|---|---|---|
| Seal 8 80×40, orange | CADPDFRFQ |
Preview
Seal 8 80×40, orange
self-adhesive on one side
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 1 g |
| Delivery unit | 1 pce. |
| Colour | orange |

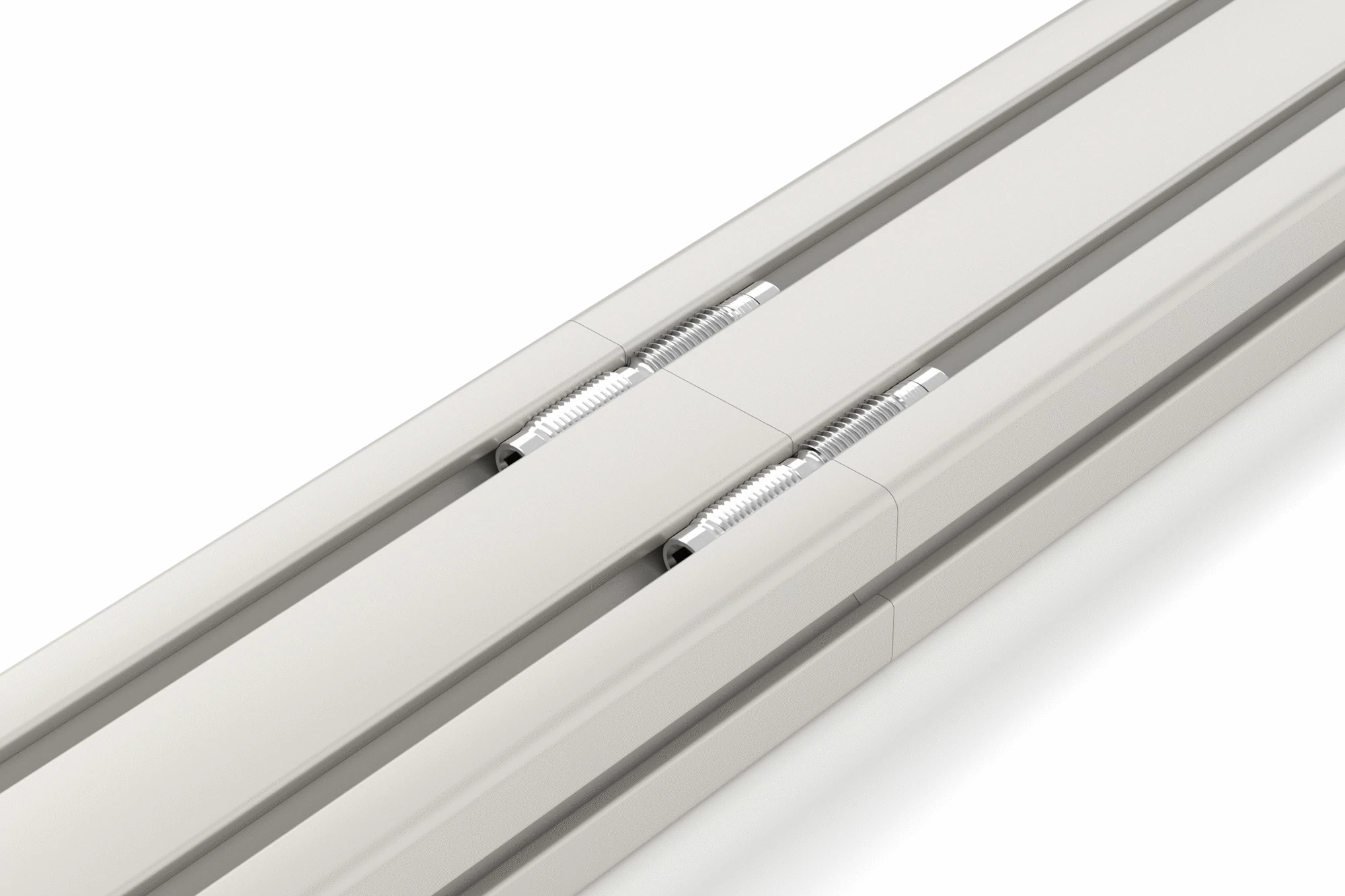

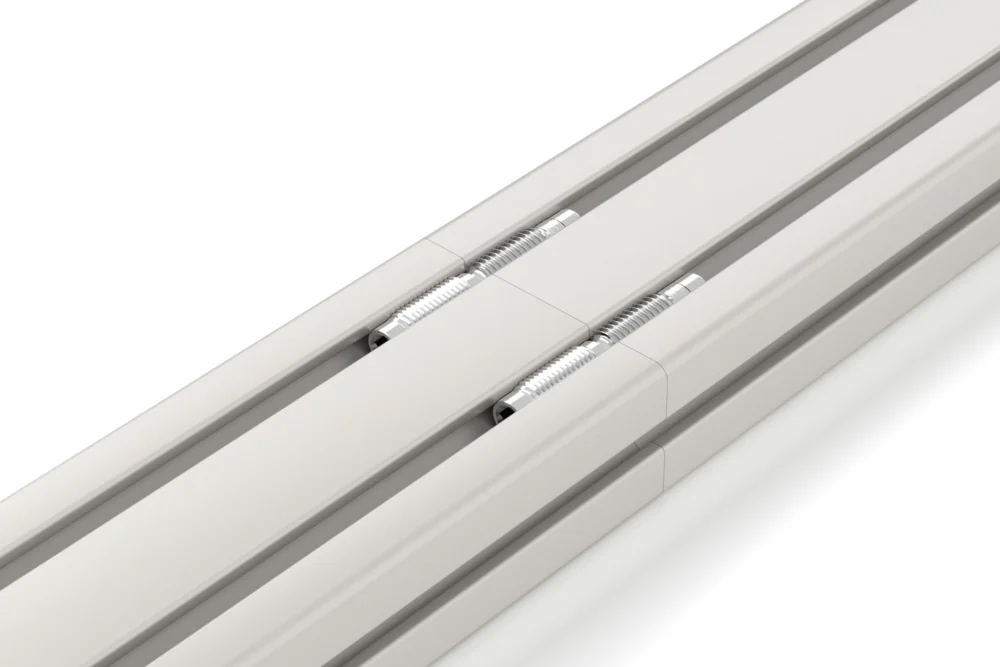

Seals PE must be located at every connection point between components functioning as pneumatic lines. The settlement of the Seal PE material can result in an initial reduction in the screw pretension. The screws must therefore be tightened after 24 hours. Self-adhesive versions facilitate assembly and eliminate pronounced unevenness (saw cuts, butt joints etc.).
Seals PE must be used between all joints.
