T-Slot Nut 8 St M4, stainless
Properties
| line 8 | line 8 |
|---|---|
| Property | stainless |
| ESD-safe | Yes |
| Thread | M4 |
| Weight | m = 11 g |
| Force perm. | Fper. = 2000 N |
| Delivery unit | 1 pce. |
| Material | St |
| Torque | M = 3.2 Nm |

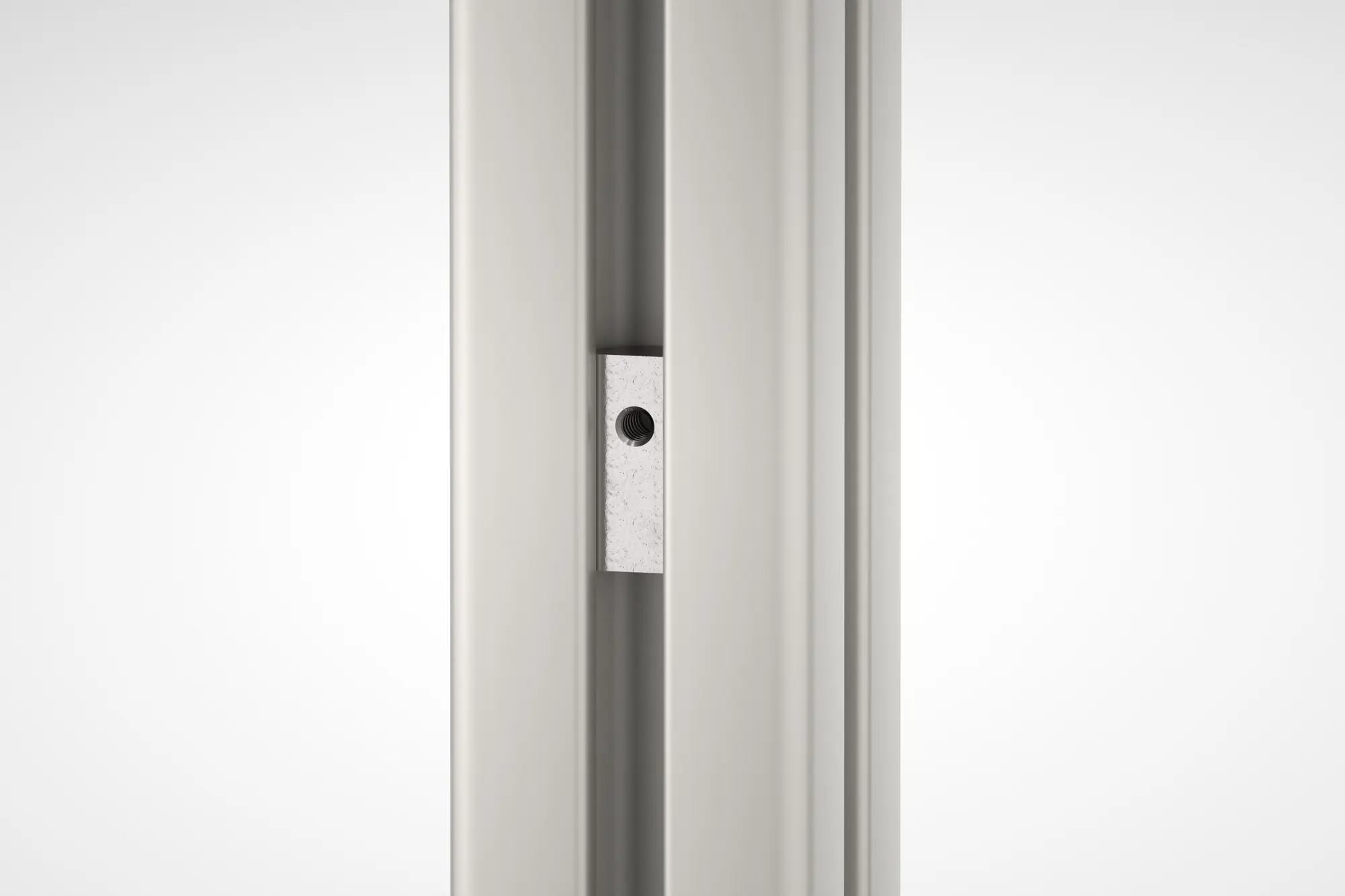

item T-Slot Nut 8 St M4, stainless is a universal fastening element with an M4 thread. This T-Slot Nut made of stainless steel can be twisted into place at any point along the Line 8 profile groove and is held in position by a spring-mounted thrust piece.
T-Slot Nuts with different features but the same thread size are available for this line. Note: When selecting the appropriate variant, you should bear in mind the load-carrying capacity of the entire system comprising T-Slot Nut, groove flank and screw.
T-Slot Nuts with anti-torsion device have a raised section in the middle that extends into the groove opening. As a result, these T-Slot Nuts automatically position themselves along the groove.
T-Slot Nuts St are inserted into the profile groove where they are secured in position by means of thrust pieces.
