Stand Foot 8 240×160, black

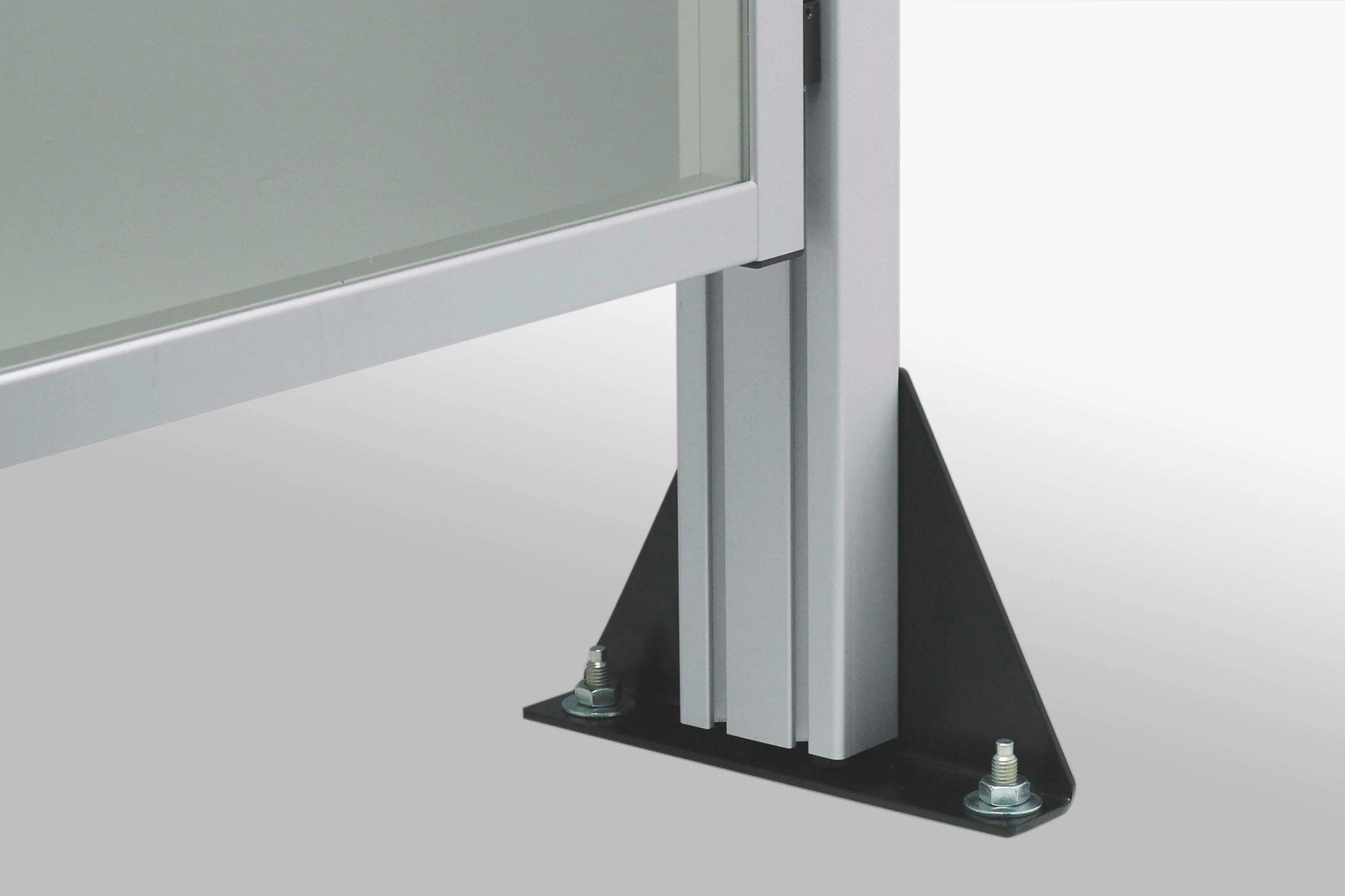

Stand Feet 8 240x160 are a particularly cost-effective and sturdy means of securing the stand profiles of free-standing enclosures and guards to the floor. The Stand Feet are secured to the stand profiles by screwing them to the profile grooves. Line 8 Profiles, preferably with a cross-section of 80x40 mm or larger, are used for the stand profiles. The diameter 18 mm through holes for securing the Stand Feet to the floor can also be accessed after the feet have been installed and enable subsequent drilling of the anchoring holes. To ensure that high loads are directed into the floor, use of Floor-Fastening Sets M12x150 is recommended.

The slot fastening feature near the bottom of the Stand Foot can be used to adjust the angle in order to compensate for uneven floors (± 5°).

The height can be adjusted by means of a screw inserted into a thread in the core bore in the end face of the stand profile.
