Standard-Fastening Set 6 K

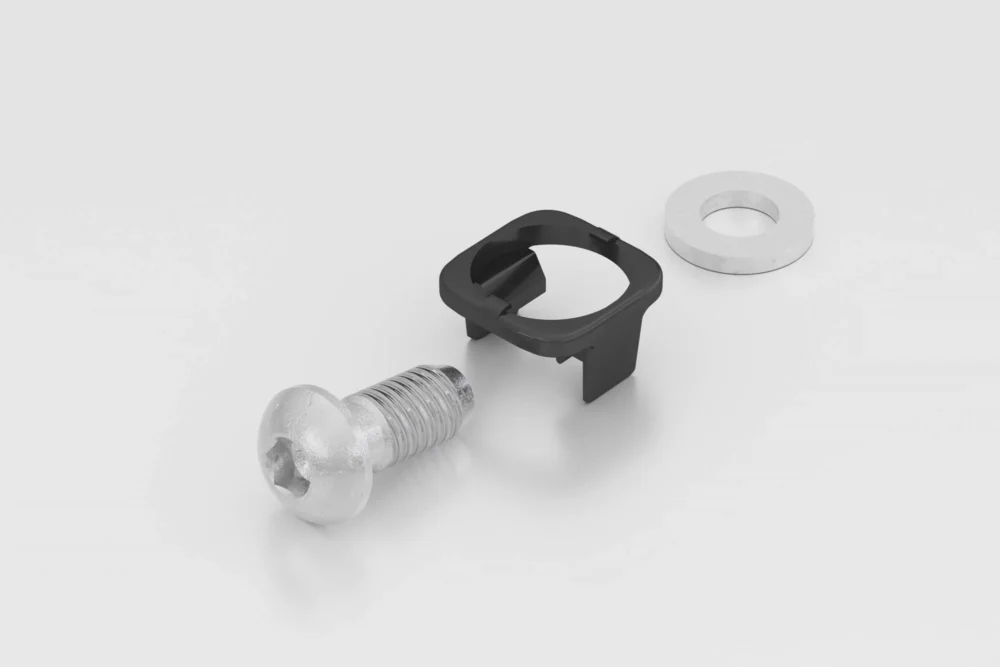

1 spacer, POM, black 1 Special Button-Head Screw similar to ISO 7380 M6x14, St 1 Washer ISO 7089 – 6 – 200 HV, bright zinc-plated
Scope of Delivery
1 spacer, POM, black 1 Special Button-Head Screw similar to ISO 7380 M6x14, St 1 Washer ISO 7089 - 6 - 200 HV, bright zinc-plated
Properties
| Torque | M = 10 Nm |
|---|---|
| line 6 | line 6 |
| ESD-safe | No |
| Weight | m = 5 g |
| Delivery unit | 1 set |
| Material | POM |
Standard-Fastening Set 6 K from item joins two Line 6 profiles at a right angle. The plastic spacer takes up minimal space in the grooves, which are left free on all sides. A thread needs to be tapped into the core bore of the first profile to install the fastener. The second profile requires an installation bore and is connected in a fixed position. Please note the load-carrying capacity, which is different to that of Standard-Fastening Set 6.
Compared to other fasteners, Standard Fasteners protrude into the groove to a minimal extent only. Standard-Fastening Set 6 features a double-sided anti-torsion feature as standard, but is also available in variants that have either a connecting plate that is shortened on one side or a compact centring aid (K). The variants leave one or both grooves of the aluminium profiles free. Standard-Fastening Sets 6 are also available in an ESD-safe design to help dissipate electrostatic charges.
Installation with flush-mounted profile end face
Installation with flush-mounted profile cap
Installing a crossmember
