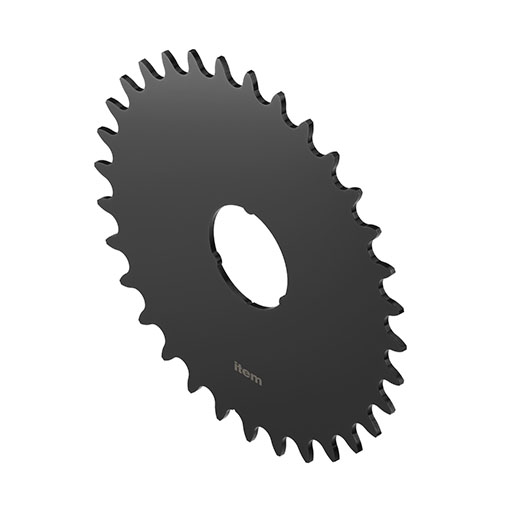

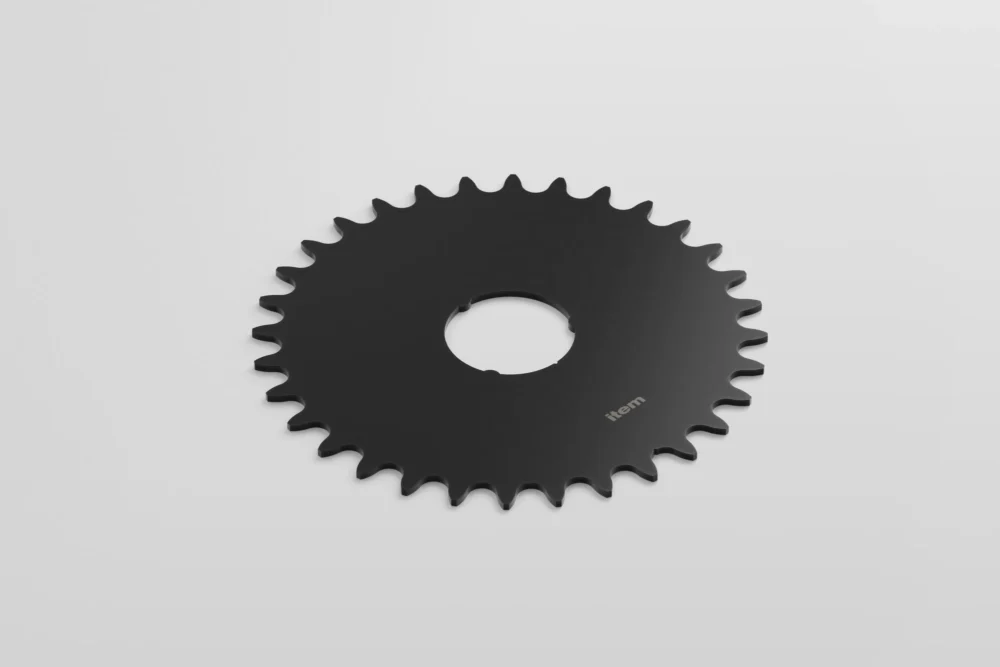

Sprocket Wheel z32 D34.8-2
Sprocket Wheel z32 D34.8-2 - Pilt 2

Sprocket Wheel z32 D34.8-2

Tootekood: 0.0.727.95 Kategooriad: , Silt:
Määrake CAD-vorming
Sprocket Wheel z32 D34.8-2CADPDFRFQ

Eelvaade

Properties

LineLine D30
ESD-safeJah
Kaalm = 186 g
Delivery unit1 pce.
MaterjalSt, black
cleanroom suitabilityEi
Presentation2026-03-24T00:00:00

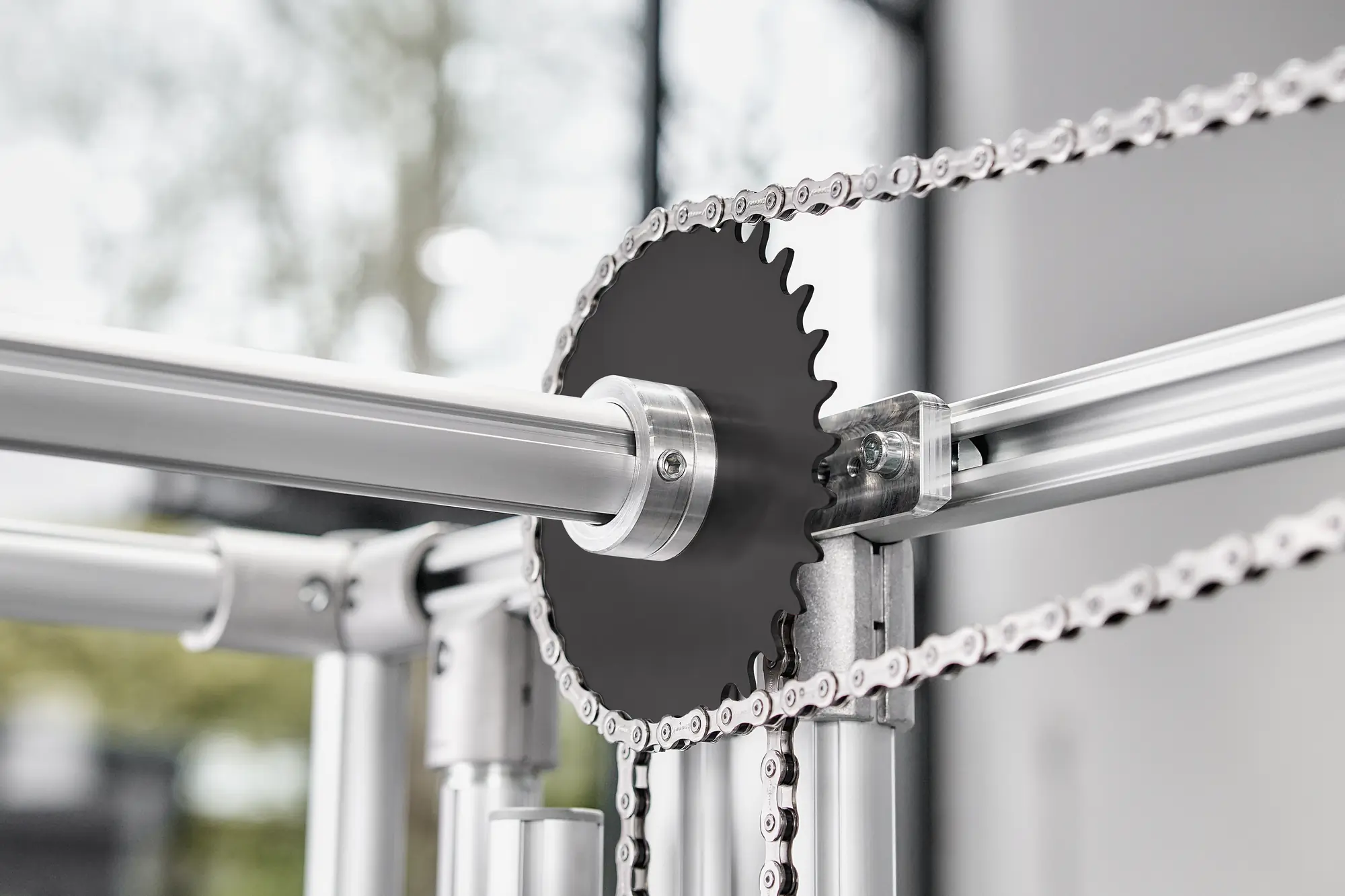

Sprocket Wheel z32 D34.8-2 transmits the movement of a Chain 1/2" (0.0.465.17) to a Profile Tube. It is fastened in place using Adapter Sleeve D30-43 M35 (0.0.714.50). The product can be combined with Sprocket Wheel z16 D34.8-5.2 (0.0.714.48) to double or halve rotational speed and torque in order to configure Karakuri/LCA applications with precision. The transmission ratio means, for example, that a Braking Roller D52-112 M6 z16 (0.0.718.59) can be supported in order to enhance process reliability.
