| Label Hanger D30-100 | CADPDFRFQ |
Preview
Label Hanger D30-100
Label Hanger Profile H42, 100 mm, PVC, transparent Label Hanger Clip D30, St, bright zinc-plated
Scope of Delivery
Label Hanger Profile H42, 100 mm, PVC, transparent Label Hanger Clip D30, St, bright zinc-plated
Properties
| Line | Line D30 |
|---|---|
| line 5 | line 5 |
| ESD-safe | No |
| Weight | m = 21 g |
| Delivery unit | 1 set |

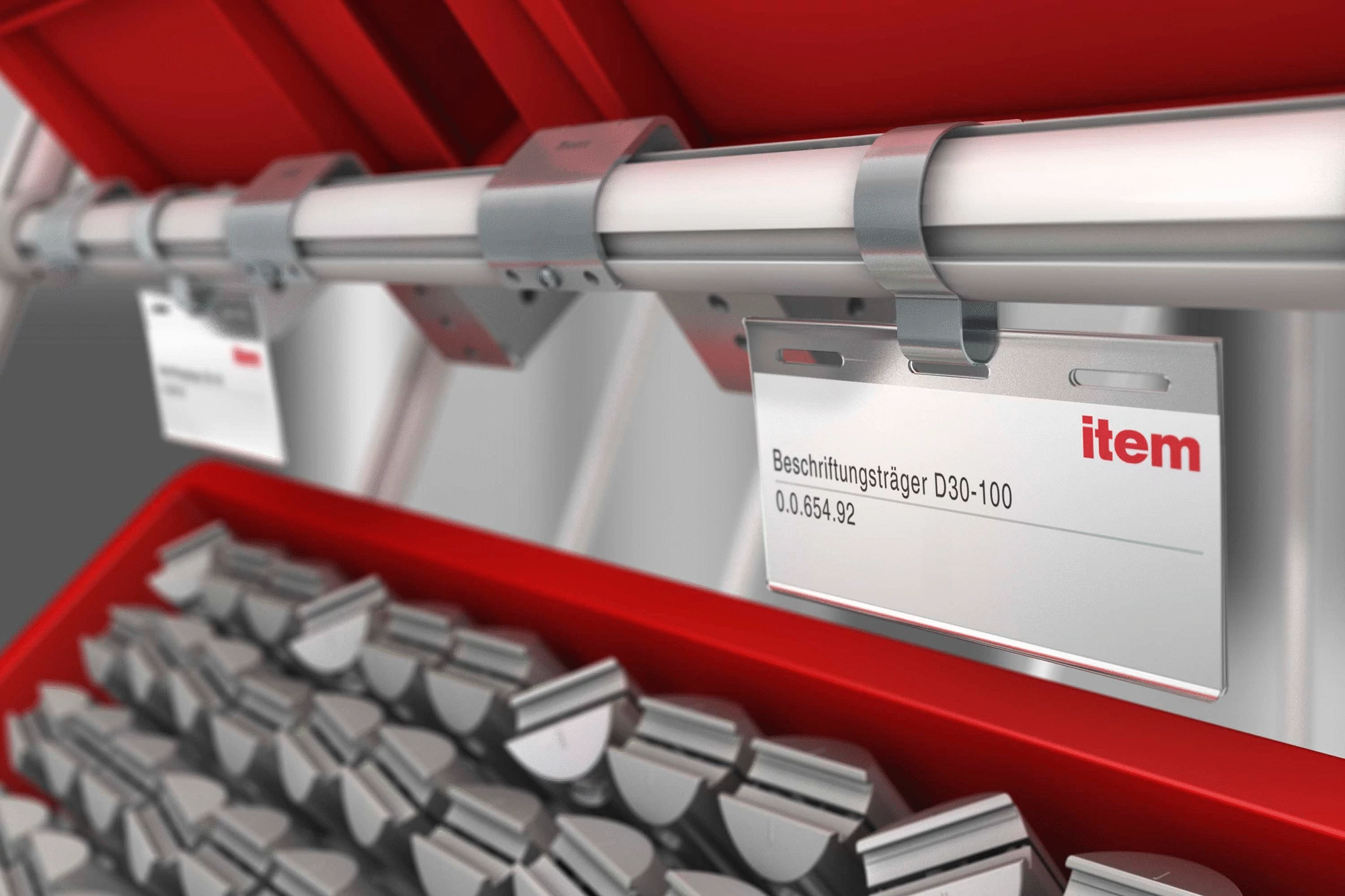

Order and speed with minimal space requirements: Label Hangers D30 are fastened in place using Label Hanger Clip D30 and hang down under the (profile) tube. This leaves the profile itself free for other uses. The label can easily be used elsewhere if storage locations are changed around, for example. The practical Label Hanger is available in two widths. Both variants protect cards or strips of paper safely with tough PVC. The transparent hangers are open along the top edge, thereby ensuring labels can be inserted with ease. Label Hanger D30-100 is 102 mm wide and can be secured to a Clip using the pre-perforated slots. Label Hanger Profile H42 can be used to mount labels in any length up to 2000 mm. Depending on length and the stress on the hanger, one or more Label Hanger Clips D30 can be used. The reusable fixing is simply clipped on and holds firm with no need for a screw fixing.
