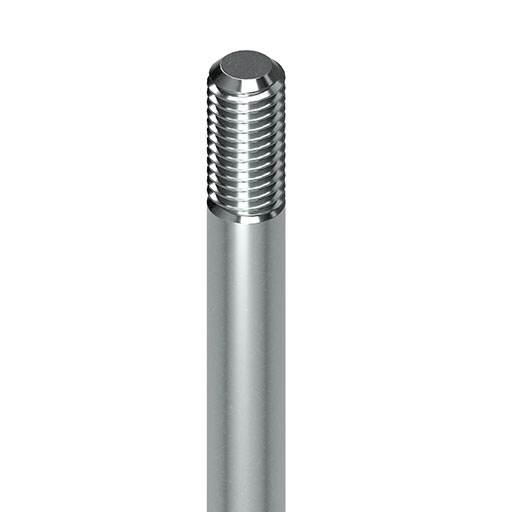

Round Bar D10 M10 -1500
Tootekood: 0.0.728.94
Kategooriad: New Products MB Building Kit System, Access Door
Silt: Staatiline
Properties
| ESD-safe | Ei |
|---|---|
| Kaal | m = 925 g |
| Delivery unit | 1 pce., length 1500 mm |
| Materjal | St, bright zinc-plated |
Round Bar D10 M10 -1500 is a torsion-resistant steel bar with an external M10 thread at one end. It is used with Flush Bolt 40 (0.0.728.27) to lock the inactive leaf of an item Double Door. Two round bars are twisted into the flush bolt and run through the inside of Door Profile 8 80x40 (0.0.727.36).
A Double Access Door consists of an item Access Door 8 and a lockable inactive door leaf. Together, these elements create lockable access points that are large enough to allow the movement of particularly tall structures or wide objects. The Double Access Door can also be opened and closed from both sides and features an all-round seal. The door can be integrated into a frame made of Line 8 profiles with ease.
item Double Access Door 8 is based on components that have been carefully coordinated to produce highly functional door solutions.
