| Ring Bolt D10 M6x25 | CADPDFRFQ |
Preview

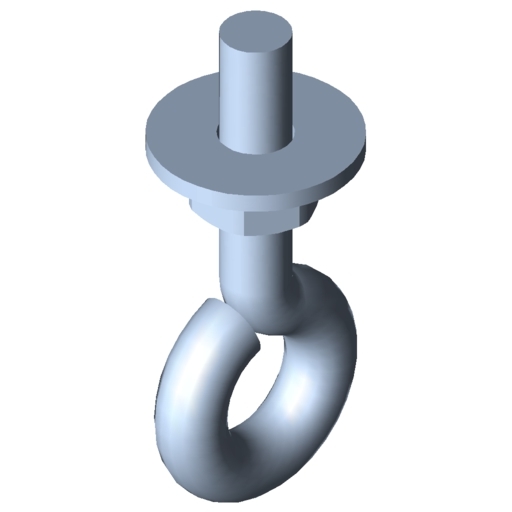

Ring Bolt D10 M6x25
1 Ring Bolt D10 M6x25, St, bright zinc-plated 1 washer, St, bright zinc-plated 1 hexagon nut DIN 934-M6-I8I, St, bright zinc-plated
Scope of Delivery
1 Ring Bolt D10 M6x25, St, bright zinc-plated 1 washer, St, bright zinc-plated 1 hexagon nut DIN 934-M6-I8I, St, bright zinc-plated
Properties
| Line | Line D30 |
|---|---|
| ESD-safe | Yes |
| Weight | m = 18 g |
| Delivery unit | 1 set |
| Material | St, bright zinc-plated |

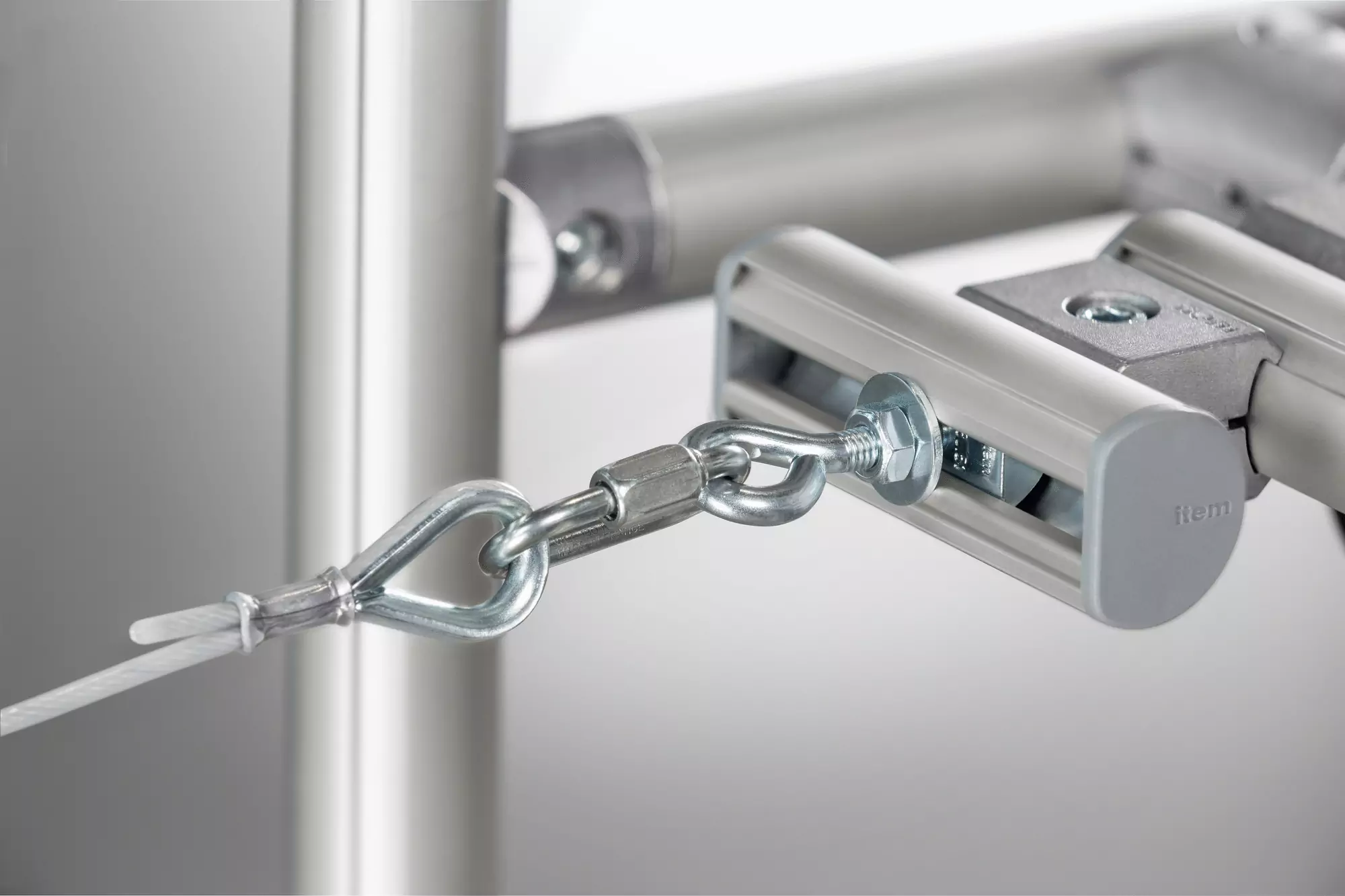

Thanks to its short thread, Ring Bolt D10 M6x25 can be fastened to a Line 6 or 8 groove using a T-Slot Nut. The closed loop offers a secure hold for steel and plastic cables as a means of installing carriages or counterweights in Karakuri/LCA applications.
