| Roller Conveyor Al, Fastening Bracket D30 with Stop H43 | CADPDFRFQ |
Preview

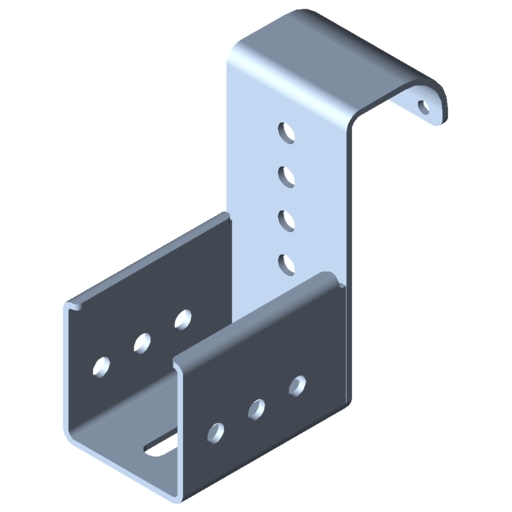

Roller Conveyor Al, Fastening Bracket D30 with Stop H43
Fastening Bracket, St, bright zinc-plated 2 Button-Head Screws, self-tapping 3.9×16, TX20, St, bright zinc-plated Hexagon Socket Head Cap Screw DIN 6912 M6x14, St, bright zinc-plated Washer ISO 7093-1-6-200 HV, St, bright zinc-plated T-Slot Nut 8 St M6, St, bright zinc-plated
Scope of Delivery
Fastening Bracket, St, bright zinc-plated 2 Button-Head Screws, self-tapping 3.9x16, TX20, St, bright zinc-plated Hexagon Socket Head Cap Screw DIN 6912 M6x14, St, bright zinc-plated Washer ISO 7093-1-6-200 HV, St, bright zinc-plated T-Slot Nut 8 St M6, St, bright zinc-plated
Properties
| Line | Line D30 |
|---|---|
| ESD-safe | Yes |
| Weight | m = 224 g |
| Delivery unit | 1 set |

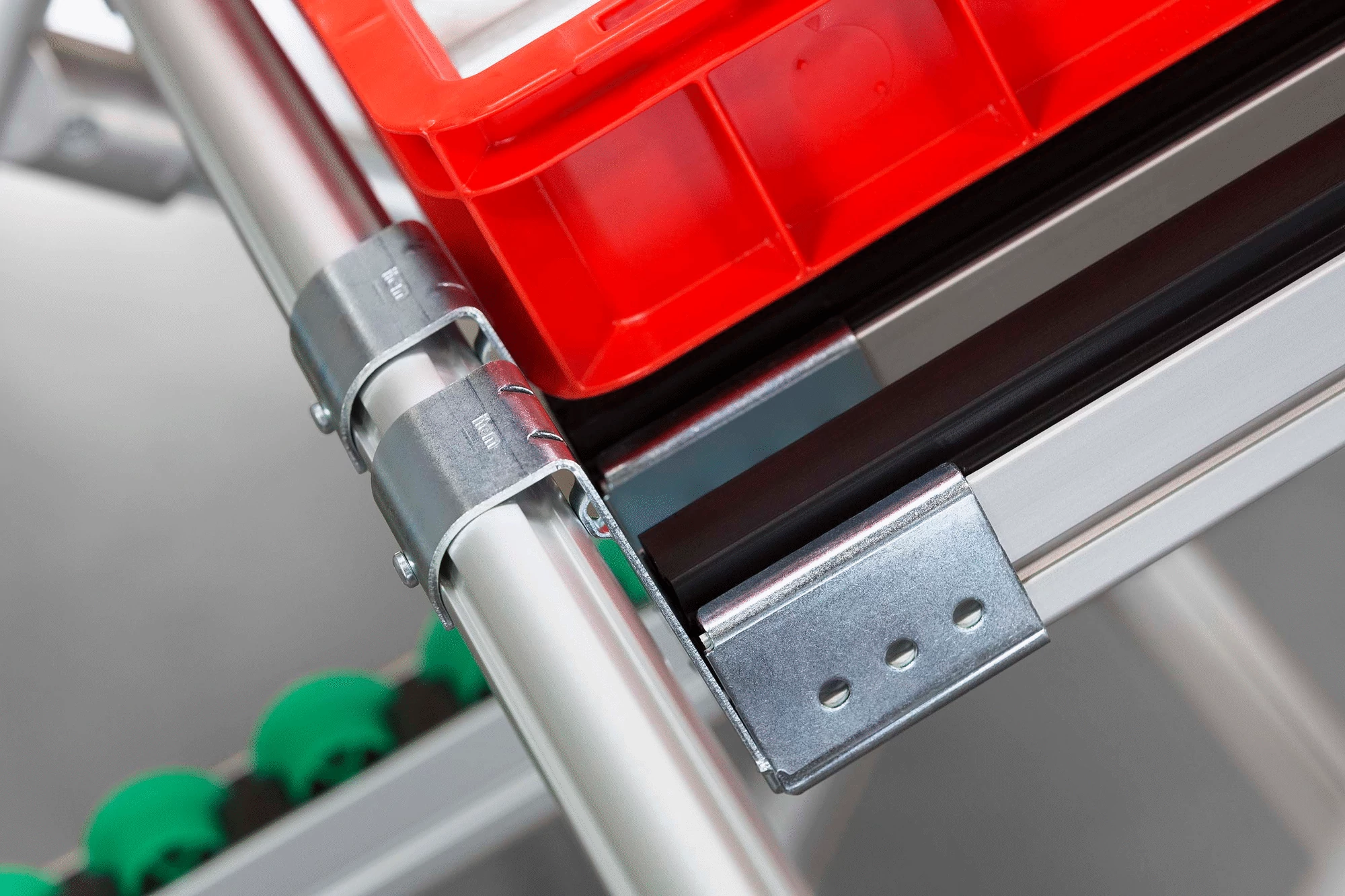

Roller Conveyor Al, Fastening Bracket with Stop H43 also forms the terminus at the end of the line. Together with the frame, the 43 mm-high stop ensures that containers and so on are brought safely to a stop. The design of Roller Conveyor Al, Fastening Bracket D30 with Forward Stop H43 supports short reaching distances because crates etc. come to a stop above the horizontal strut. This makes it even easier for operators to take crates off the conveyor line and thus offers an ergonomic advantage.
Installation dimensions Dimensions for Roller Conveyors St and Al when using Roller Conveyor D30 Fastening Brackets.
