| Adjustable Foot X 8 PA 40×40 | CADPDFRFQ |
Preview
Adjustable Foot X 8 PA 40×40

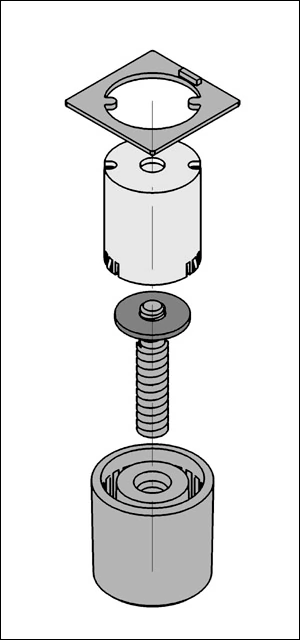

Housing, inner part and end plate, PA-GF, grey Spindle and washer, St, bright zinc-plated
Scope of Delivery
Housing, inner part and end plate, PA-GF, grey Spindle and washer, St, bright zinc-plated
Properties
| Line | line X |
|---|---|
| line 8 | line 8 |
| ESD-safe | No |
| Weight | m = 69 g |
| Force perm. | Fper. = 1500 N |
| Delivery unit | 1 pce. |

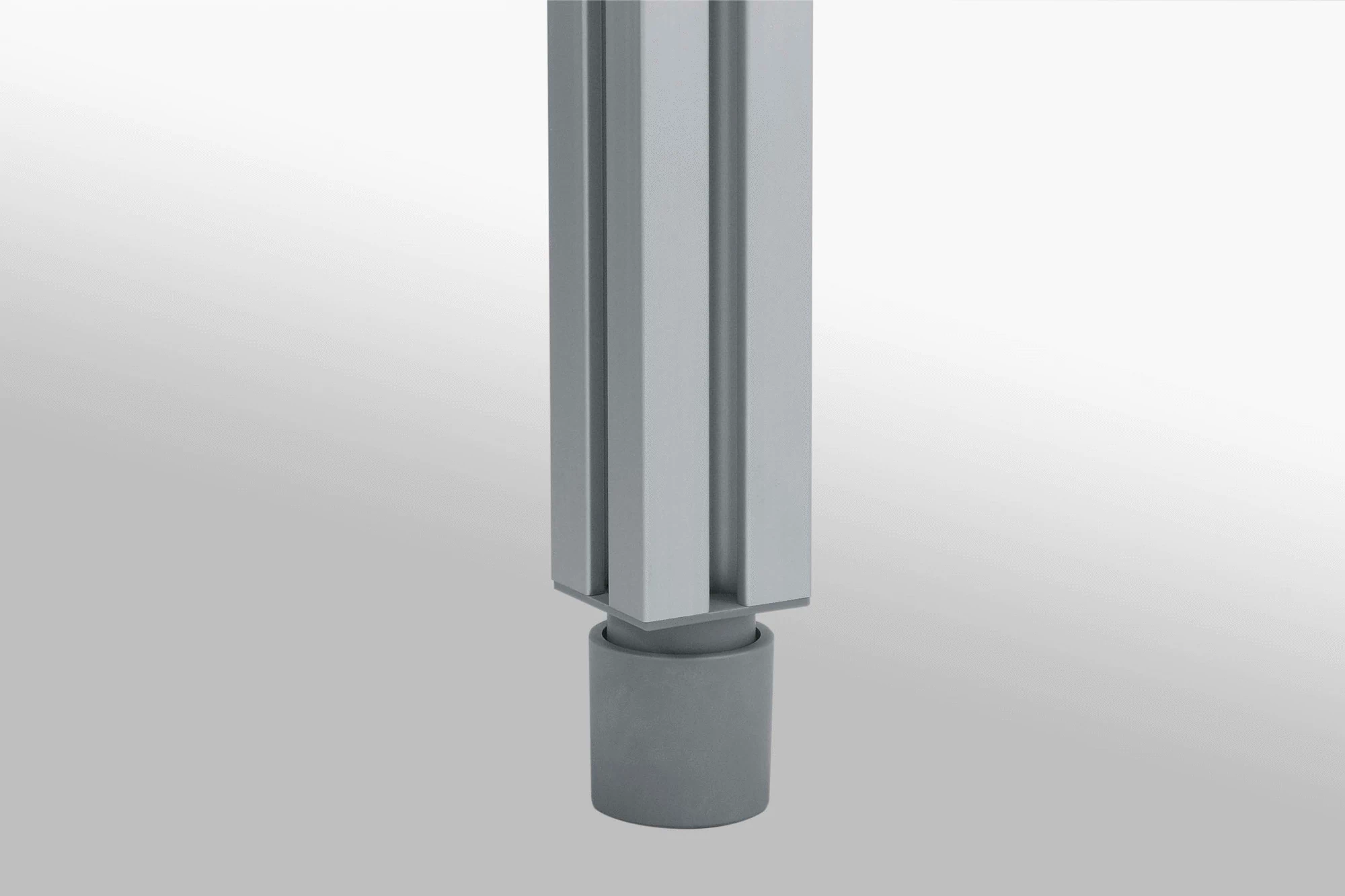

Adjustable Foot X 8 PA can be adjusted in height and is suitable for tables and light pieces of equipment. The height is adjusted without the use of tools simply by turning the lower part of the foot manually.

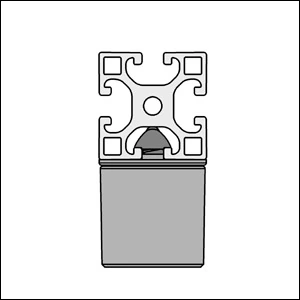

The spindle is screwed into an M8 thread in the profile’s core bore or a T-Slot Nut 8 St M8.

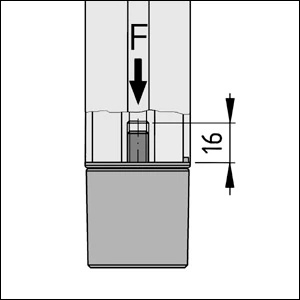

Fastening options to Profiles X 8. F per. = 1,500 N
