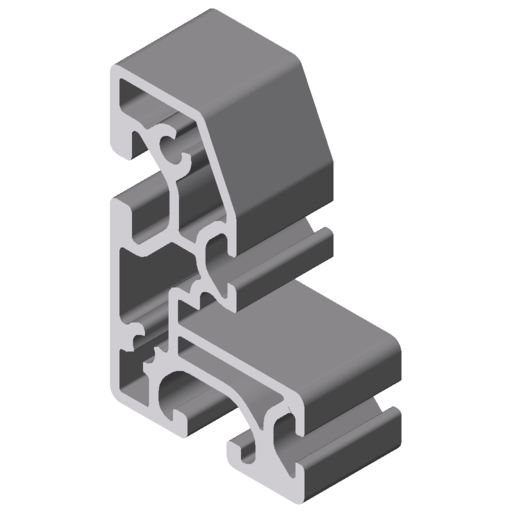

Frame Profile 8 60×40, natural

Configurated product data

Nothing generated yet

You must configurate your product below before requesting quote
Tootekood: 0.0.656.34 Kategooria: Silt:
Set CAD-format
0.0.656.34

Preview

Properties

LineWork Bench System
line 8line 8
ESD-safeYes
Weightm = 1.78 kg/m
Delivery unitcut-off max. 6000 mm
MaterialAl, anodized
Colournatural

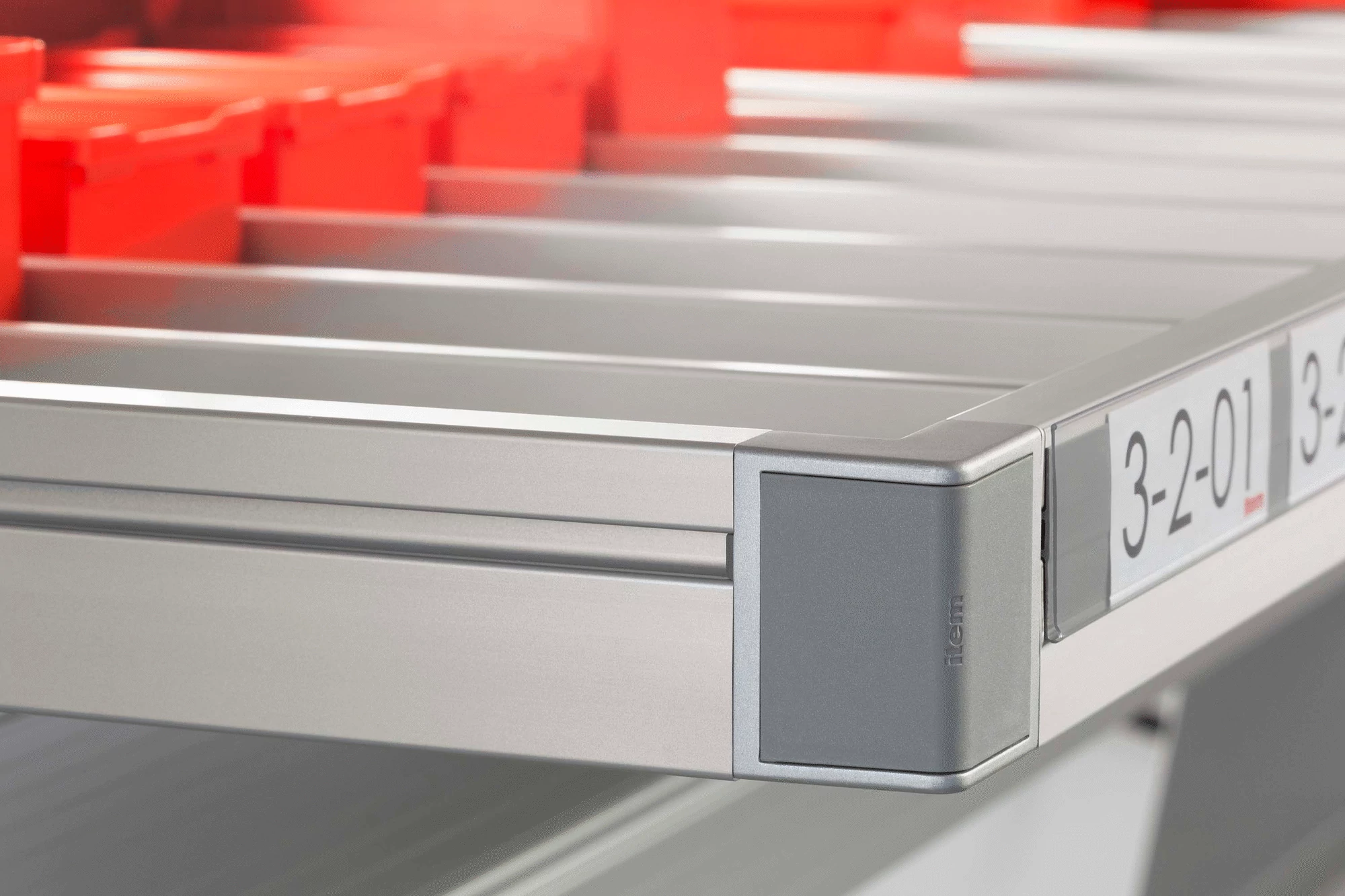

Frame Profiles are used as a basis for strong Trays and large picking/supply shelves. A range of designs can be created by combining profiles and fasteners. The edge can be dropped on one or two sides to make restocking operations easier and/or to create a defined lip at the removal side. Tray Stop Profile 8 50x10 (0.0.664.34) is used as a rebate for semi-open fronted boxes and Euro-format containers. The containers stick out over the profile so that parts can be seamlessly transferred to Grab Plate Profile 8 140x50 (0.0.664.17) or Grab Containers 8 105x130 (0.0.664.35). Thanks to their tall profile cross-section and the option of adding reinforcement under the tray surface, Frame Profiles 8 60x40 can accommodate large loads of up to 200 kg. When less space is needed, Frame Profiles 8 40x20 are ideal for creating smaller trays. Note: When ordering, please note the difference between Frame Profile 8 60x40 (edge at top) and Frame Profile 8 60x40 180° for implementing dropped edges. Either Corner-Fastening Set Frame 8 60x40 or Corner-Fastening Set Frame 8 60x40 180° should be selected depending on which design is required. item also supplies preassembled Trays in standard sizes and a range of designs.
s = Thickness of panel element L A / L B = Cut-off dimension of panel elements L PA / L PB = Cut-off dimension of Frame Profiles L NA / L NB = Usable surface
The Divider and Guide Profile and the relevant Connection Set are used to build dividing ribs in custom lengths.
L T = Length of Divider and Guide Profile L P = Length of profile
L T = Länge Trenn- und Führungsprofil L P = Länge Profil
Tray ESD A: The all-round edge securely holds in place articles such as large boxes and workpieces that are not required as often.
Tray 1x180° ESD A: The lowered edge at the rear makes it easier to restock the Tray. The edge at the front serves as a rebate.
Tray 2x180° ESD A : Two dropped edges produce a stable level surface on which the picking of small parts can be ergonomically optimised by using Tray Stop Profile or Grab Plate Profile combined with Grab Containers 8 105x130.
