Drilling Jig 8 80, T-Slot Opening
St, black Drill bushes, St, hardened and polished Longitudinal limit stop and clamp fitting
Scope of Delivery
St, black Drill bushes, St, hardened and polished Longitudinal limit stop and clamp fitting
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 1.11 kg |
| Delivery unit | 1 pce. |
| Material | St, black |

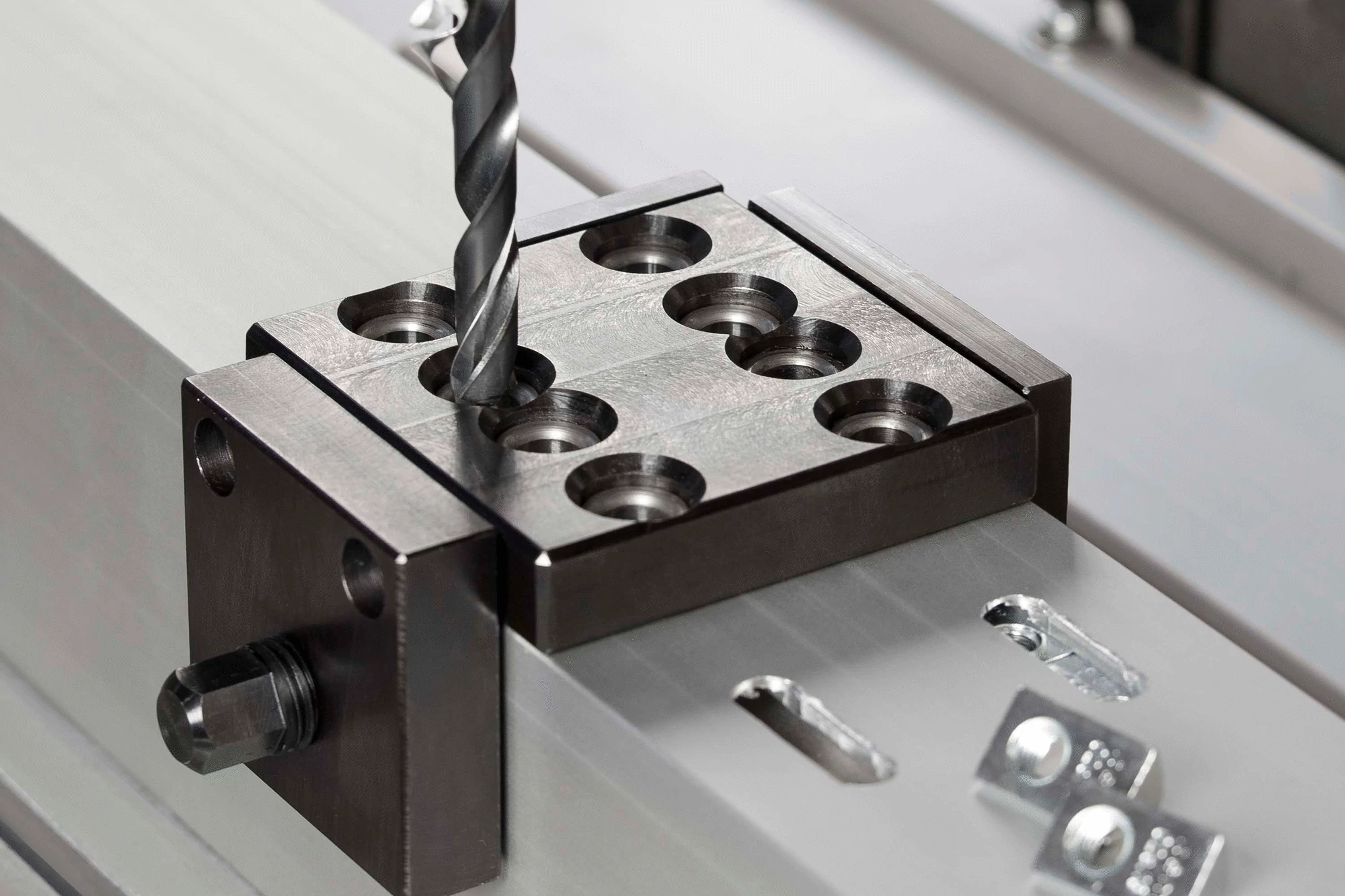

The task: Cutting holes or slots into the closed profile grooves of a Profile 8 or Profile X 8 – in precisely the right position and dimensions for deploying a T-Slot Nut 8 or other fastener. The solution: The Drilling Jig for opening up grooves, which is fastened to the outside of the profile and incorporates hardened drill bushes for high-precision drill guidance. Simple to use with reliable results!
