Proximity Switch 8 – 1NC
Inductive Proximity Switch, positive switching Casing Al, anodized, natural Fixing mechanism, fixing screws Voltage = 10…30 V DC Switching current max = 150 mA Sensing range = 2 mm Cable, grey l = 3 m ; d = 3 mm
Tootekood: 0.0.600.05
Kategooriad: Proximity switches, Proximity switches, Proximity switches
Silt: Static
Scope of Delivery
Inductive Proximity Switch, positive switching Casing Al, anodized, natural Fixing mechanism, fixing screws Voltage = 10…30 V DC Switching current max = 150 mA Sensing range = 2 mm Cable, grey l = 3 m ; d = 3 mm
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 51 g |
| Delivery unit | 1 pce. |

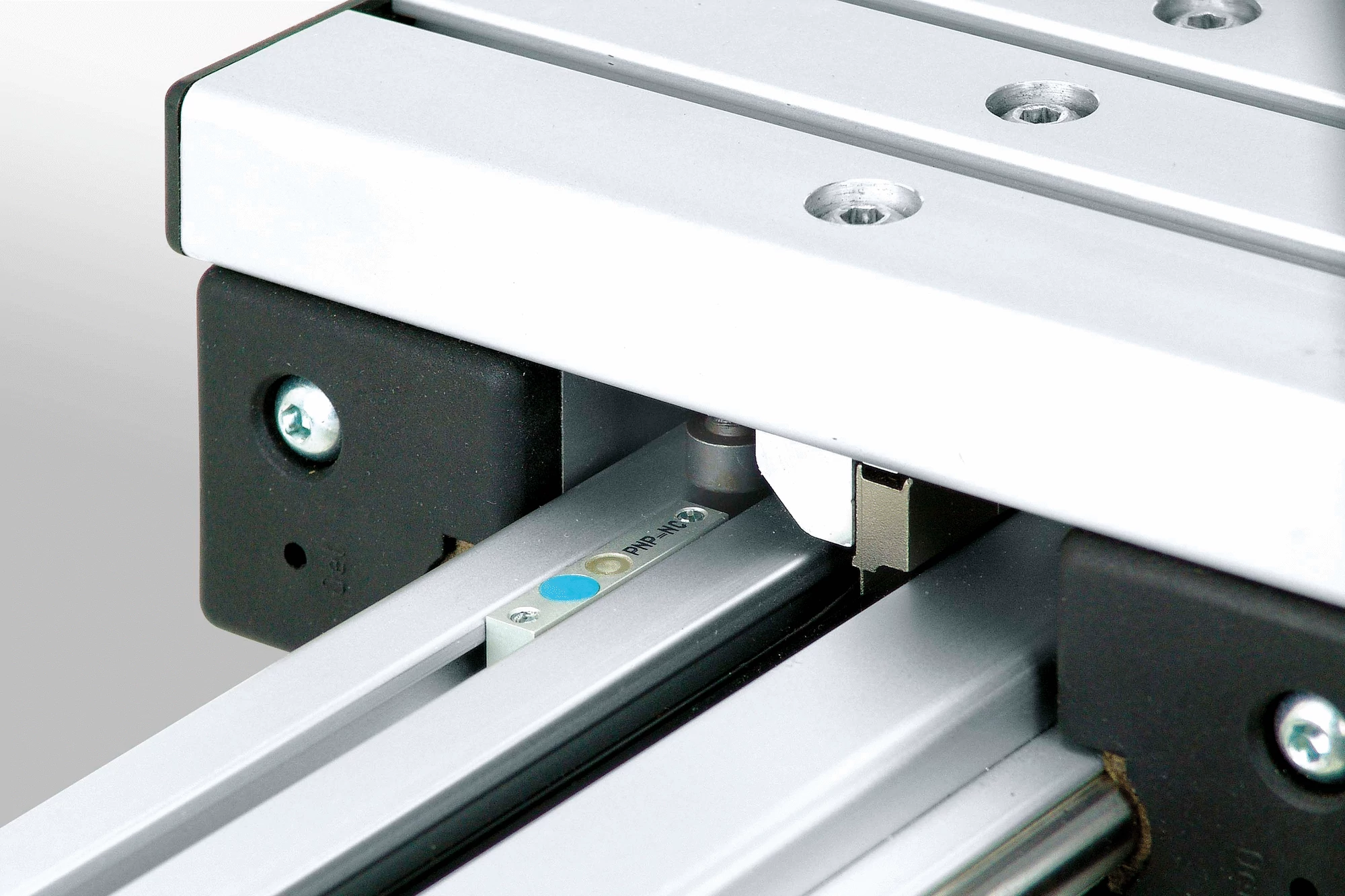

Proximity Switch for integration in the grooves of Profiles 8 for limiting the terminal position or as reference on linear units. The Proximity Switch can be retrofitted at any point in the groove and can be secured in position from above.
