Profile M 30x3 E, natural
Konfigureeritud tooteandmed
Midagi ei ole veel genereeritud
Enne hinnapakkumise taotlemist peate oma toote allpool konfigureerima.Properties
| ESD-safe | Jah |
|---|---|
| Ristlõike pindala | A = 0,89 cm2 |
| Inertsmoment, väändemoment | It = 0.02 cm4 |
| Inertsmoment, x-telg | Ix = 0,65 cm4 |
| Inertsmoment, y-telg | Iy = 0,01 cm4 |
| Kaal | m = 0.24 kg/m |
| Delivery unit | cut-off max. 2000 mm |
| Materjal | Al, anodeeritud |
| Colour | looduslik |
| Takistusmoment, x-telg | Wx = 0.44 cm3 |

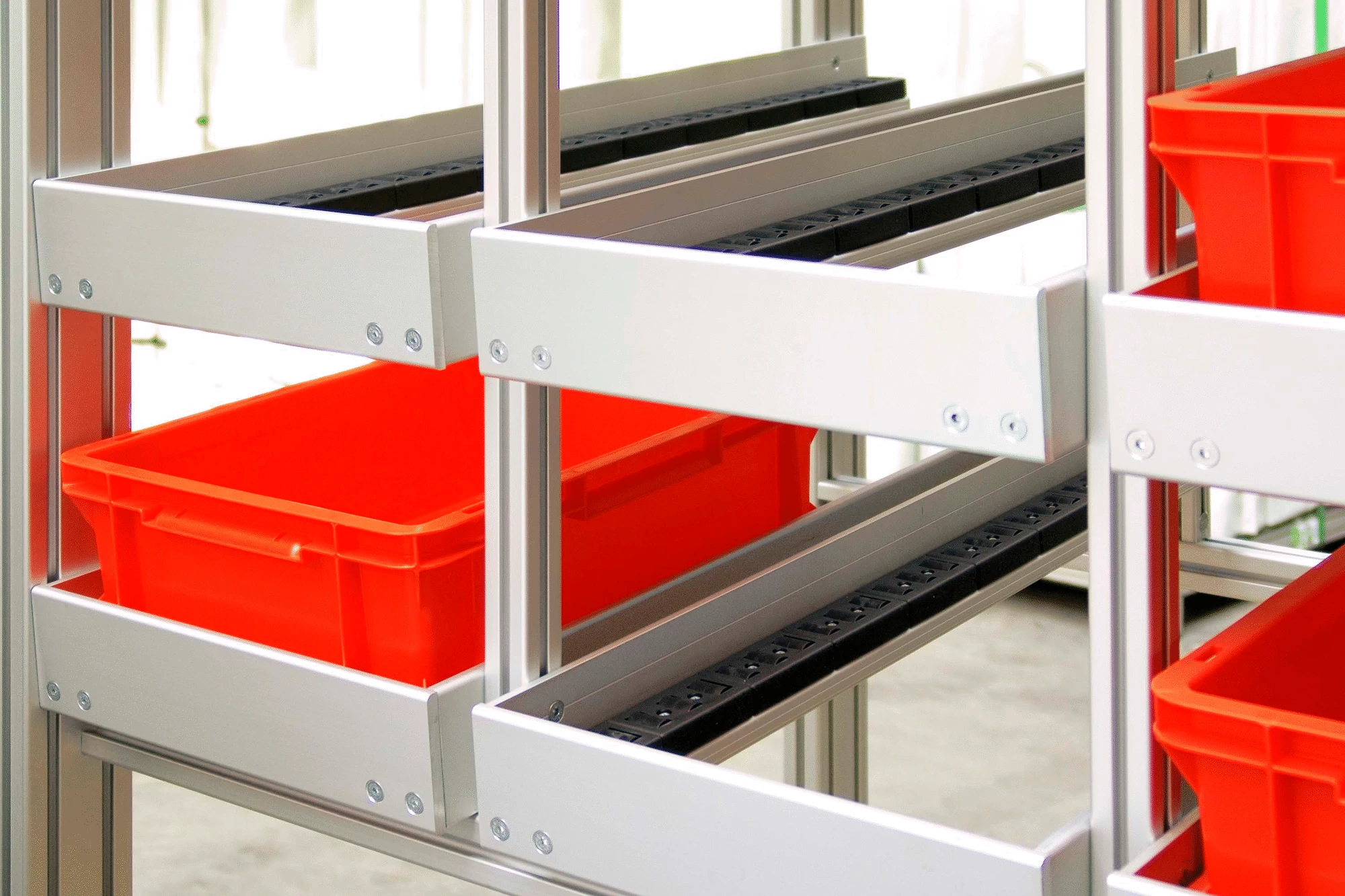

It is often necessary to make brackets and plates, suitably processed, in order to mount proprietary components onto a profile construction. Can be used as a grip rail or edging and for stabilising panel elements.
Angled and flat profiles in the modular dimensions of Line 6 can be used for a variety of applications, e.g. for brackets, for edging panel elements, as a terminating strip or support strip, as a special construction without profile grooves or as a guide strip etc.
